VIGOR 1V6173SA Air Spring Bellows Without Piston for Truck Suspension

The VIGOR 1V6173SA is an air spring bellows supplied with an upper plate and air connection for commercial vehicle suspension applications. This SA version is supplied without a piston, and the lower opening remains visible in the product views so buyers can review the part exactly as supplied.

For an accurate enquiry, please send the complete original part number, photos of the old unit and the configuration you require. Our team reviews these details before confirming a quotation.

When comparing a replacement, check the upper plate, air connection and open lower end as well as the available installation space. This product is a component version rather than the complete 1V6173 assembly. A reference associated with a complete assembly should not automatically be treated as a reference for this bellows alone. Customer requirements and existing mounting parts must be checked together, especially where the piston is retained separately or the vehicle uses another configuration.

The dimension view is taken from drawing 1261730009 for the Vigor 1V6173SA version. It shows a 262 mm top plate, an M22×1.5 upper connection and a lower opening of 130.8 ± 0.4 mm. The drawing also marks the unassembled height as 488.5 mm with a +0/−10 mm tolerance.

Please use the drawing as an identification aid and confirm all relevant dimensions and configuration for your application. The image is a dimension excerpt; the current controlled version and final supply specification require confirmation.

• Please include order quantity, destination port and any marking requirements in your enquiry.
• Indicative FOB price is USD 35 per piece, subject to confirmation for the final order and configuration.
• Standard packing is by export carton.
• The stated annual capacity is a company-wide figure.

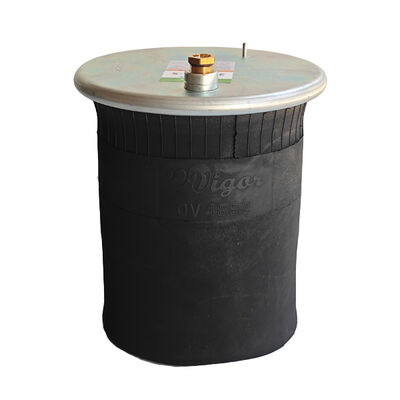

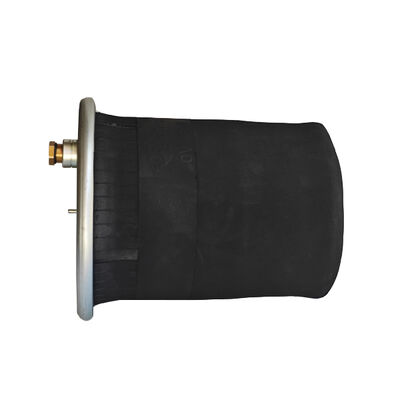

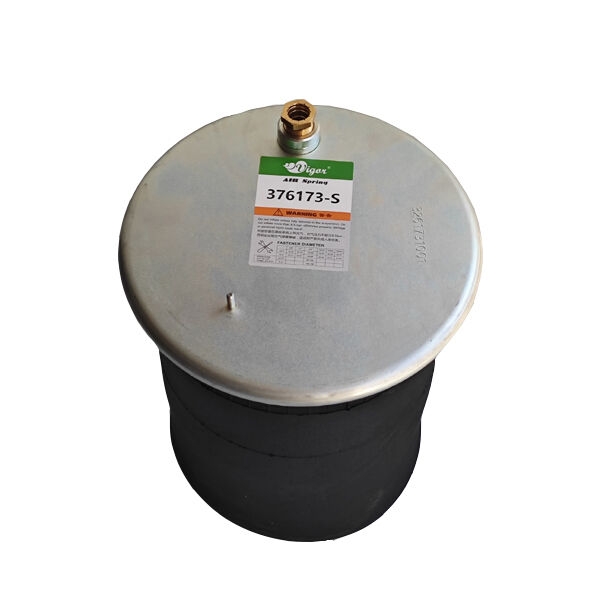

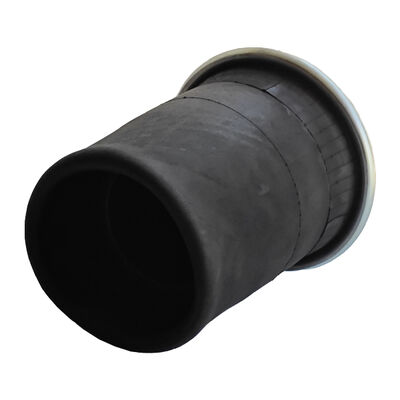

The product views and dimension excerpt below are provided to help buyers identify this version and communicate their requirements clearly.
