1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1

Large Image : 1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1

Product Details:

Place of Origin:	China
Brand Name:	Yiconton
Certification:	IATF16949
Model Number:	1V 6032

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 6032 Truck Air Spring Suitable for Firestone W01-358-9875/Goodyear 1R12-432/Navistar 3541731C1

Description

OE Number:	W01-358-9875,1T15MT-9,1R12-432,566-24-3-066,566-24-7-236,3541731C1,AS9900	Type:	Truck Air Spring
Condition:	New	Gross Weight:	6.973 Kg
Net Weight:	6.4 Kg	Packing Size:	282736cm
Outer Diameter:	φ255	Natural Height:	634mm
Maximum Height:	580mm	Minimum Height:	170mm
Sealing Configuration:	Press-fit Cover Plate + Flange	Piston Material:	Plastic
Highlight:	1V 6032 truck air spring with warranty , Firestone W01-358-9875 compatible air spring , Goodyear 1R12-432 replacement truck air spring

1V 6032 Truck Air Spring

High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers including Firestone W01-358-9875 1T15MT-9/Goodyear 1R12-432/Navistar 3541731C1

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9875	W013589875 / W01-3589875 / W01 358 9875
Firestone	1T15MT-9	1T15MT9 / 1T15MT-9 / 1T15 MT 9
Goodyear	1R12-432	1R12432 / 1R12 432 / :1R12432
Goodyear	566-24-3-066	566243066 / 566 24 3 066 / :566243066
Goodyear	566-24-7-236	566247236 / 566 24 7 236 / :566247236
Navistar	3541731C1	:3541731C1
Dallas	AS9900	:AS9900

Technical Specifications

Specifications	Parameters
Extended Height	600mm
Compressed Height	200mm
Top Plate Width	231mm
Piston Width	255mm
Weight	6.973 kg
Package Dimensions	282736cm

Product Information

Brand Name: Yiconton
Model Number: 1V 6032
OEM: W01-358-9875, 1T15MT-9, 1R12-432, 566-24-3-066, 566-24-7-236, 3541731C1, AS9900
Certification: IATF16949
Minimum Order Quantity: 50 pieces

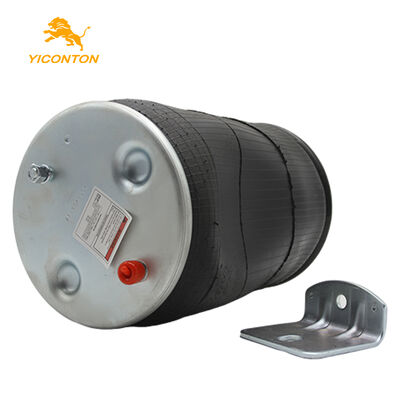

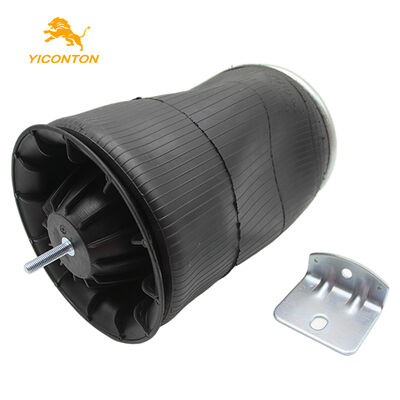

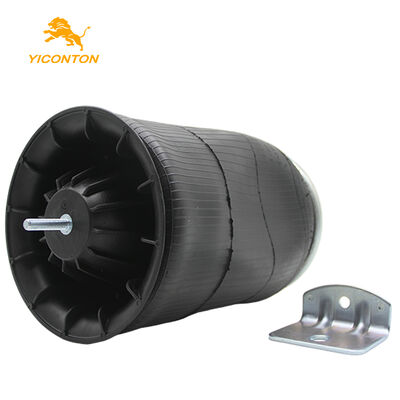

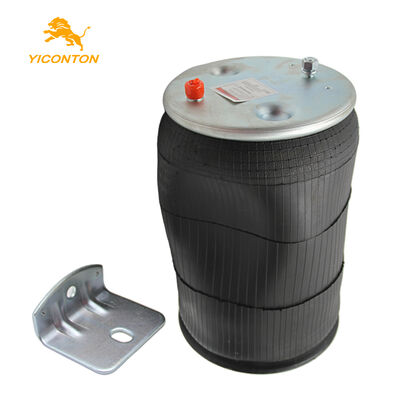

Product Images

Images shown are for reference only. Actual product may vary slightly.
