VIGOR 1V4561 Truck Air Spring with Metal Piston - 4561 NP 02 Reference

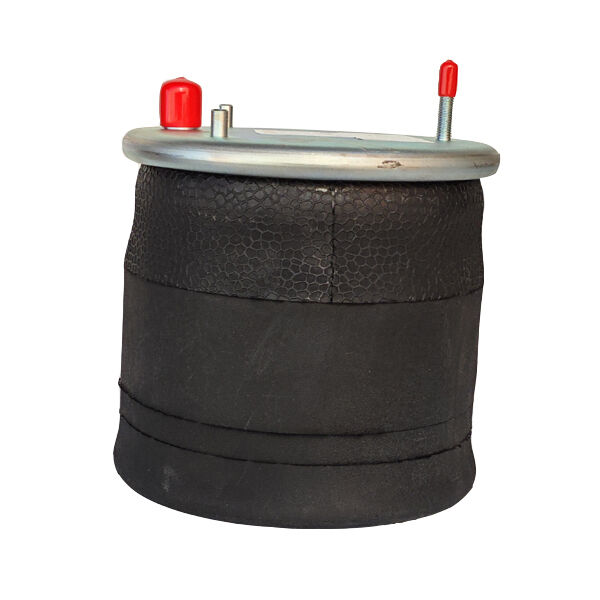

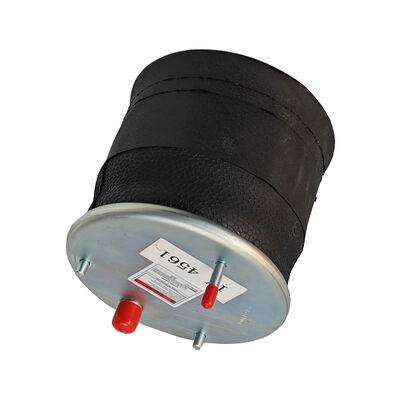

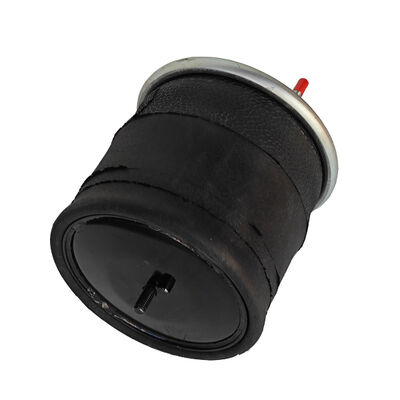

The VIGOR 1V4561 is a commercial vehicle air spring assembly built with a rubber bellows, an upper plate and a metal piston. The product photographs below show the top connection, side profile and lower mounting area, while the included dimension drawing allows purchasing teams to compare the shape and installation points with the unit being replaced.

When ordering, please provide the original part number, clear photographs of the existing unit and details of its vehicle application so that the correct configuration can be confirmed.

Our catalogue lists the following cross-reference numbers for the 1V4561 air spring:

• ContiTech 4561 NP 02
• Volvo 22058738
• Volvo 21224746
• Granning 92622
• SAMPA SP 554561-K02
• Prime-Ride 1R11-949

These numbers are provided as catalogue search references only. Vehicle specification, mounting arrangement and component configuration must be verified before ordering; a reference number alone does not establish interchangeability. Please send a drawing or clear top and bottom photographs when a match needs to be checked.

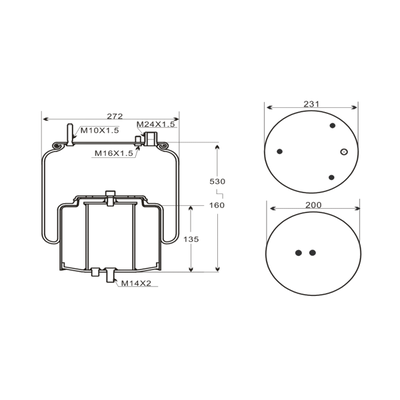

The supplied drawing indicates an upper plate diameter of 231 mm and a piston diameter of 200 mm. The bellows width is marked at 272 mm. Threaded connections are shown as M10×1.5, M24×1.5 and M16×1.5 at the upper connection, and M14×2 at the lower mounting.

Dimensions on a drawing should always be reviewed together with the actual assembly and its operating position. Different customer versions may carry different markings or details, so our team can help verify the required configuration before an order is confirmed.

To request a quotation, please share the required quantity, destination port, branding requirements and any relevant part references. Our team will review the requested configuration and provide the applicable commercial details.

• Products are packed in export cartons; packing arrangements can be discussed with your order.
• Indicative price is USD 35 per piece FOB, subject to order requirements and confirmation.
• Stated annual supply capacity is a company-wide figure.

The following product views and drawing are intended to help identify the 1V4561 air spring before purchase.
