VIGOR 1V0768 Rubber Air Spring Assembly with Metal Piston for Commercial Vehicles

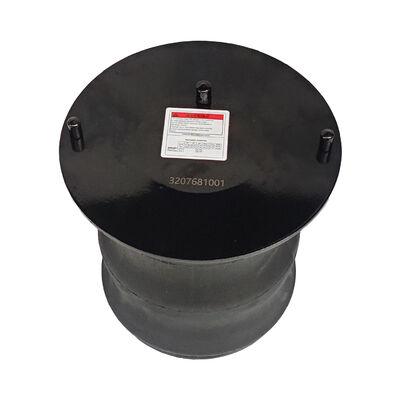

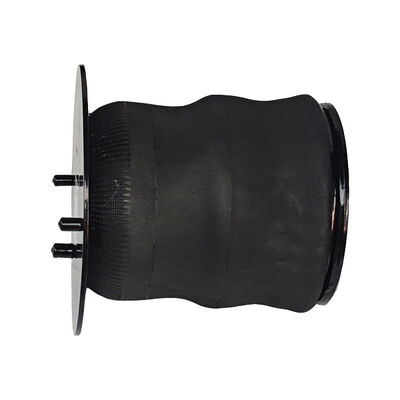

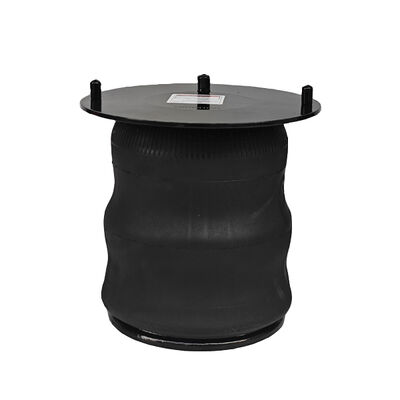

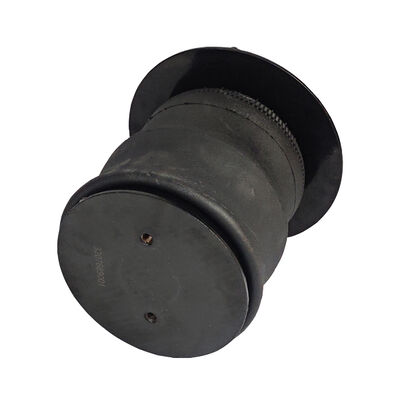

The VIGOR 1V0768 combines a contoured rubber bellows with a round metal top plate and a lower piston. The side view shows the changing bellows profile, while the upper and underside photographs help identify the fixing arrangement. This listing covers the air spring assembly shown in the original photographs. The full model designation, including its leading zero, should be retained when discussing the required configuration or confirming an order.

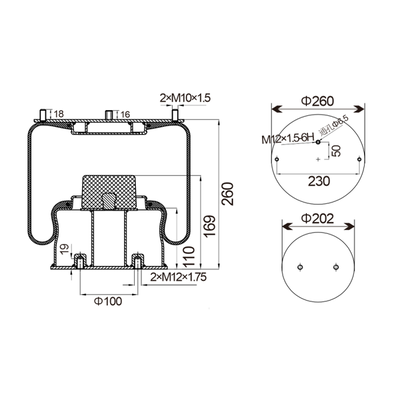

The supplied drawing identifies a 260 mm top plate and a 202 mm lower piston diameter. It also shows two upper fixing studs and two lower threaded mounting positions. These details provide a practical starting point for comparing the offered assembly with an existing suspension component. Check the air connection position, mounting orientation and available installation space at the same time. Dimensions from a different air spring should not be carried over simply because the bellows appears similar in a catalogue photograph.

A useful enquiry includes the 1V0768 designation, quantity, vehicle application and close photographs of the removed upper and lower mounting arrangements. Where available, include the existing manufacturer label or drawing reference. Confirm the required bolts, nuts and other loose hardware in the order specification rather than assuming that every pictured or installation component is supplied. The product and its connection requirements should be reviewed as a complete assembly. If the existing part has a different mounting pattern, provide that information before selecting the replacement.

The indicative FOB price is approximately USD 35 per piece, with a minimum order quantity of 10 pieces and payment by T/T. A planning lead time of 30 days applies after order and configuration confirmation. Packing is by export carton, with the final arrangement confirmed for the shipment. YITAO company production capacity is 3 million pieces per year across its product range. Warranty is 14 months from shipment date. Send the required configuration and quantity for a final quotation and agreed delivery details.

Photographs show the original 1V0768 assembly. Confirm mounting pattern, air connection position and supplied hardware before ordering.
