VIGOR 1V0758 Commercial Vehicle Air Spring with Upper Bracket and Metal Piston

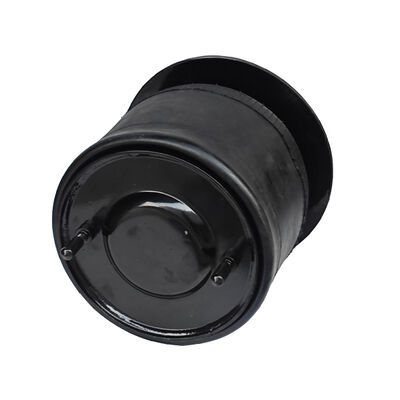

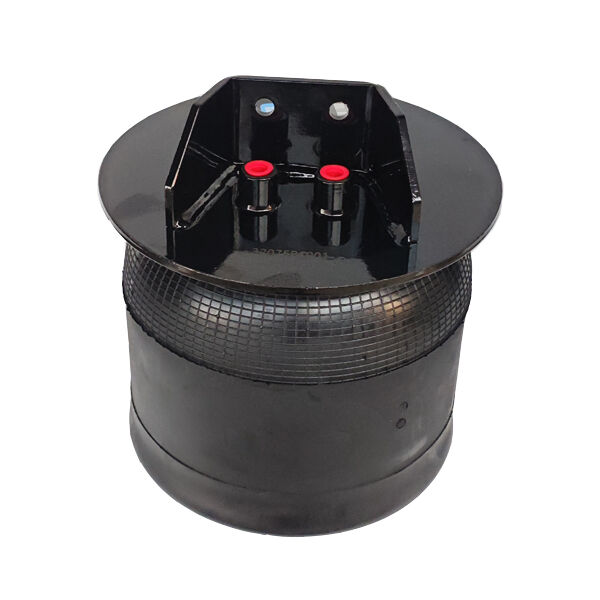

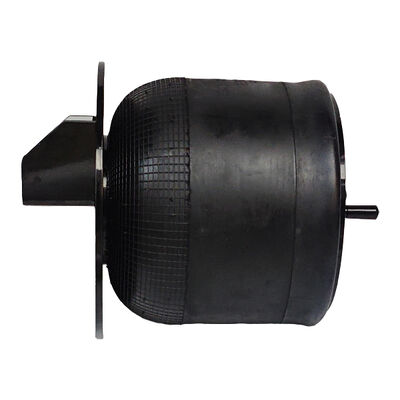

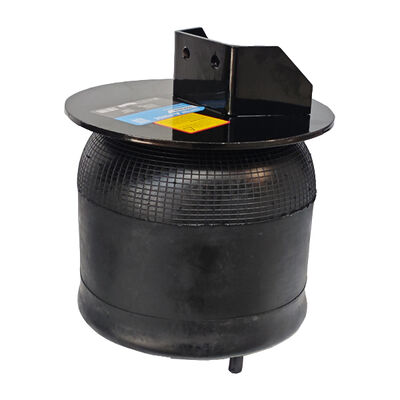

The VIGOR 1V0758 air spring is a commercial vehicle suspension assembly featuring a circular top plate, a raised upper mounting bracket and a metal lower piston. Its bracketed upper arrangement is a key identification feature when comparing the product against an existing installation. Original photographs show the assembly upright, from the side and from the piston underside. Buyers should retain the leading zero in 1V0758 when preparing an enquiry or purchase specification.

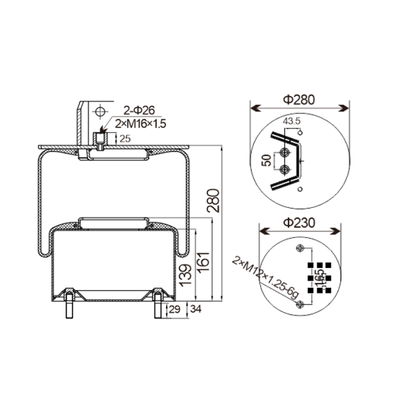

The supplied drawing shows a 280 mm top plate and a lower piston with two fixing studs. Two upper air connection positions are also visible in the product photographs. These features should be checked together with the bracket orientation and mounting clearances. A matching rubber profile alone is not sufficient to select the correct assembly. Compare the fixing pattern with the removed component and confirm the required connection specification before placing an order. The full model designation helps distinguish this item from other bracketed air springs.

For a configuration review, send clear views of the existing upper bracket and lower mounting points, plus any reference label on the removed part. State the vehicle application, required quantity and whether additional mounting hardware is needed. The bracket and piston arrangement should be included in the agreed supply specification. If an OE or other manufacturer reference is supplied, it can be checked alongside the installation photographs. A number from a related model should not replace the full identification of this offered version.

• Indicative price: approximately USD 35 per piece on an FOB basis.
• Minimum order quantity: 10 pieces.
• Payment terms: T/T.
• Planning lead time: 30 days after order and configuration confirmation.
• Export carton packing available, with packing details agreed for the order.
• YITAO production capacity: 3 million pieces annually across its product range.
• Warranty: 14 months from shipment date.

Final pricing depends on the selected configuration, quantity and agreed supply contents.
