VIGOR 1V8721 Truck Air Spring W01-M58-8721 1R12-711 Reference

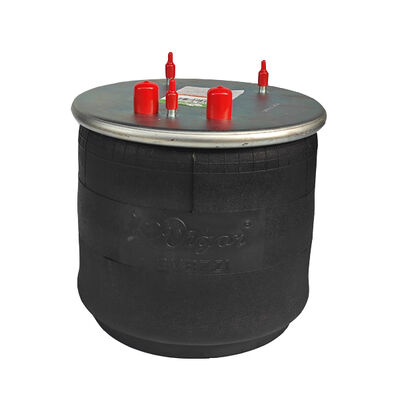

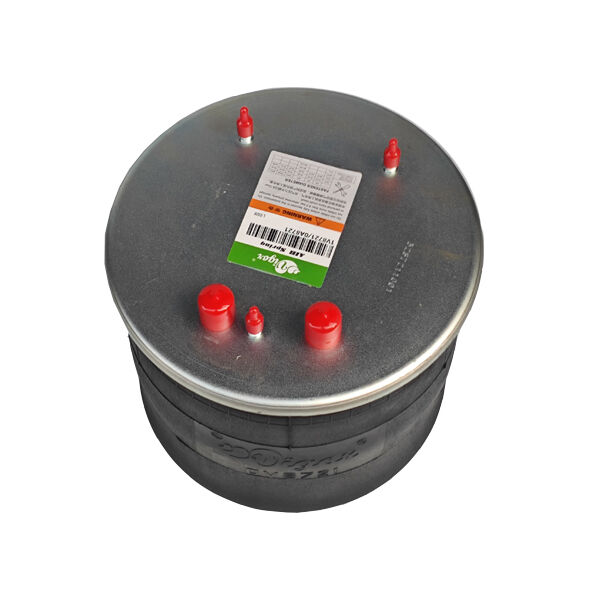

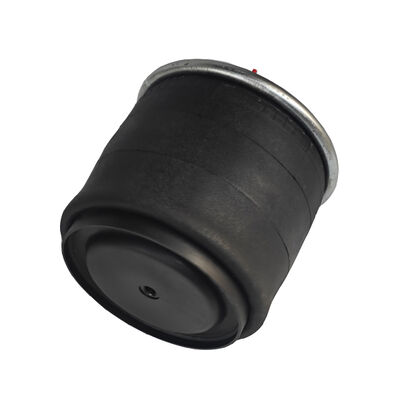

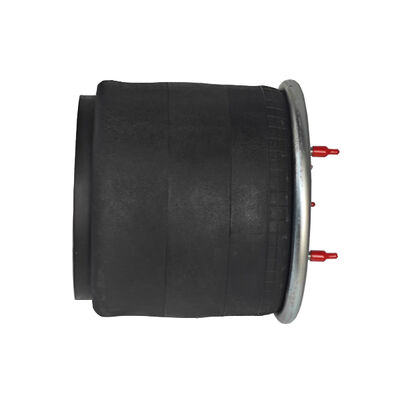

The VIGOR 1V8721 air spring is supplied as a complete assembly consisting of a rubber rolling bellows, a metal top plate and a metal piston. The upper plate features several fixing points and two air connection positions, while the underside view shows the lower attachment. This configuration is intended for commercial vehicle air suspension enquiries where the buyer needs to identify both the mounting pattern and the complete supply form. The photographs below show the actual product from four different angles.

YITAO catalogue references for this model include Firestone W01-M58-8721, Goodyear 1R12-711 and ContiTech 836M2K1. Additional catalogue references include Phoenix 1DF25-13, Taurus KR721-03, Dunlop FR D13B31 and Airtech 3836-02K. These numbers assist with product identification and enquiry matching. They remain catalogue references rather than confirmation that every installation, piston version or air connection is interchangeable. Keep the complete brand reference, including its letters and suffix, when requesting a quotation.

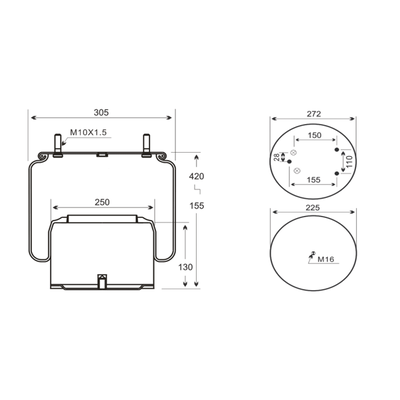

Before ordering, compare the removed air spring with the top plate, side profile and piston underside shown below. Check the mounting points, air line positions, lower connection and required supply contents. An enquiry can include the existing reference label, vehicle application and a drawing or clear installation photographs. State whether any mounting bolts or other hardware are required. Where two products share a bellows family or a similar number, the complete assembly configuration should still be checked against the intended installation.

The indicative FOB price is approximately USD 35 per piece, with a minimum order quantity of 10 pieces and payment by T/T. A planning delivery time of 30 days applies after order and configuration confirmation. Packing is by export carton, with the final packing arrangement agreed for the order. The company production capacity is 3 million pieces per year across its product range. Warranty is 14 months from shipment date. Please confirm the quantity and selected configuration for a final commercial offer.
