VIGOR 1V6047-1 Truck Air Spring with Metal Piston and Offset Top Connections

The VIGOR 1V6047-1 is a rolling lobe air spring assembly engineered for commercial vehicle suspension applications. The assembly consists of a rubber bellows, a circular metal top plate and a metal lower piston, as shown in the original product photographs. The -1 suffix identifies this specific offered version and must be retained on purchase enquiries, sample requests and order confirmations. Buyers comparing this item with a standard 1V6047 should verify the top connection arrangement against the required mounting position before selecting a replacement.

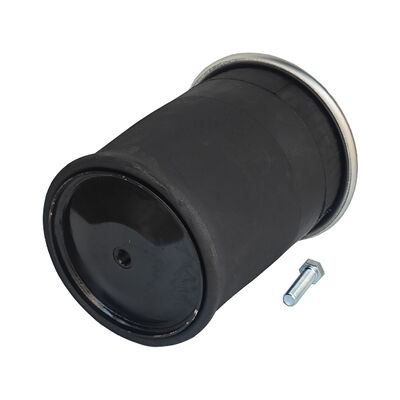

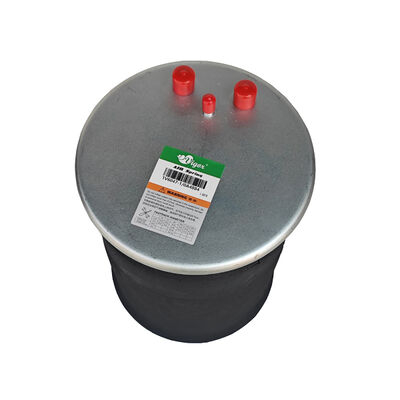

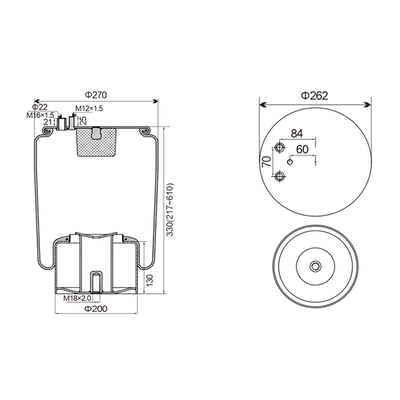

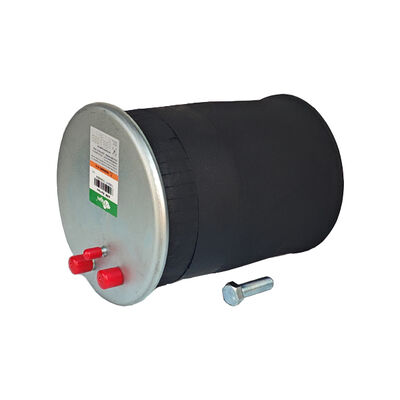

The supplied drawing specifies a top plate diameter of 262 mm and shows an offset arrangement of the upper connections. Product photographs include an upright view, a closer view of the top plate and a view of the piston underside. These views help buyers identify the top fittings and lower attachment without relying on a single catalogue image.

Confirm the thread specification, air line connection and mounting orientation against the actual vehicle installation. The model number alone does not guarantee a match with every air spring in the same product family.

If a vehicle manufacturer reference is available, include it with the enquiry so the specific version can be checked. Mounting hardware and any additional bracket should be agreed in the order specification. References for a different suffix should be reviewed separately rather than treated as an automatic substitute.

• Indicative offer: approximately USD 35 per piece on an FOB basis.
• Minimum order quantity: 10 pieces.
• Standard planning lead time: 30 days after order and configuration confirmation.
• Payment terms: T/T.
• Export carton packing available, subject to the confirmed order.
• YITAO company production capacity: 3 million pieces annually (company-wide figure).
• Warranty: 14 months from shipment date.

Final pricing and supply details follow the confirmed version and quantity.
