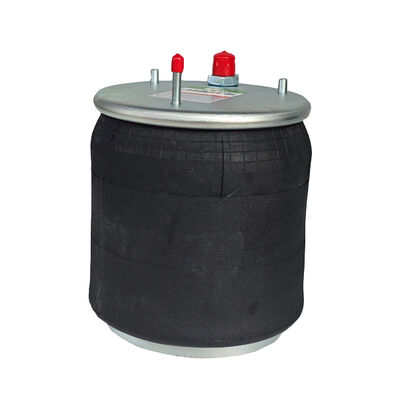

Steel Piston Truck Air Spring for Volvo 21224745 / 22058737 - 1V4560

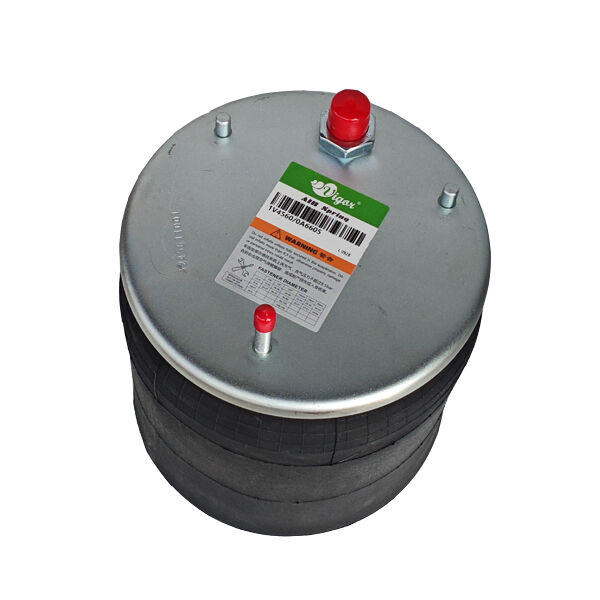

A shared bellows code does not identify a complete suspension assembly. Other products can use 0A6605 while carrying a different upper plate, piston or mounting arrangement. When replacing a worn unit, start with the vehicle OE marking, then compare the upper connections and the lower attachment. Keep the full 4560 NP 03 suffix in the enquiry so that a nearby catalogue number is not substituted during purchasing.

The catalogue records a bellows diameter of 245 mm and an unloaded natural height of 588 mm. These are identification dimensions, not an instruction to set the suspension at that height. Installation height, mounting torque and operating pressure must follow the approved drawing and the vehicle service procedure. No vehicle axle position is assumed from the product photograph alone.

For distributor stock enquiries, send the quantity, destination port and photographs of the removed part. Please include any connection or bracket differences visible on the vehicle. We can then confirm the ordered configuration and packing against the drawing rather than relying on an approximate visual match.

• Price is negotiable on an FOB basis.
• Minimum order quantity is 10 pieces.
• Standard dispatch lead time is 30 days.
• Payment is by T/T under the agreed quotation.
• Total production capacity is 3,000,000 pieces per year, with model allocation confirmed per order.

Brand names and cross references identify replacement applications; they do not mean this item is an original Volvo or ContiTech branded product.
