1V5868 Mercedes-Benz Air Spring A9423200117 | 4757NP01

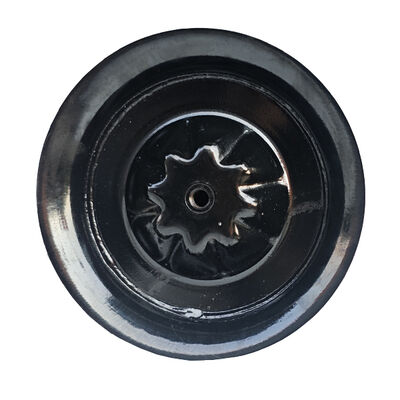

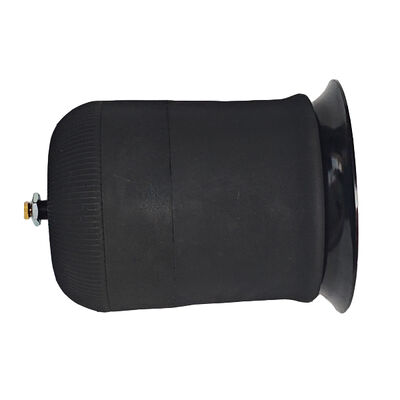

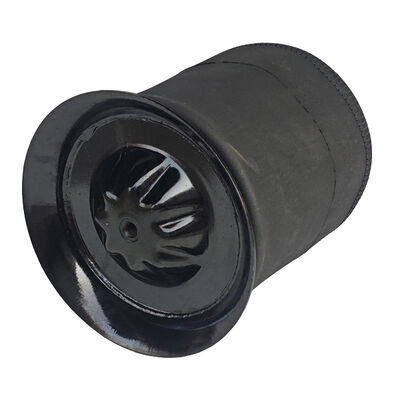

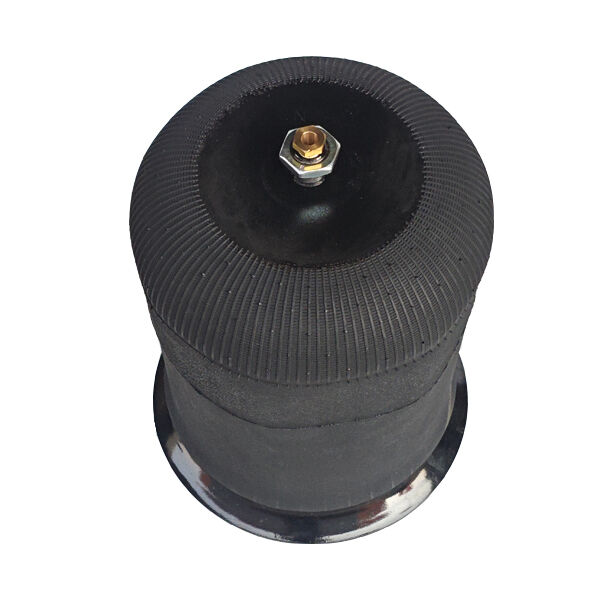

The 1V5868 is a steel-piston air spring identified by Mercedes-Benz reference A9423200117 in the YITAO catalogue. It uses bellows 0A4757-1 and is cross referenced to ContiTech 4757NP01. This distinction is especially useful when a customer searches only for a short 4757 marking: the full bellows suffix and assembly reference must be matched. The actual photographs show the upper connection, side profile and lower steel piston rather than a generic illustration.

For a workshop or distributor enquiry, compare the original central connection and the complete lower piston shape. Do not replace the NP01 suffix with NP02 in a stock description without checking the drawing. Although the catalogue diameter is 260 mm and natural height is 600 mm, similar dimensions alone do not prove that two assemblies use the same mounts. Record the original OE number and any supplier part number together so that future repeat orders can be checked against the approved sample.

For a quotation, provide the model, required quantity and destination port. The indicative price is approximately USD 35 per piece, FOB, with a minimum order of 10 pieces and a standard lead time of 30 days. Final price is confirmed in the quotation. Company total annual production capacity is 3,000,000 pieces; allocation for this specific model is confirmed against the order schedule. Payment method is T/T, with the detailed terms agreed in the quotation. Export carton packing is specified below. Warranty is 14 months from the bill of lading date.

• Indicative price: approximately USD 35 per piece, FOB
• Minimum order quantity: 10 pieces
• Standard lead time: 30 days
• Payment method: T/T, detailed terms agreed in quotation
• Warranty: 14 months from bill of lading date
• Packaging dimensions: 28.5 x 28 x 36 cm (final carton details confirmed for the order)

Supply and installation should follow the approved technical drawing and the vehicle suspension manufacturer instructions.
