Product Details:
Place of Origin: China
Brand Name: Vigor / YITAO
Model Number: 1V6027

1V6027 Truck Air Spring for Volvo 1076594 1076595 | W01-M58-9760 4713NP02

Description
Material: Rubber Bellows With Metal Plates And Steel Piston
Highlight:

Truck Air Spring for Volvo

,

1V6027 Truck Air Spring

,

Truck Air Spring 4713NP02

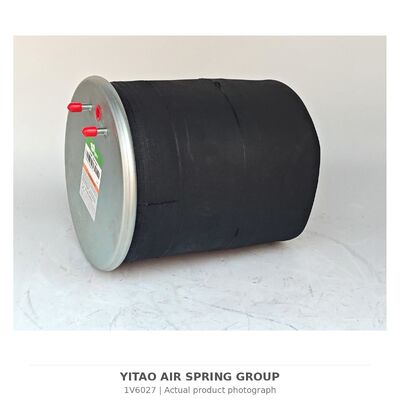

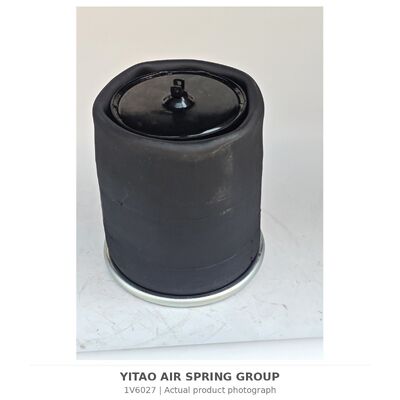

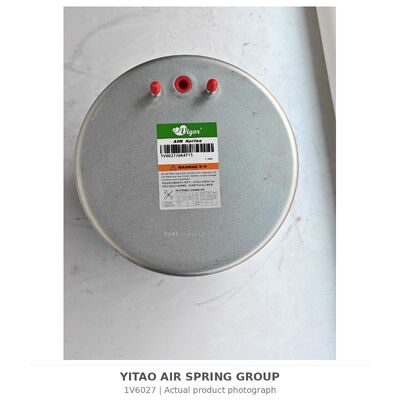

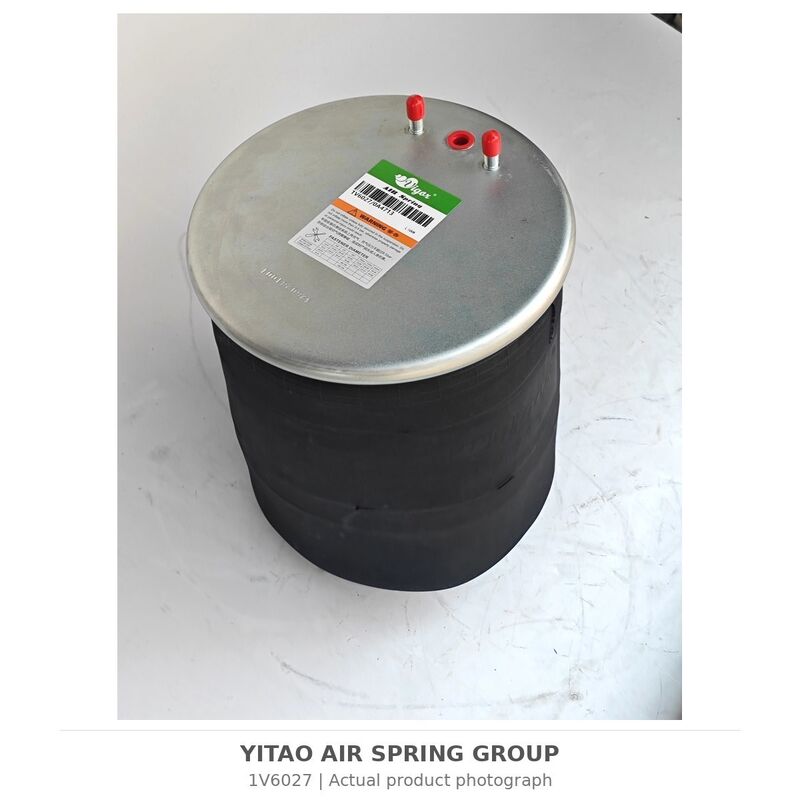

1V6027 Truck Air Spring — Volvo OE 1076594 / 1076595

YITAO AIR SPRING GROUP supplies the Vigor 1V6027 rolling-lobe air spring with a steel piston for commercial vehicle air suspension. The bellows reference is 0A4713. Use the part numbers below to identify the required replacement, then confirm the mounting arrangement and dimensions against your original unit before ordering.

OEM and Aftermarket Cross References
Reference Type Brand Number
Vehicle OE Volvo 1076594; 1076595
Aftermarket Firestone W01-M58-9760
Aftermarket ContiTech 4713NP02
Aftermarket Goodyear 1R12-762
Aftermarket Phoenix 1DF22C-1
Aftermarket Airtech 34713K; 131842
Aftermarket DT 2.62061
Aftermarket FEBI 20501
Aftermarket Meritor MLF7098
Aftermarket Dunlop FRD12B24
Aftermarket Trucktechnic TT23.09.098
Aftermarket CF Gomma 1TS300-28

Cross references are taken from our V-series catalogue. They are identification references; the vehicle configuration, piston and mounting details must also match. Manufacturer names identify the referenced parts and do not imply an original-equipment branded product.

Product Configuration
YITAO / Vigor model: 1V6027
Bellows reference: 0A4713
Piston: Steel / iron, included
Catalogue bellows outer diameter: 243 mm
Catalogue net weight: 10.261 kg
Check Before Ordering

Please provide the original part number, photos of the top and bottom mounting points, stud spacing, air connection and operating height requirement. Similar bellows can have different piston and mounting configurations.

The 1V6027SA is a separate version without a piston and should be specified accordingly.

Wholesale Enquiries

For replacement air spring supply, send your required quantity and destination port. Pricing, minimum order quantity, packaging and dispatch time are confirmed in the quotation.

  • Trade term: FOB
  • Warranty: 14 months from the bill of lading date
