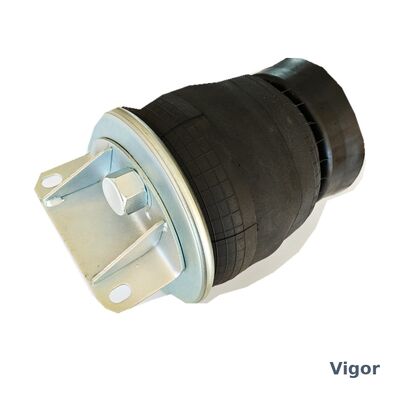

Vigor Truck Air Spring 1V9547 Cross Reference Firestone W01-358-9547

Vigor 1V9547 Air Spring — OEM Reference and Supply Options

Part identification

An enquiry for Kenworth C81-1004 should retain that number when requesting Vigor 1V9547. Listed alternatives for comparison include Firestone W01-358-9547 and Goodyear 1R11-268. Although the catalogue identifies the 0V9622 bellow family, buyers still need to compare the bracket, lower mounting and air connection with the original assembly.

Additional sourcing options

For customers building a replacement-parts range, we also supply models referenced by Volvo 85101145 (1V9069) and Volvo 20726768 (1V8787SA). Those numbers describe other available products. They are included for sourcing enquiries and must not be treated as extra interchangeable numbers for 1V9547.

Assembly and mounting

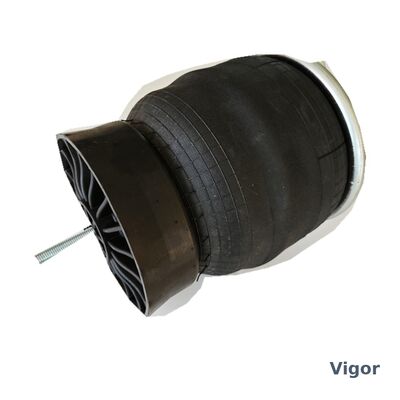

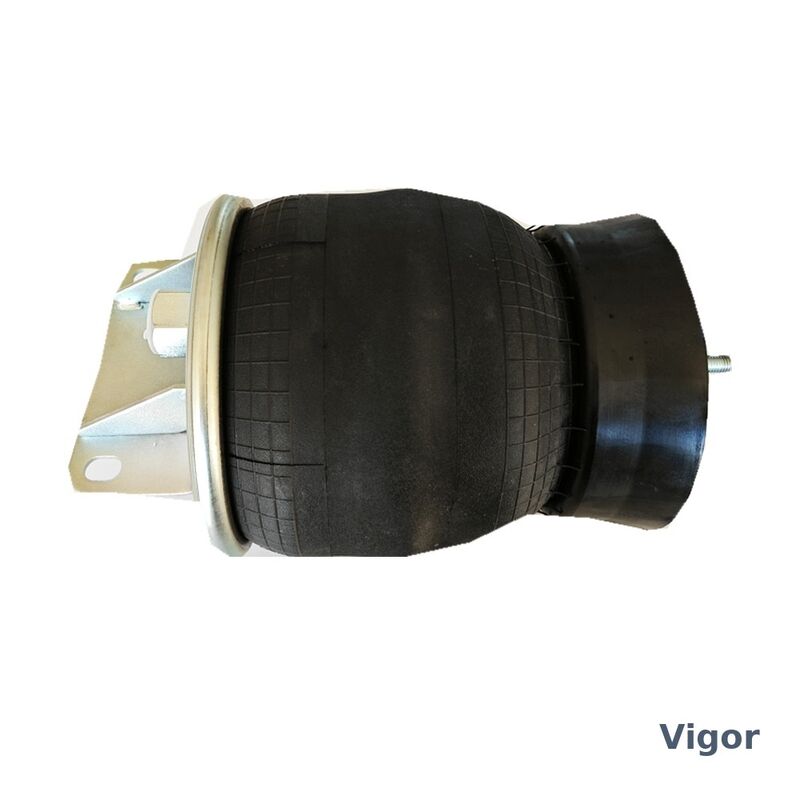

An air spring works as part of the vehicle's pneumatic suspension, with the flexible bellow connected to the specified mounting components. The catalogue configuration is plastic piston, with bellow number 0V9622. Compare the upper plate, lower attachment and air inlet with the original part. A similar shape or shared bellow marking is only a comparison aid and does not establish full assembly compatibility.

Cross Reference for 1V9547

Technical enquiries

Before confirming an order, send the required quantity, full original reference and photographs of the mounting areas to YITAO AIR SPRING GROUP. State 1V9547 for the featured product and list other requested models separately. Technical specifications and test reports are available on contact. Installation and system checks should follow the relevant vehicle manufacturer's service instructions.

Additional Models We Supply

• 1V9069 — Volvo 85101145; Peterbilt 307112; Peterbilt 301645; Peterbilt 302456
• 1V8787SA — Volvo 20726768
• 1V4714 — IVECO 500330322; IVECO 500055351; IVECO 500042738; IVECO 41298919
• 1V8722 — DAF 1697678; DAF 0388165
• 1V9622 — Kenworth K303-28; Kenworth K303-22
• 1V8829 — Volvo 20733034; Volvo 20910892; Volvo 3934699; Volvo 8079902
• 1V9781 — Freightliner A416-14004-000; Freightliner 681-320-0017
• 1V9780 — Volvo 85101151; Freightliner 16-13810-000; Watson & Chalin AS-0182
• 1C0425 — Mercedes-Benz A2513200025; Mercedes-Benz A2513200325
• 1V9373 — Watson & Chalin AS0127G
• 1V9375 — Mack 57QL414M; Hendrickson 50899-002; Hendrickson 50899-2
• 1V8787 — Volvo 25372795
• 1V9875 — Navistar 3541731C1
• 1V9648 — Navistar 2027911C1
• 1V8708 — Hendrickson Trailer S-21966

Wholesale supply

A quotation enquiry can cover this product and other separately identified air springs. We confirm quantity, packaging and dispatch timing against the order and provide FOB pricing for the requested supply scope. The warranty stated for 1V9547 is 14 months from the bill of lading date. Include the relevant model beside each additional OEM or aftermarket number so every quoted item is clear. If your purchase list includes several vehicle or suspension families, send those requirements as separate lines with quantities and reference brands. Our team can then discuss the appropriate product for each item and keep the final order details clearly identified.
