W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring

Certification
china Yitao Air Spring Group certification
china Yitao Air Spring Group certification
I'm Online Chat Now

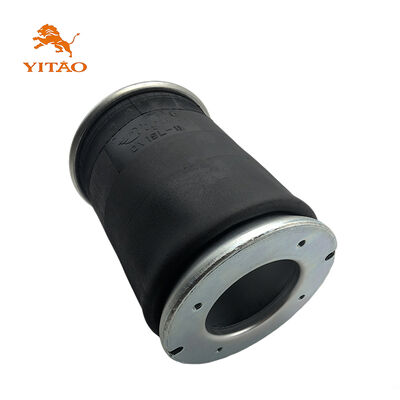

W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring

W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring

Large Image :  W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V9923/1V 9923
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring

Description
OE Number: W01-358-9923,1T15M-8,1T15M-7.5,1R12-481,566243097,910-17.5P429,90557118,8429,6391 YITAO Number: 1V 9923
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Firestone truck air spring high-capacity

,

Goodyear 1R12-481 truck air spring

,

rolling-blade truck air spring

W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring
Product Overview

Manufactured to specifications matching Firestone W01-358-9923/Goodyear 1R12-481, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9923 W013589923 / W01-358-9923 / W01 358 9923
Firestone 1T15M-8 1T15M8 / 1T15M-8 / 1T15M 8
Firestone 1T15M-7.5 1T15M7.5 / 1T15M-7.5 / 1T15M 7.5
Goodyear 1R12-481 1R12481 / 1R12-481 / 1R12 481
Goodyear 566243097 :566243097
Contitech 910-17.5P429 91017.5P429 / 910-17.5P429 / 910 17.5P429
Neway 90557118 :90557118
Triangle 8429 :8429
Triangle 6391 :6391
Technical Specifications
Specifications Parameters
Outer diameter Φ255
Weight 7.326 kg
Package Dimensions 28*28*37.5cm
Natural height 560mm
Maximum height 545mm
Minimum height 180mm
Extended Height 625mm
Compressed Height 217mm
Top Plate Width 231mm
Piston Width 261mm
Product Drawings & Images
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 0

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 1

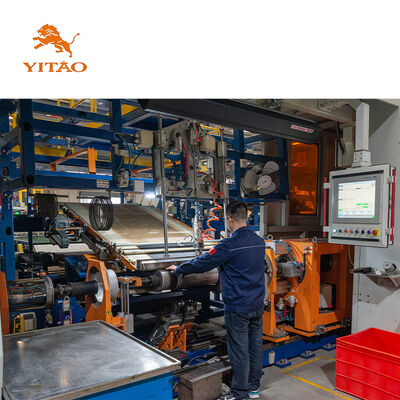

Production Line Overview
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 2
Quality Control Inspection
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 3
Manufacturing Equipment
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 4
Assembly Line Operations
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 5
Finished Product Storage
W01-358-9923 Firestone Truck Air Spring Goodyear 1R12-481 High-Capacity Rolling-Blade Truck Air Spring 6
Packaging & Shipping
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
