Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P

Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P
Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P

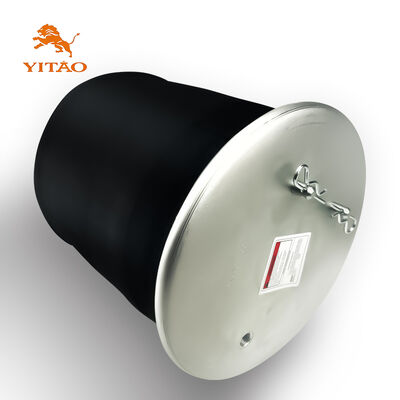

Large Image :  Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 0501/1V 0501
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P

Description
OE Number: W01-M58-8535,1R14-869,566-28-3-522,6700NP02,34608P,15695,1774804,117804,1903608,1903668,2729173 YITAO Number: 1V 0501
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Iron
Packing: Neutral Packing Or Customized Packing
Highlight:

Goodyear truck air spring

,

Truck air spring with warranty

,

Airtech 34608P air spring

Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P
Product Overview

Manufactured to specifications matching Goodyear 566-28-3-522/Airtech 34608P, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-M58-8535W01M588535 / W01-M58-8535 / W01 M58 8535
Goodyear1R14-8691R14869 / 1R14-869 / 1R14 869
Goodyear566-28-3-522566283522 / 566-28-3-522 / 566 28 3 522
Contitech6700NP02:6700NP02
Airtech34608P:34608P
Granning15695:15695
SCANIA1774804:1774804
SCANIA117804:117804
SCANIA1903608:1903608
SCANIA1903668:1903668
SCANIA2729173:2729173
Technical Specifications
Specifications Parameters
Outer diameterφ265
Weight13.705 kg
Package Dimensions30*30*39.5cm
Natural height793mm
Maximum height775mm
Minimum height235mm
Extended Height797mm
Compressed Height235mm
Top Plate Width289mm
Piston Width227mm

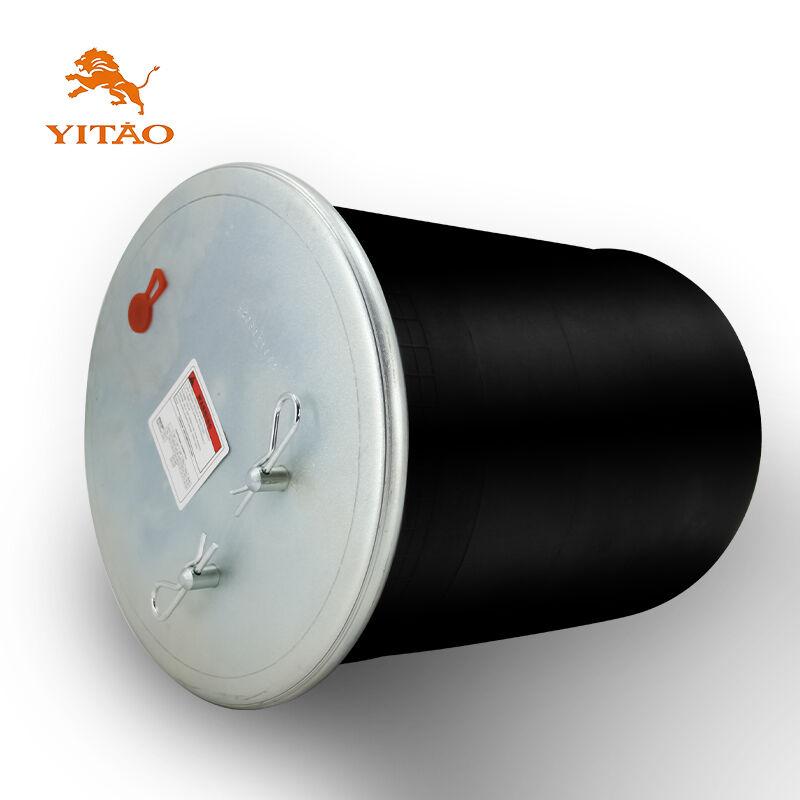

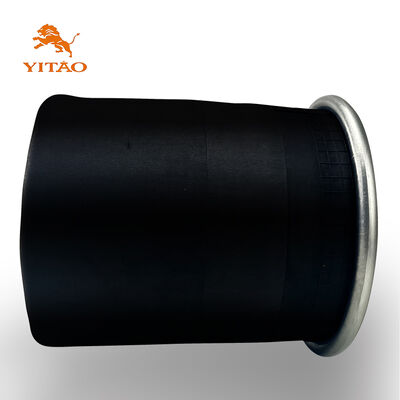

Product Drawings & Images
Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 0 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 1

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 2 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 3 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 4 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 5 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 6 Truck Air Spring Goodyear 566-28-3-522 Airtech 34608P 7
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
