1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02

1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02
1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02

Large Image :  1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 0500/1V 0500
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02

Description
OE Number: W01-095-0500,4913NP02,1R14-753,1T19E-93,132122,34913K,9518147530,1379392,1440294,1543691,1731113 OE NO2: 1402423,2198330,2287814,1510195,1D28H-16,KR625-16,D14B42,MLF7081,16105,6700NP01
YITAO Number: 1V 0500 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Iron Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Firestone W01-095-0500

,

Truck Air Spring compatible with Goodyear 1R14-753

,

Truck Air Spring replacement Contitech 4913NP02

1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02
Product Overview

Manufactured to specifications matching Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-095-0500W010950500 / W01-095-0500 / W01 095 0500
Contitech4913NP024913NP02
Goodyear1R14-7531R14753 / 1R14-753 / 1R14 753
CF Gomma1T19E-931T19E93 / 1T19E-93 / 1T19E 93
Airtech132122132122
Airtech34913K34913K
WABCO95181475309518147530
SCANIA13793921379392
SCANIA14402941440294
SCANIA15436911543691
SCANIA17311131731113
SCANIA14024231402423
SCANIA21983302198330
SCANIA22878142287814
SCANIA15101951510195
Phoenix1D28H-161D28H16 / 1D28H-16 / 1D28H 16
TaurusKR625-16KR62516 / KR625-16 / KR625 16
Dunlop FRD14B42D14B42
MeritorMLF7081MLF7081
Granning1610516105
Contitech6700NP016700NP01
Technical Specifications
Specifications Parameters
Outer diameterφ265
Weight13.667 kg
Package Dimensions29*29*42cm
Natural height793mm
Maximum height775mm
Minimum height235mm
Extended Height797mm
Compressed Height235mm
Top Plate Width289mm
Piston Width227mm

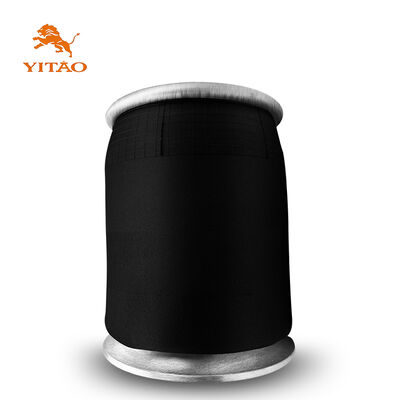

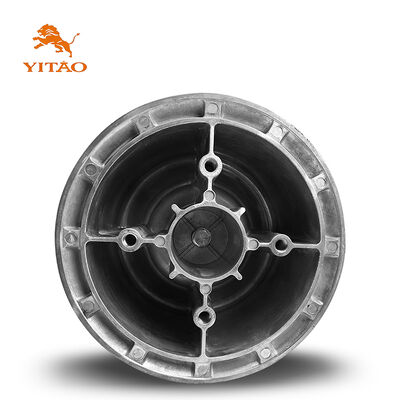

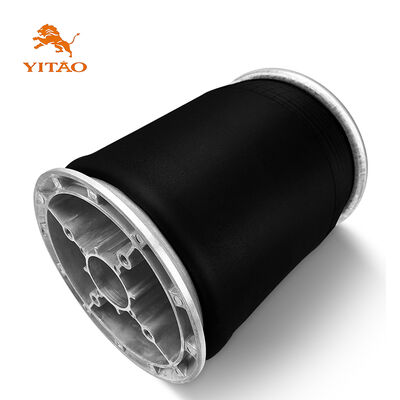

Product Drawings & Images
1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 0 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 1
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 2 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 3 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 4 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 5 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 6 1V 0500 Truck Air Spring Suitable for Firestone W01-095-0500/Goodyear 1R14-753/Contitech 4913NP02 7
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
