Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific

Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific
Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific

Large Image :  Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9122/1V 9122
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific

Description
OE Numbe8r: W01-358-9122,4811N03,1R13-038,90557020,90557071,90557076,90557077,12883-02,5006003,P50-732 OE NO2: 1003589122C,AS-0023,B3830,S3467,B-12514-008,B-12514-010
YITAO Number: 1V 9122 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Plastic Packing: Neutral Packing Or Customized Packing
Highlight:

Hendrickson B-12514-008 air spring

,

Truck air spring accessories

,

Neway Reyco air spring parts

Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific
Product Overview

Manufactured to specifications matching Neway 90557020/Reyco 12883-02/Hendrickson B-12514-008, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-9122W013589122 / W01-358-9122 / W01 358 9122
Contitech4811N03:4811N03
Goodyear1R13-0381R13038 / 1R13-038 / 1R13 038
Neway90557020:90557020
Neway90557071:90557071
Neway90557076:90557076
Neway90557077:90557077
Reyco12883-021288302 / 12883-02 / 12883 02
Tec5006003:5006003
SauerP50-732P50732 / P50-732 / P50 732
Triangle1003589122C:1003589122C
Watson&ChalinAS-0023AS0023 / AS-0023 / AS 0023
HendricksonB3830:B3830
HendricksonS3467:S3467
HendricksonB-12514-008B12514008 / B-12514-008 / B 12514 008
HendricksonB-12514-010B12514010 / B-12514-010 / B 12514 010
Technical Specifications
Specifications Parameters
Outer diameterφ275
Weight5 kg
Package Dimensions30*30*43.5cm
Natural height696mm
Maximum height680mm
Minimum height227mm
Extended Height660mm
Compressed Height240mm
Top Plate Width289mm
Piston Width263mm

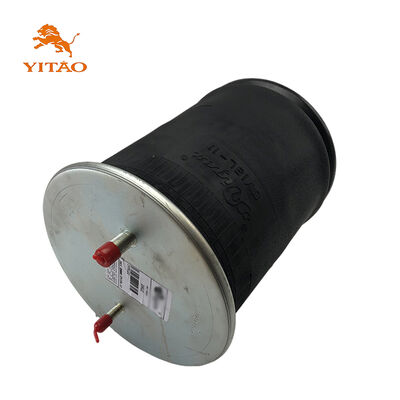

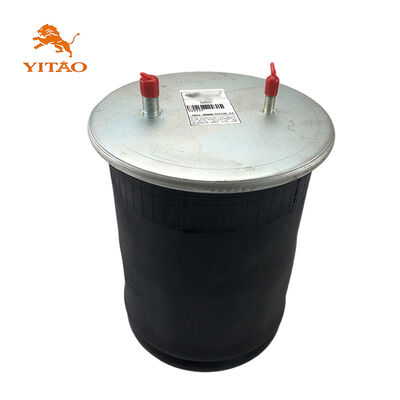

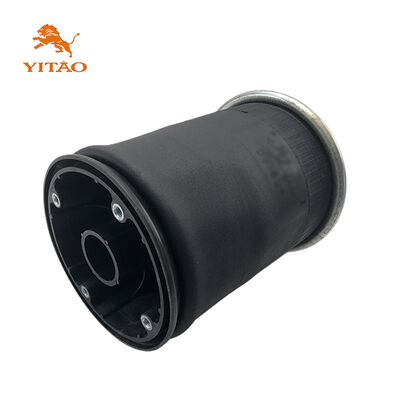

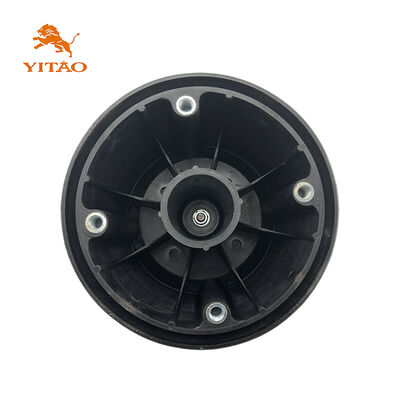

Product Drawings & Images
Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 0 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 1 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 2
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 3 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 4 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 5 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 6 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 7 Hendrickson B-12514-008 Air Spring Accessories 90557020 Neway/12883-02 Reyco Truck Specific 8
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions

IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.

I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
