Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly

Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly
Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly

Large Image :  Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8774F/1V 8774F
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly

Description
OE Numbe8r: W01-358-8774,1T19LF-7,1110.5F-17P745,1R14-172,566283042,1R14-183,1R14-190 OE NO2: 566283044,S25873,S27341,AS0144,AS0519,AS01591G
YITAO Number: 1V 8774F Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Iron Packing: Neutral Packing Or Customized Packing
Highlight:

Firestone truck air spring assembly

,

Goodyear suspension air spring

,

truck air spring with warranty

Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly
Product Overview

Manufactured to specifications matching Firestone 1T19LF-7/Goodyear 1R14-172, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8774 W013588774 / W01-358-8774 / W01 358 8774
Firestone 1T19LF-7 1T19LF7 / 1T19LF-7 / 1T19LF 7
Contitech 1110.5F-17P745 1110.5F17P745 / 1110.5F-17P745 / 1110.5F 17P745
Goodyear 1R14-172 1R14172 / 1R14-172 / 1R14 172
Goodyear 566283042 :566283042
Goodyear 1R14-183 1R14183 / 1R14-183 / 1R14 183
Goodyear 1R14-190 1R14190 / 1R14-190 / 1R14 190
Goodyear 566283044 :566283044
Hendrickson S25873 :S25873
Hendrickson S27341 :S27341
Watson&Chalin AS0144 :AS0144
Watson&Chalin AS0519 :AS0519
Watson&Chalin AS01591G :AS01591G
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 7.931kg
Package Dimensions 30*30*37.5cm
Natural height 527mm
Maximum height 507mm
Minimum height 168mm
Extended Height 530mm
Compressed Height 156mm
Top Plate Width 289mm
Piston Width 259mm

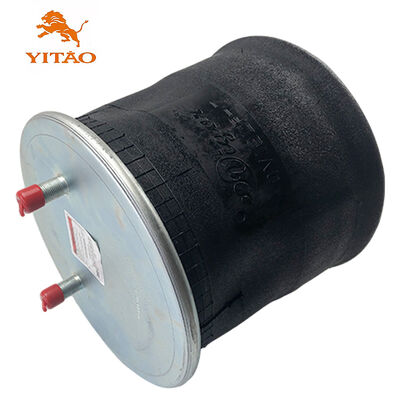

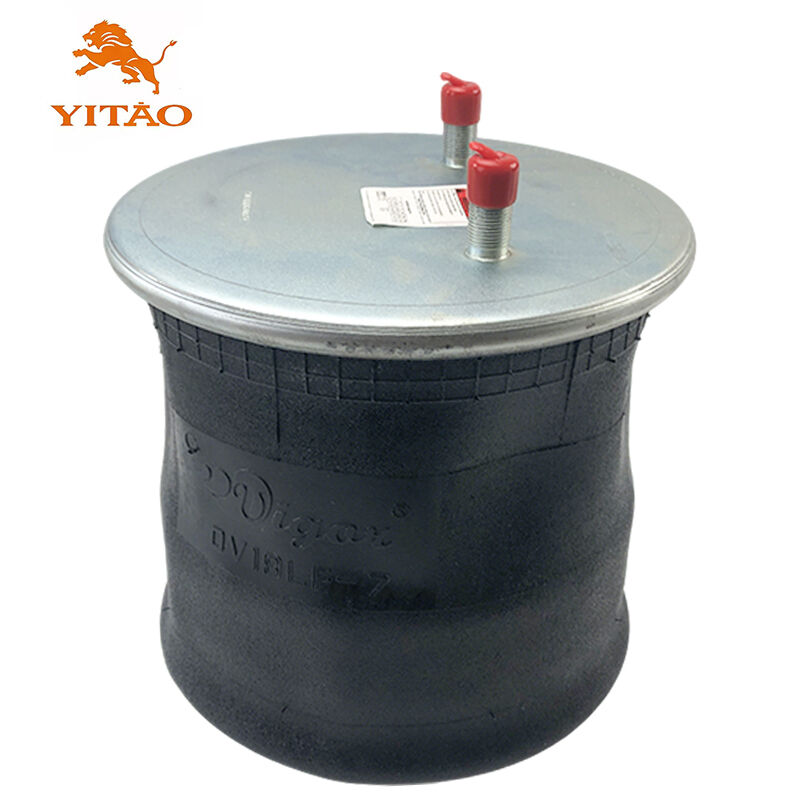

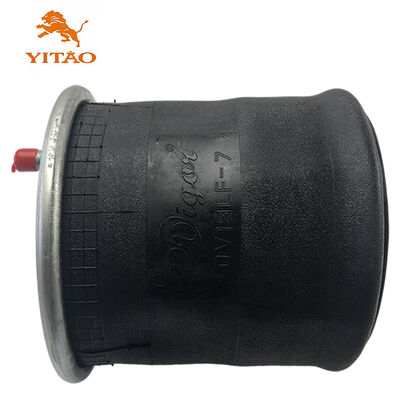

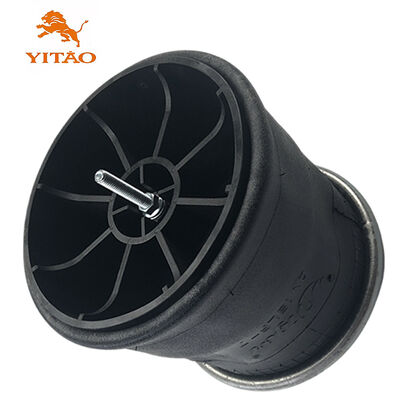

Product Drawings & Images
Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 0 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 1 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 2 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 4 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 5 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 6 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 7 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 8 Firestone 1T19LF-7/Goodyear 1R14-172 Truck Suspension Air Spring Assembly 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, usually we send samples by TNT, DHL, FEDEX or UPS. It takes around 3 days for customers to receive them, but charges apply for sample cost and airmail freight. We refund the sample cost after receiving the order.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our services is sourcing products that our customers need, so please provide us with detailed information about the item.
