1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124

1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124
1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124

Large Image :  1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8755/1V 8755
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124

Description
OE Numbe8r: W01-358-8755,1R13-124,FLRTMX1R13124 YITAO Number: 1V 8766
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Aluminum
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Navistar FLRTMX1R13124

,

Navistar FLRTMX1R13124 air suspension part

,

Heavy-duty truck air spring replacement

1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124
1V 8755 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758
Product Overview
Manufactured to specifications matching Navistar FLRTMX1R13124, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8755 W013588755 / W01-358-8755 / W01 358 8755
Goodyear 1R13-124 1R13124 / 1R13-124 / 1R13 124
Navistar FLRTMX1R13124 :FLRTMX1R13124
Technical Specifications
Specifications Parameters
Outer diameter φ266
Weight 9.285kg
Package Dimensions 27*27*30cm
Natural height 501mm
Maximum height 481mm
Minimum height 178mm
Extended Height 550mm
Compressed Height 180mm
Top Plate Width 262mm
Piston Width 230mm

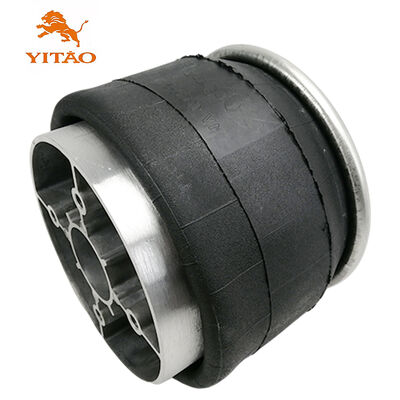

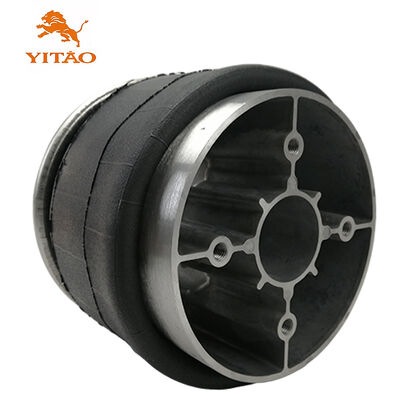

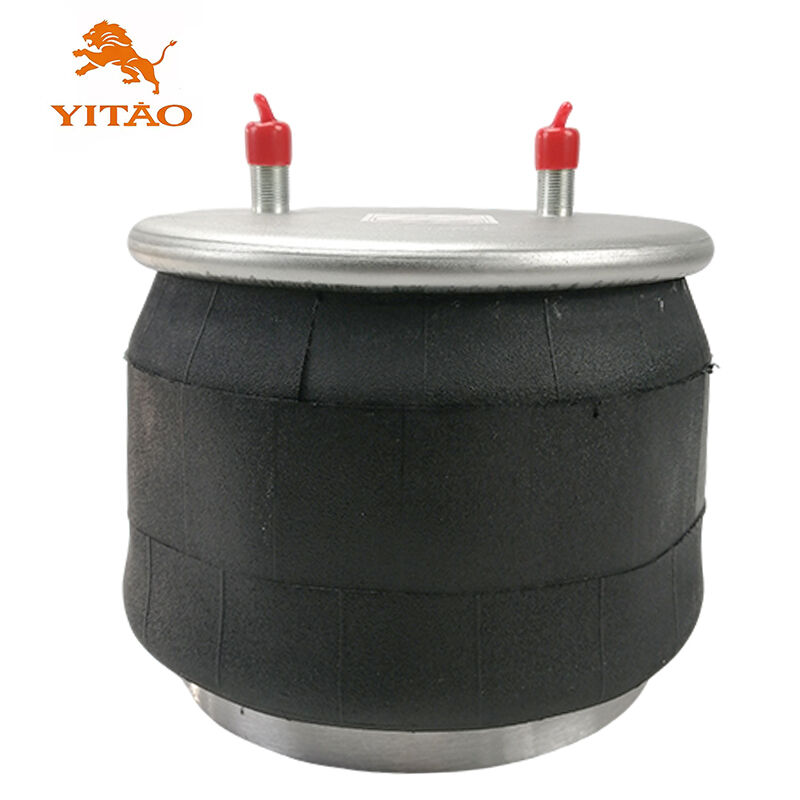

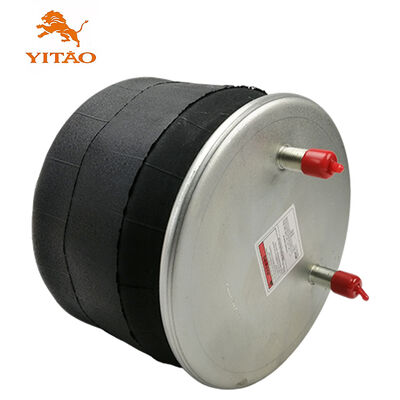

Product Drawings & Images
1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 0 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 1 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 2 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 4 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 5 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 6 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 7 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 8 1V8755 Truck Air Spring Suitable for Navistar FLRTMX1R13124 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
