1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758

1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758
1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758

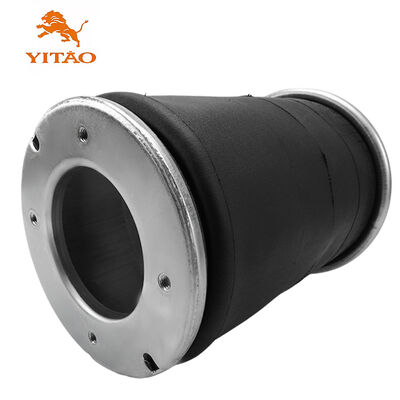

Large Image :  1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8766/1V 8766
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758

Description
OE Numbe8r: W01-M58-8766,912NP02,1D28D2,D13B03,1R14-758,1T19E-4 OE NO2: 3.229.0005.01,3.229.0013.00,3.229.0006.01,507782,US96681F,21222673,M060770
YITAO Number: 1V 8766 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Iron Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring Contitech 912NP02

,

Truck Air Spring Goodyear 1R14-758

,

Truck Air Spring with warranty

1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758
Manufactured to specifications matching Contitech 912NP02/Goodyear 1R14-758, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8766 W01M588766 / W01-M58-8766 / W01 M58 8766
Contitech 912NP02 :912NP02
Phoenix 1D28D2 :1D28D2
Dunlop FR D13B03 :D13B03
Goodyear 1R14-758 1R14758 / 1R14-758 / 1R14 758
CF Gomma 1T19E-4 1T19E4 / 1T19E-4 / 1T19E 4
SAF 3.229.0005.01 :3.229.0005.01
SAF 3.229.0013.00 :3.229.0013.00
SAF 3.229.0006.01 :3.229.0006.01
Hendrickson 507782 :507782
Weweler US96681F :US96681F
ROR/Meritor 21222673 :21222673
Fruehauf M060770 :M060770
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight To be updated
Package Dimensions To be updated
Natural height 801mm
Maximum height 781mm
Minimum height 274mm
Extended Height 790mm
Compressed Height 262mm
Top Plate Width 289mm
Piston Width 260mm

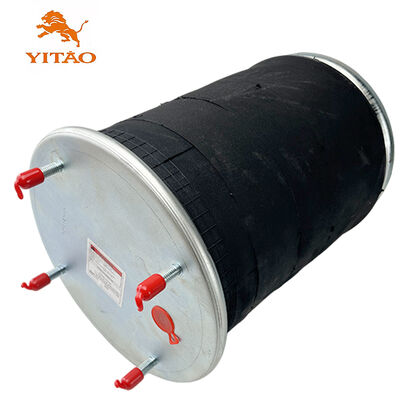

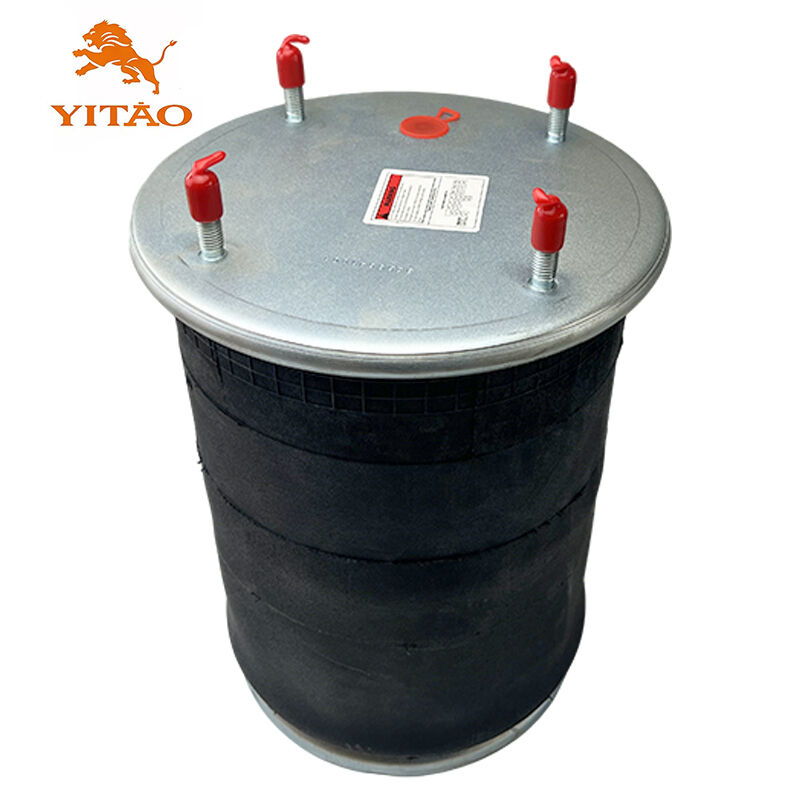

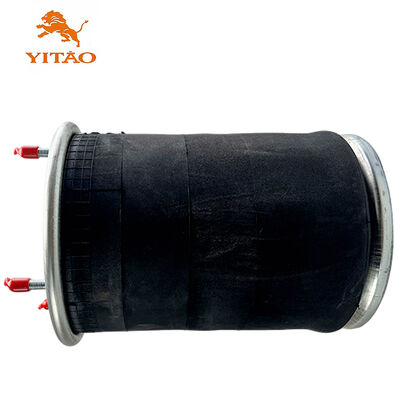

Product Drawings & Images
1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 0 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 1 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 2 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 4 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 5 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 6 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 7 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 8 1V8766 Truck Air Spring Suitable for Contitech 912NP02/Goodyear 1R14-758 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE? Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM? Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS? Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED? Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
