1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873

1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873
1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873

Large Image :  1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8774F/1V 8774F
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873

Description
OE Numbe8r: W01-358-8774,1T19LF-7,1110.5F-17P745,1R14-172,566283042,1R14-183,1R14-190,566283044,S25873,S27341,AS0144,AS0519,AS01591G YITAO Number: 1V 8774F
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Iron
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Goodyear 1R14-183

,

Truck Air Spring Hendrickson S25873

,

Replacement Truck Air Spring with warranty

1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873
Product Overview

Manufactured to specifications matching Goodyear 1R14-183/Hendrickson S25873, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-8774W013588774 / W01-358-8774 / W01 358 8774
Firestone1T19LF-71T19LF7 / 1T19LF-7 / 1T19LF 7
Contitech1110.5F-17P7451110.5F17P745 / 1110.5F-17P745 / 1110.5F 17P745
Goodyear1R14-1721R14172 / 1R14-172 / 1R14 172
Goodyear566283042:566283042
Goodyear1R14-1831R14183 / 1R14-183 / 1R14 183
Goodyear1R14-1901R14190 / 1R14-190 / 1R14 190
Goodyear566283044:566283044
HendricksonS25873:S25873
HendricksonS27341:S27341
Watson&ChalinAS0144:AS0144
Watson&ChalinAS0519:AS0519
Watson&ChalinAS01591G:AS01591G
Technical Specifications
Specifications Parameters
Outer diameterφ275
Weight7.931 kg
Package Dimensions30*30*37.5 cm
Natural height527mm
Maximum height481mm
Minimum height507mm
Extended Height530mm
Compressed Height156mm
Top Plate Width289mm
Piston Width259mm

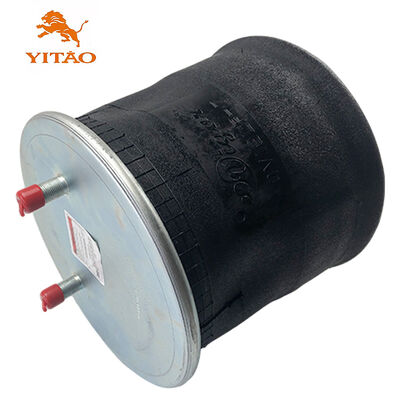

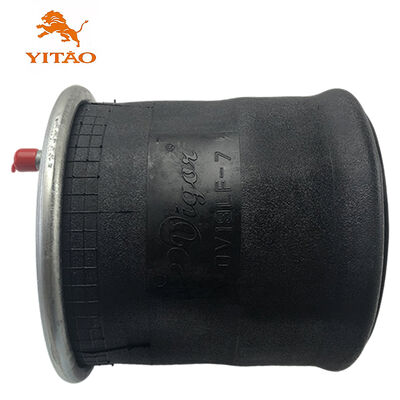

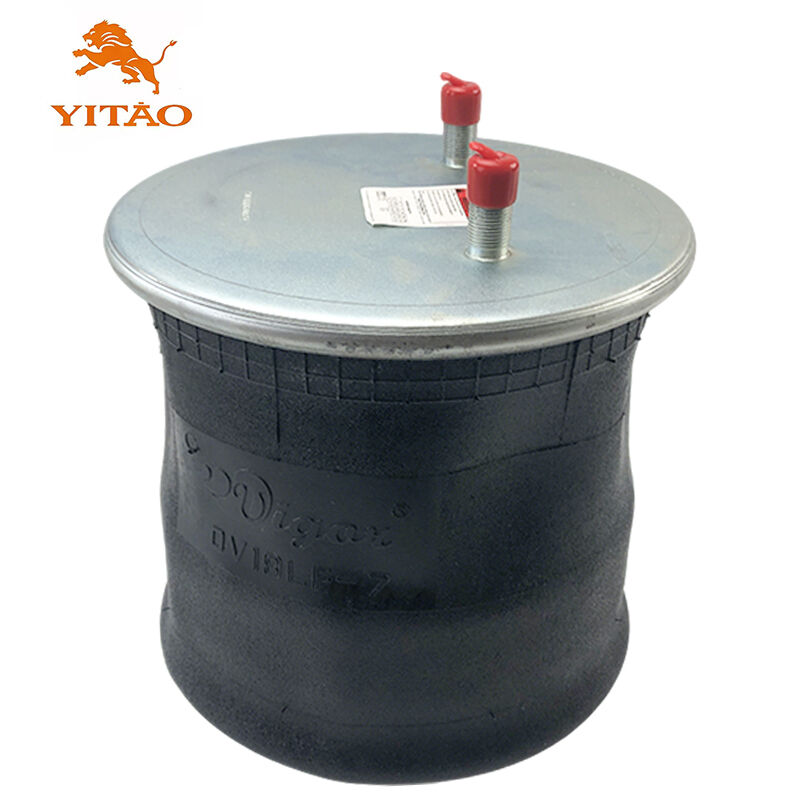

Product Drawings & Images
1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 0 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 1 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 2 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 4 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 5 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 6 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 7 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 8 1V8774F Truck Air Spring Suitable for Goodyear 1R14-183/Hendrickson S25873 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
1. IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

2. WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
