W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension

W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension
W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension

Large Image :  W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8774/1V 8774
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension

Description
OE Numbe8r: W01-M58-8774 YITAO Number: 1V 8774
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Iron
Packing: Neutral Packing Or Customized Packing
Highlight:

Firestone truck air spring assembly

,

air spring for truck suspension

,

Firestone air suspension assembly

W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension
Product Overview
Manufactured to specifications matching Firestone W01-M58-8774, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8774 W01-M58-8774 / W01M58-8774/ W01M58-8774 / W01M588774
Technical Specifications
Specifications Parameters
Outer diameterφ275
Weight12.64 kg
Package Dimensions30*30*39.5cm
Natural height563mm
Maximum height537mm
Minimum height168mm
Extended Height560mm
Compressed Height180mm
Top Plate Width289mm
Piston Width260mm
1V 8774 Truck Air Spring Drawing
W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 0

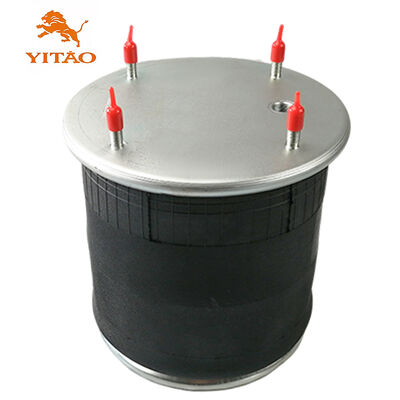

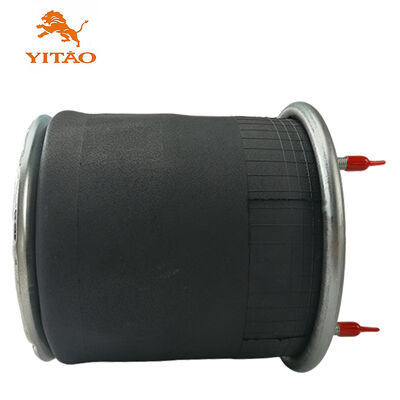

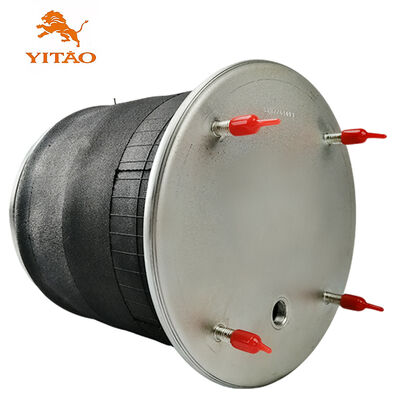

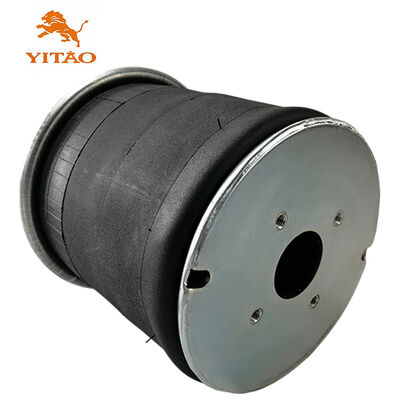

W01-M58-8774 Product Images
W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 1 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 2 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 4 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 5 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 6 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 7 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 8 W01-M58-8774 Air Spring Assembly Firestone For Truck Suspension 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions

1. IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

2. WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.

4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
