1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513

Certification
china Yitao Air Spring Group certification
china Yitao Air Spring Group certification
I'm Online Chat Now

1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513

1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513
1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513

Large Image :  1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8729/1V 8729
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513

Description
OE Numbe8r: W01-358-8729,1T17BB-2,1010B-13S513,1R13-130,566263055,131212,38729CPP,8513,6396,202796 YITAO Number: 1V 8729
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Firestone 1T17BB-2

,

Truck Air Spring for Contitech 1010B-13S513

,

Replacement Truck Air Spring with warranty

1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513
Product Overview

Manufactured to specifications matching Firestone 1T17BB-2/Contitech 1010B-13S513, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8729 W013588729 / W01-358-8729 / W01 358 8729
Firestone 1T17BB-2 1T17BB2 / 1T17BB-2 / 1T17BB 2
Contitech 1010B-13S513 1010B13S513 / 1010B-13S513 / 1010B 13S513
Goodyear 1R13-130 1R13130 / 1R13-130 / 1R13 130
Goodyear 566263055 :566263055
Airtech 131212 :131212
Airtech 38729CPP :38729CPP
Triangle 8513 :8513
Triangle 6396 :6396
Arvin Meritor 202796 :202796
Technical Specifications
Specifications Parameters
Outer diameter φ256
Weight 6.428 kg
Package Dimensions 28*28*31.5cm
Natural height 441mm
Maximum height 421mm
Minimum height 114mm
Extended Height 355mm
Compressed Height 120mm
Top Plate Width 262mm
Piston Width 259mm
Product Drawing
1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 0

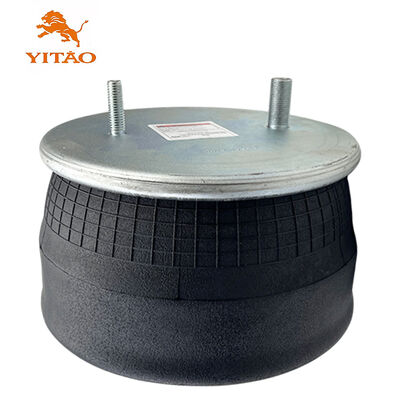

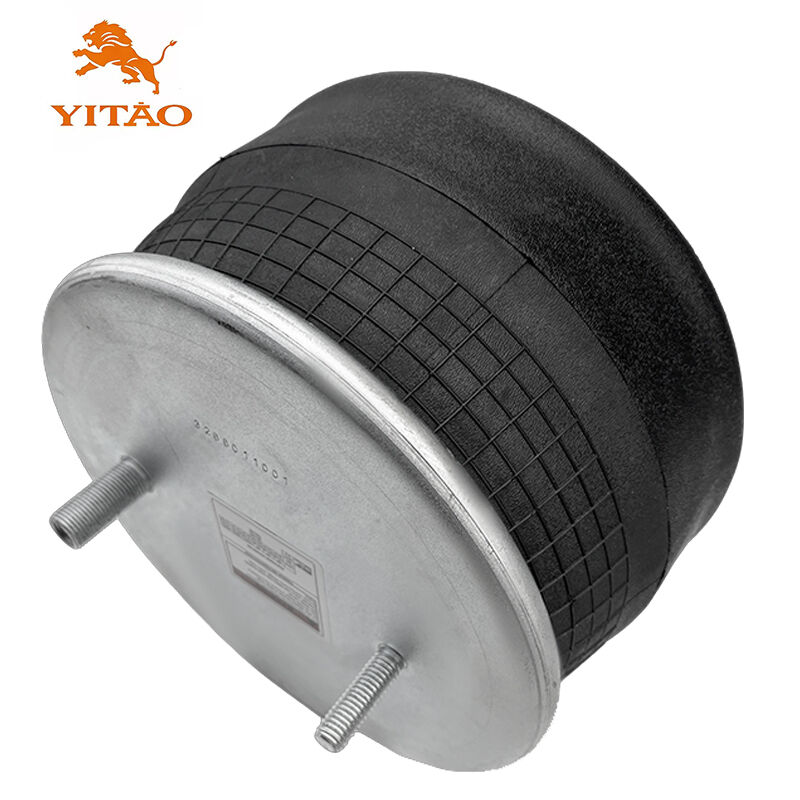

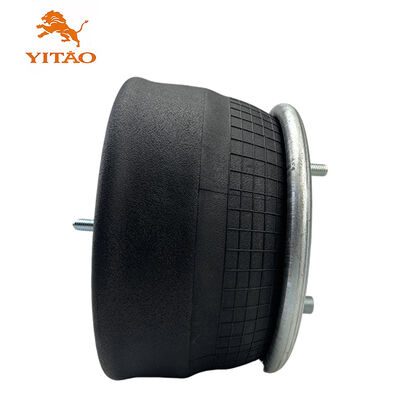

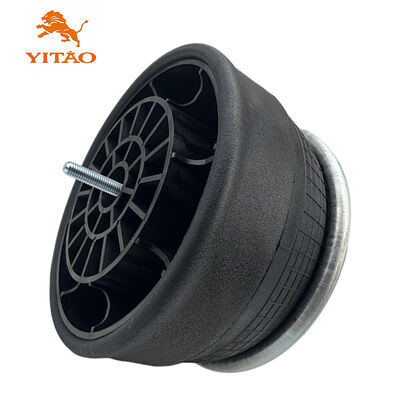

Product Images
1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 1 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 2 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 4 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 5 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 6 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 7 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 8 1V8729 Truck Air Spring Suitable for Firestone 1T17BB-2/Contitech 1010B-13S513 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  1. IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  2. WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
