Truck Air Spring 566-26-3-071 Goodyear 1R13-152

Truck Air Spring 566-26-3-071 Goodyear 1R13-152
Truck Air Spring 566-26-3-071 Goodyear 1R13-152 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 Truck Air Spring 566-26-3-071 Goodyear 1R13-152

Large Image :  Truck Air Spring 566-26-3-071 Goodyear 1R13-152

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8748/1V8748
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Truck Air Spring 566-26-3-071 Goodyear 1R13-152

Description
OE Numbe8r: W01-358-8748,1010-21P570,1R13-152,566-26-3-071,90557167,90557288,8570,6394,AR250 (14,15),RL250 (14,15) YITAO Number: 1V 8748
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Goodyear truck air spring

,

Truck air spring 566-26-3-071

,

1R13-152 air suspension part

Truck Air Spring 566-26-3-071 Goodyear 1R13-152
Product Overview
Manufactured to specifications matching Goodyear 1R13-152/Goodyear 566-26-3-071, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8748 W013588748 / W01-358-8748 / W01 358 8748
Contitech 1010-21P570 101021P570 / 1010-21P570 / 1010 21P570
Goodyear 1R13-152 1R13152 / 1R13-152 / 1R13 152
Goodyear 566-26-3-071 566263071 / 566-26-3-071 / 566 26 3 071
Neway 90557167 :90557167
Neway 90557288 :90557288
Triangle 8570 :8570
Triangle 6394 :6394
SAF Holland AR250(14,15) :AR250(14,15)
SAF Holland RL250(14,15) :RL250(14,15)
Technical Specifications
Specifications Parameters
Outer diameter φ246
Weight 8.41 kg
Package Dimensions 27*27*45cm
Natural height 614mm
Maximum height 594mm
Minimum height 178mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 262mm
Piston Width 261mm
Product Drawing
Truck Air Spring 566-26-3-071 Goodyear 1R13-152 0
1V 8748 Truck Air Spring Drawing

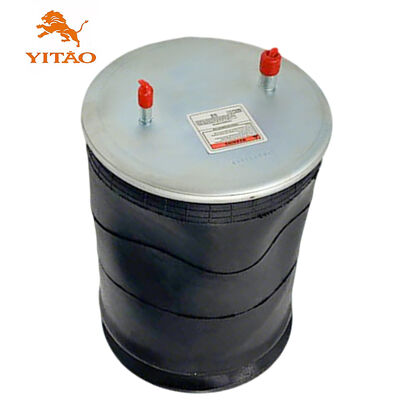

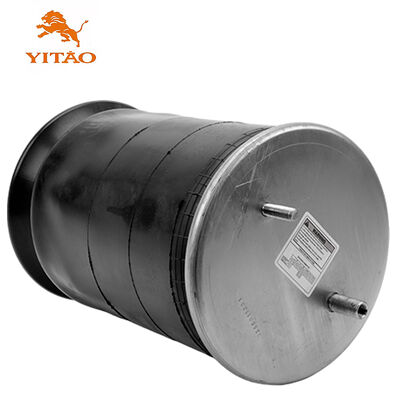

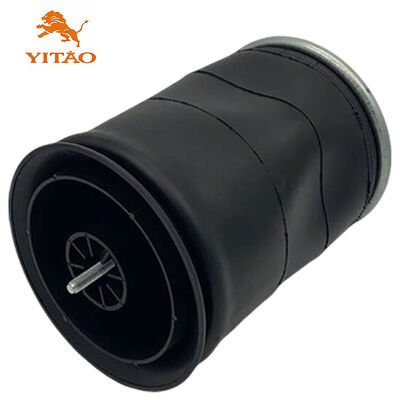

Product Images
Truck Air Spring 566-26-3-071 Goodyear 1R13-152 1 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 2 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 3 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 4
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Truck Air Spring 566-26-3-071 Goodyear 1R13-152 5 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 6 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 7 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 8 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 9 Truck Air Spring 566-26-3-071 Goodyear 1R13-152 10
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
