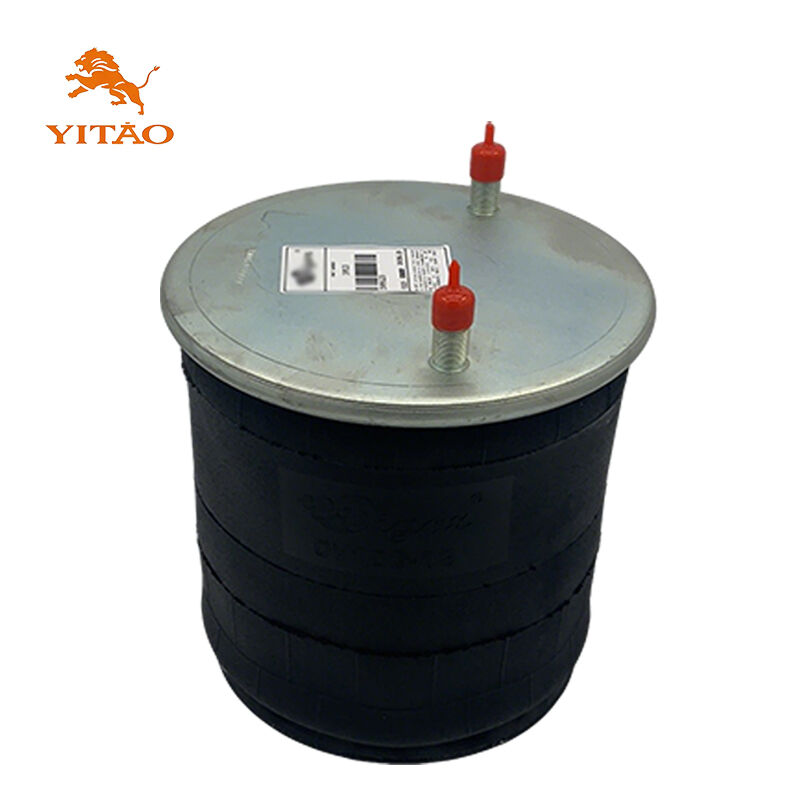

Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone

Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone
Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone

Large Image :  Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9123/1V9131
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone

Description
OE Numbe8r: 1R14-201,W01-358-9122 YITAO Number: 1V 9123
Type: Truck Air Spring Application: For Truck Air Suspension
Condition: Brand New Warranty: 12 Months
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Iron
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck air suspension bag 1R14-201

,

Goodyear air spring W01-358-9122

,

Firestone truck air spring

Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone
Product Overview

Manufactured to specifications matching Goodyear 1R14-201/Firestone W01-358-9122, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9122 W01358-9122/W01-3589122/W013589122/W01 358 9122
Goodyear 1R14-201 1R14201/1R14 201/1R14-201
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 14.977 kg
Package Dimensions 30*30*39.5cm
Natural height 650mm
Maximum height 630mm
Minimum height 233mm
Extended Height 660mm
Compressed Height 240mm
Top Plate Width 289mm
Piston Width 263mm
1V 9123 Truck Air Spring Drawing
Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 0

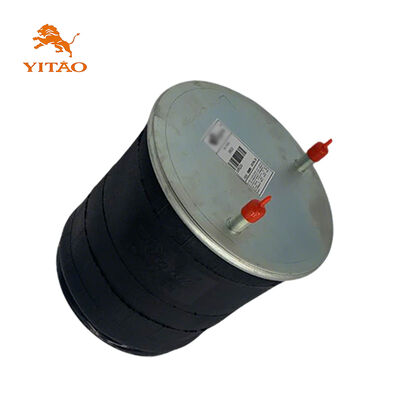

1R14-201 W01-358-9122 Product Images
Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 1
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 2 Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 3 Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 4 Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 5 Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 6 Truck Air Suspension Bag 1R14-201 Goodyear / W01-358-9122 Firestone 7
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
