1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09

1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09
1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09

Large Image :  1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9131/1V9131
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09

Description
OE Numbe8r: W01-M58-9131,1T15M-9,W01-M58-0736,4159NP09,1R12-721,1DK21B8,1T323-40,KR509-9131 OE NO2: 128147123,128147123,MOO1774,D12B04,UJB0358,UJY0099,58051210
YITAO Number: 1V 9131 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Plastic Packing: Neutral Packing Or Customized Packing
Highlight:

Firestone truck air spring replacement

,

Contitech 4159NP09 air spring

,

truck air spring with warranty

1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09
Product Overview

Manufactured to specifications matching Firestone W01-M58-0736/Contitech 4159NP09, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-M58-9131W01M589131 / W01-M58-9131 / W01 M58 9131
Firestone1T15M-91T15M9 / 1T15M-9 / 1T15M 9
FirestoneW01-M58-0736W01M580736 / W01-M58-0736 / W01 M58 0736
Contitech4159NP09:4159NP09
Goodyear1R12-7211R12721 / 1R12-721 / 1R12 721
Phoenix1DK21B8:1DK21B8
CF Gomma1T323-401T32340 / 1T323-40 / 1T323 40
TaurusKR509-9131KR5099131 / KR509-9131 / KR509 9131
Acerbi128147123:128147123
Viberti128147123:128147123
SMBMOO1774:MOO1774
DunlopD12B04:D12B04
FruehaufUJB0358:UJB0358
FruehaufUJY0099:UJY0099
Cardi58051210:58051210
Technical Specifications
Specifications Parameters
Outer diameterφ255
Weight8.113 kg
Package Dimensions27*27*36cm
Natural height645mm
Maximum height625mm
Minimum height255mm
Extended Height650mm
Compressed Height234mm
Top Plate Width231mm
Piston Width260mm
Product Drawing
1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 0

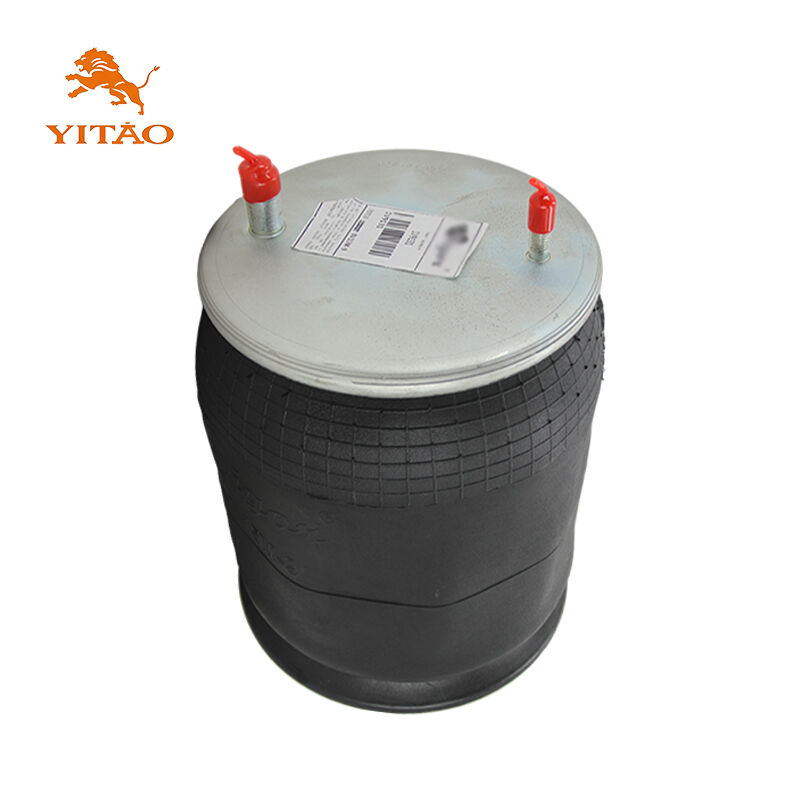

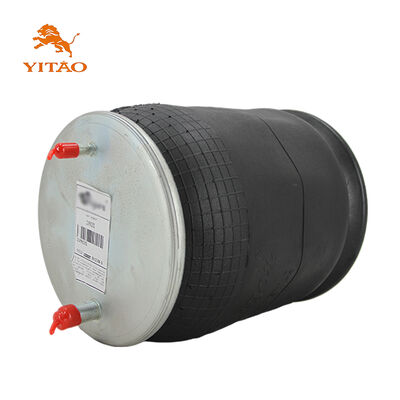

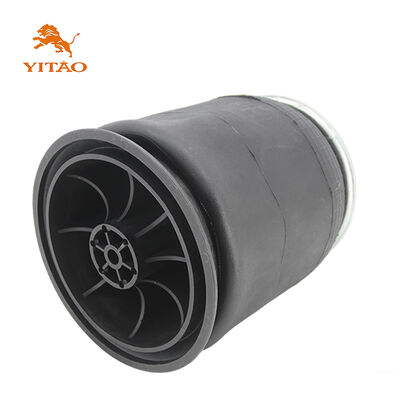

Product Images
1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 1 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 2 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 4 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 5 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 6 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 7 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 8 1V9131 Truck Air Spring Suitable for Firestone W01-M58-0736/Contitech 4159NP09 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
