Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension

Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension
Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension

Large Image :  Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9144/1V9144
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension

Description
OE Numbe8r: W01-358-9144,1T19F-7,1110.5-17A377,1R13-047 OE NO2: 1R14160,566283021,90557155,90557323,1681748C1,8377,6365
YITAO Number: 1V 9144 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Aluminum Packing: Neutral Packing Or Customized Packing
Highlight:

Firestone truck air spring bellows

,

1T19F-7 gas spring suspension

,

1110.5-17A377 truck suspension part

Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension
Product Overview

Manufactured to specifications matching Firestone 1T19F-7/Contitech 1110.5-17A377, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9144 / 1T19F-7 W01-358-9144 / 1T19F-7
Contitech 1110.5-17A377 11105-17A377
Goodyear 1R13-047 / 1R14160 / 566283021 1R13-047 / 1R14160 / 566283021
Neway 90557155 / 90557323 90557155 / 90557323
Navistar 1681748C1 1681748C1
Triangle 8377/6365 8377/6365
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 10.948 kg
Package Dimensions 30*30*39.5cm
Natural height 558mm
Maximum height 538mm
Minimum height 198mm
Extended Height 540mm
Compressed Height 180mm
Top Plate Width 289mm
Piston Width 260mm
1V 9144 Truck Air Spring Drawing
Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 0

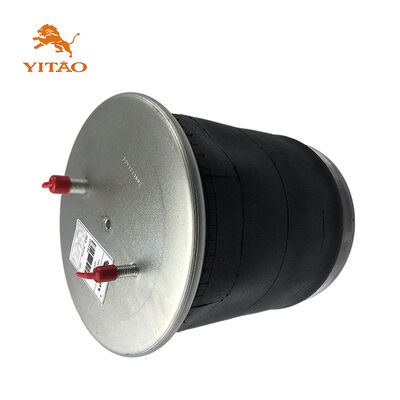

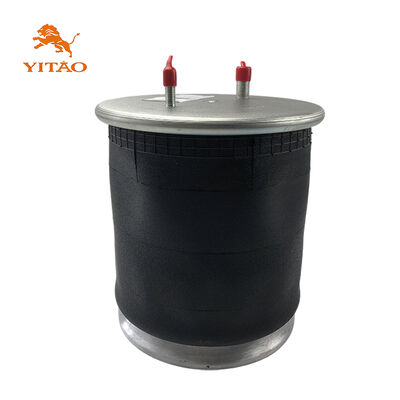

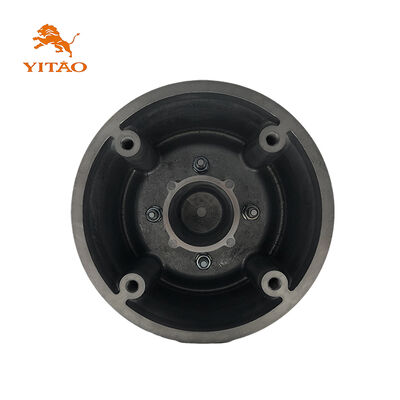

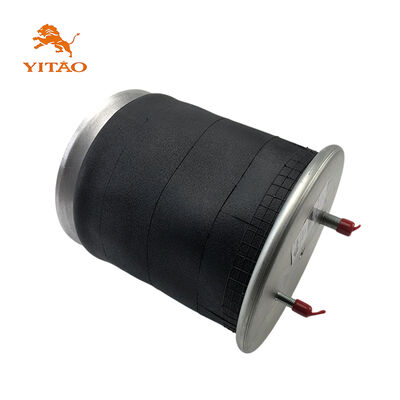

1T19F-7 1110.5-17A377 Product Images
Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 1 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 2
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 3 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 4 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 5 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 6 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 7 Firestone 1T19F-7 Bellows 1110.5-17A377 Gas Spring for Truck Suspension 8
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
