Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit

Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit
Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit

Large Image :  Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9156/1V9156
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit

Description
OE Numbe8r: W01-358-9156,1T19L-11,4813NP07,1110.5-21A370,1R13-045 OE NO2: SC2044,1681742C1,8370,6366,A7128,1R14-019,025,0500-0080
YITAO Number: 1V 9156/1V9156 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: Iron Packing: Neutral Packing Or Customized Packing
Highlight:

Truck air spring assembly kit

,

Contitech 4813NP07 air suspension

,

Firestone 1T19L-11 steel piston

Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit
Product Overview
Manufactured to specifications matching 1V9156/Firestone 1T19L-11/Contitech 4813NP07, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-9156 / 1T19L-11W01-358-9156 / 1T19L-11
Contitech4813NP07 / 1110.5-21A3704813NP07 / 11105-21A370
Goodyear1R13-045/1R14-019/0251R13-045/1R14-019/025
Peerless0500-00800500-0080
LelandSC2044SC2044
Navistar1681742C11681742C1
Triangle8370/63668370/6366
HendricksonA7128A7128
Technical Specifications
Specifications Parameters
Outer diameterφ275
Weight13.867 kg
Package Dimensions29.5*30*38cm
Natural height696mm
Maximum height680mm
Minimum height237mm
Extended Height660mm
Compressed Height240mm
Top Plate Width289mm
Piston Width260mm
Product Documentation
Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 0

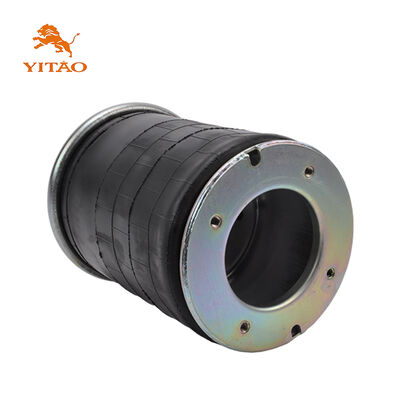

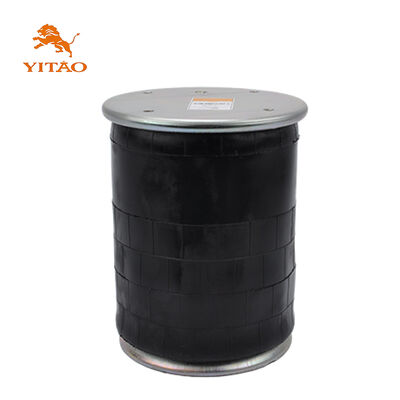

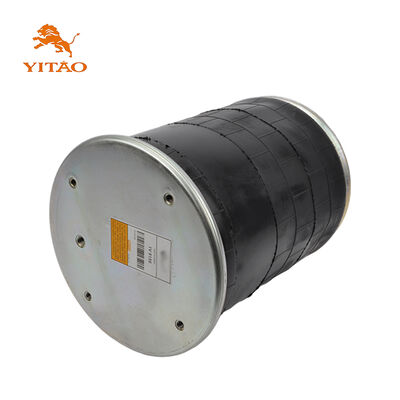

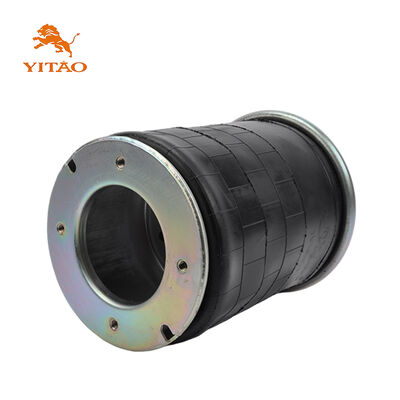

Product Images
Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 1 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 2 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 4 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 5 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 6 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 7 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 8 Assembly Truck Air Springs Contitech 4813NP07 Firestone 1T19L-11 Steel Piston Truck Air Suspension Kit 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • Is the sample available? Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • What is your warranty term? Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • Can I use my own logo and design on products? Yes, OEM is welcomed.
  • I can not find out the items what I want from your website, can you offer the products I need? Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
