Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177

Large Image : Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9177/1V9177

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	1 ~ 30 days
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177

Description

OE Numbe8r:	W01-358-9177,1110.5-17A316,4810N04,1R14-028,029,M3517,90557003,1090216,S2065	OE NO2:	6426,8316,6365,Sc2046,3529177,554779C,1003589177C,3130494
YITAO Number:	1V 9177/1V9177	Type:	Truck Air Spring
Application:	For Truck Air Suspension	Condition:	Brand New
Warranty:	12 Months	Typical Shipping Time:	3-10 Days
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Natural Rubber
Piston Material:	Aluminum	Packing:	Neutral Packing Or Customized Packing
Highlight:	Goodyear truck air spring 1R14-028 , Firestone truck air spring W01-358-9177 , heavy-duty truck air spring with warranty

Truck Air Spring 1R14-028 Goodyear Air Spring Firestone Air Spring W01-358-9177

Product Overview

Manufactured to specifications matching Firestone W01-358-9177/Goodyear 1R14-028, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9177	W01-358-9177
Contitech	1110.5-17A316 / 4810N04	11105-17A316 / 4810N04
Goodyear	1R14-028/029	1R14-028/029
Brake&Wheel	M3517	M3517
Holland(Neway)	90557003	90557003
R&S Truck&Body	1090216	1090216
Hendrickson Trailer	S2065	S2065
Tuthill	6426	6426
Triangle	8316/6365	8316/6365
Leland	Sc2046	Sc2046
Dayton	3529177	3529177
Navistar	554779C	554779C
Ridewell	1003589177C	1003589177C
Voivo	3130494	3130494

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	11.368 kg
Package Dimensions	303039.5cm
Natural height	558mm
Maximum height	538mm
Minimum height	196mm
Extended Height	540mm
Compressed Height	180mm
Top Plate Width	289mm
Piston Width	200mm

Product Documentation

1V 9177/1V9177 Truck Air Spring Drawing

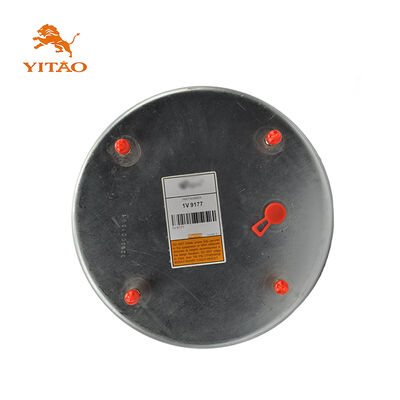

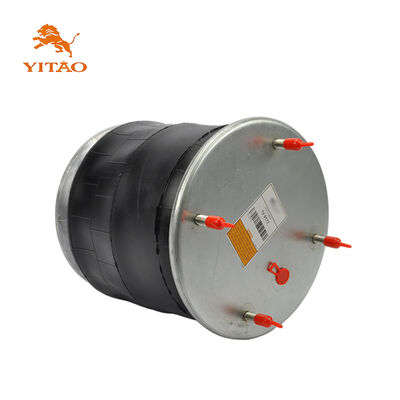

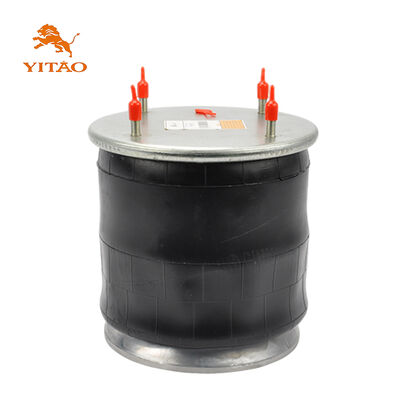

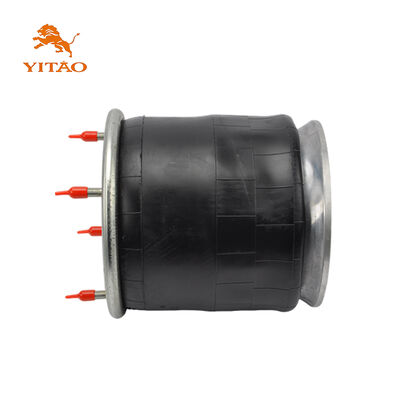

Product Images

W01-358-9177 1R14-028 Product Images

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase

Delivery Information

Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

Frequently Asked Questions

IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.

Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you
