Product Details:
|
| OE Number: | 1R14-028,566283021,11 10.5-17 A 316,64342,W01-358-9177,W01-358-9179,T19L-7,90557003,AR11151F | OE NO2: | 6365,3130494,554779C1,S-2065,1D28G-9177,352-9177,M3521 |
|---|---|---|---|
| OE NO3: | AS9177,AS9179,6426,1090216,AS-0010,AS-8316,AS91770 | YITAO Number: | 1V 9178/1V9178 |
| Type: | Truck Air Spring | Application: | For Truck Air Suspension |
| Condition: | Brand New | Warranty: | 12 Months |
| Typical Shipping Time: | 3-10 Days | Sealing Configuration: | Crimp Cover Plate + Vulcanized Sealing Plate |
| Material: | Natural Rubber | Piston Material: | Iron |
| Packing: | Neutral Packing Or Customized Packing | ||
| Highlight: | Goodyear truck air spring bellows,Volvo 3130494 air suspension assembly,1R14-028 air spring replacement |
||

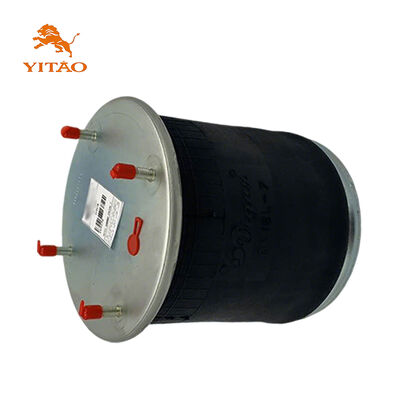

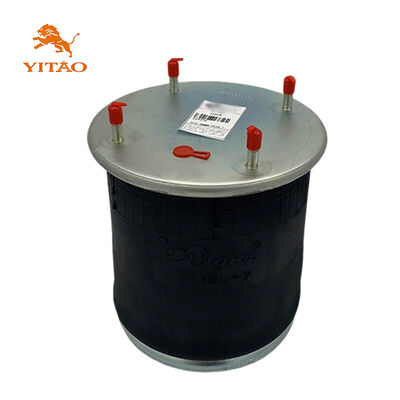

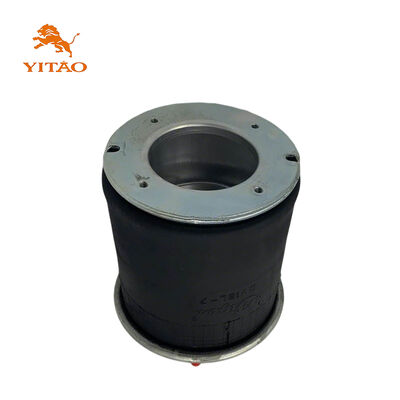

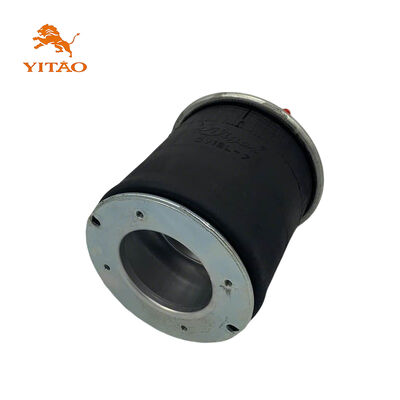

Manufactured to specifications matching Goodyear 1R14-028/Goodyear 566283021/Voivo 3130494, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Goodyear | 1R14-028 / 566283021 | 1R14-028 / 566283021 |
| Contitech | 11 10.5-17 A 316 / 64342 | 11105-17A316 / 64342 |
| Firestone | W01-358-9177 / W01-358-9179 / T19L-7 | W01-358-9177 / W01-358-9179 / T19L-7 |
| SAF Holland | 90557003 / AR11151F | 90557003 / AR11151F |
| Taurus | 6365 | 6365 |
| Voivo | 3130494 | 3130494 |
| Navistar / Fleetrite | 554779C1 | 554779C1 |
| Hendrickson | S-2065 | S-2065 |
| Automann | 1D28G-9177 | 1D28G-9177 |
| Dayton | 352-9177 | 352-9177 |
| Brake & Wheel | M3521 | M3521 |
| Fleetpride | AS9177 / AS9179 | AS9177 / AS9179 |
| Granning | 6426 | 6426 |
| R & S Truck | 1090216 | 1090216 |
| WatsonChalin | AS-0010 | AS-0010 |
| Triangle | AS-8316 | AS-8316 |
| TRP | AS91770 | AS91770 |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ275 |
| Weight | 12.155 kg |
| Package Dimensions | 29*29*38cm |
| Natural height | 563mm |
| Maximum height | 543mm |
| Minimum height | 188mm |
| Extended Height | 550mm |
| Compressed Height | 185mm |
| Top Plate Width | 289mm |
| Piston Width | 260mm |
Images shown are for reference only. Actual product may vary slightly.
