Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring

Certification
china Yitao Air Spring Group certification
china Yitao Air Spring Group certification
I'm Online Chat Now

Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring

Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring
Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring

Large Image :  Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8620SA/1V8620SA
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring

Description
OE Number: W01-M58-8620,1T17D-8.3,941MB,BPW30,50246,1R11-700,1T300-36,120262,3941P,1T300-36,204466 OE NO2: 05.429.40.03.0,MLF7047,15901,1DK21,D11-B30,UR7300-1T,9518117000
YITAO Number: 1V 8620SA/1V8620SA Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Typical Shipping Time: 3-10 Days
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Natural Rubber
Piston Material: / Packing: Neutral Packing Or Customized Packing
Highlight:

Goodyear truck air spring assembly

,

Firestone truck air spring 1T17D-8.3

,

heavy-duty truck air spring with warranty

Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring
Product Overview

Manufactured to specifications matching Firestone 1T17D-8.3/Goodyear 1R11-700, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-M58-8620 / 1T17D-8.3W01-M58-8620 / 1T17D-83
Contitech941MB/BPW30 / 50246941MB/BPW30 / 50246
Goodyear1R11-7001R11-700
CF Gomma1T300-361T300-36
Airtech120262/3941P120262/3941P
Pirelli1T300-36(204466)1T300-36(204466)
BPW05.429.40.03.00542940030
MeritorMLF7047MLF7047
Granning1590115901
Phoenix1DK211DK21
DunlopD11-B30D11-B30
TaurusUR7300-1TUR7300-1T
WABCO95181170009518117000
Technical Specifications
Specifications Parameters
Outer diameterφ255
Weight6.302 kg
Package Dimensions27*27*36cm
Natural heightTo be updated
Maximum heightTo be updated
Minimum heightTo be updated
Extended HeightTo be updated
Compressed HeightTo be updated
Top Plate Width262mm
Piston WidthTo be updated
Product Documentation
Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 0

1V 8620SA/1V8620SA Truck Air Spring Drawing

Product Images

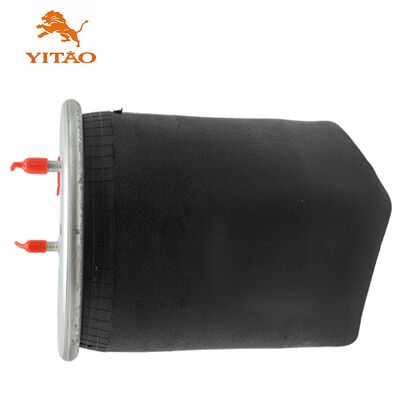

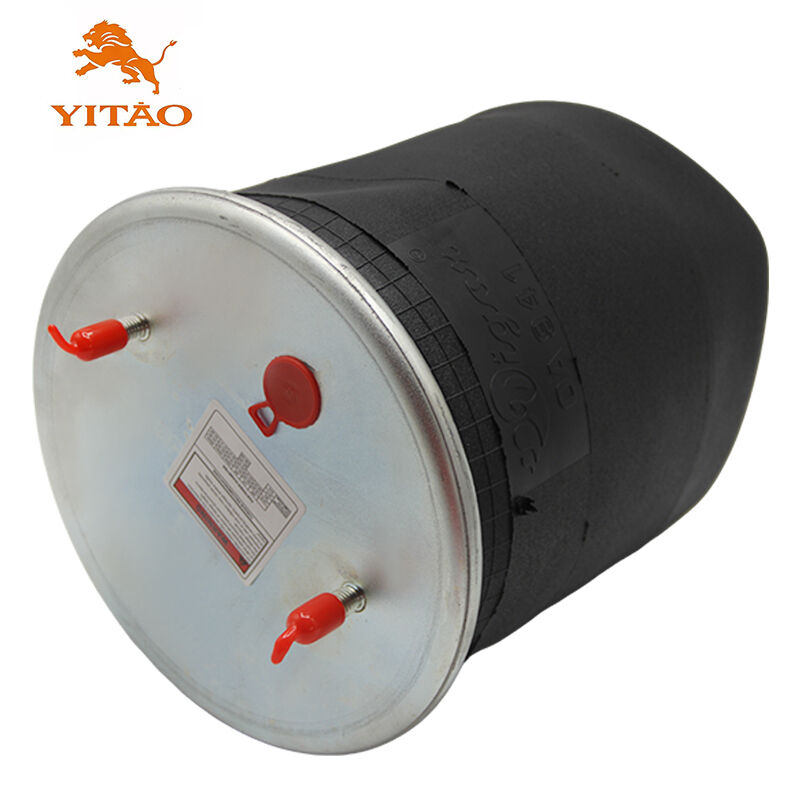

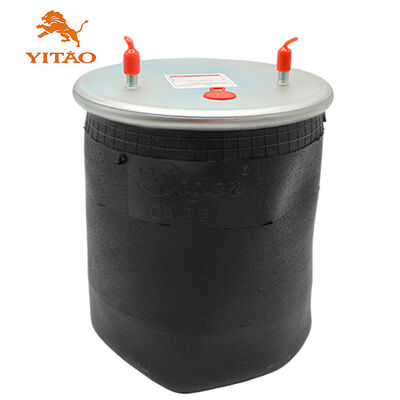

Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 1 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 2 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 3

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 4 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 5 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 6 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 7 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 8 Goodyear 1R11-700 Air Spring Assembly Firestone 1T17D-8.3 Truck Air Spring 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE? Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM? Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS? Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED? Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
