1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41

1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41
1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41

Large Image :  1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8612
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41

Description
OE Number: W01-M58-8612,4022NP05,1R11-781,D11B41,3.229.0033.00,2619V Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Minimum Order Quantity: 50 Pieces
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring Contitech 4022NP05

,

Truck Air Spring Dunlop FR D11B41

,

Truck Air Spring with warranty

1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41

Manufactured to specifications matching Contitech 4022NP05/Dunlop FR D11B41, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8612 W01 M58 8612/W01M588612/W01M58-8612/W01-M588612/W01-M58-8612
Contitech 4022NP05 :4022NP05
Goodyear 1R11-781 1R11 781/1R11781/1R11-781
Dunlop FR D11B41 :D11B41
SAF 3.229.0033.00 带小数点的多型号组合
SAF Type 2619V :2619V
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 7.407 kg
Package Dimensions 28*28*37.5cm
Natural height 539mm
Maximum height 516mm
Minimum height 178mm
Extended Height 532mm
Compressed Height 187mm
Top Plate Width 262mm
Piston Width 261mm
1V8612 Truck Air Spring Drawing
1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 0

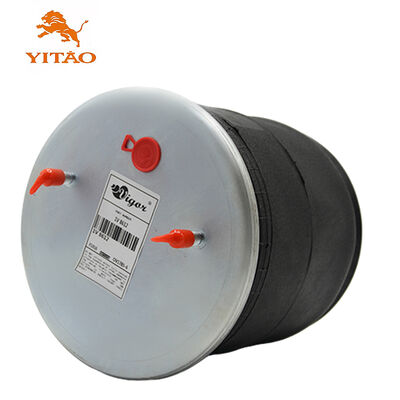

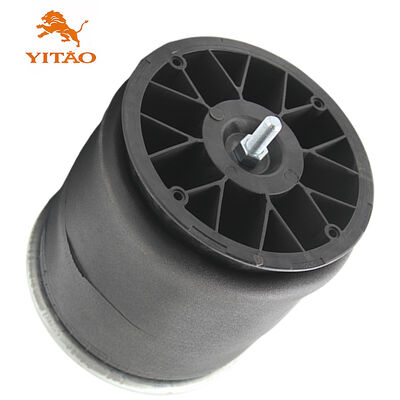

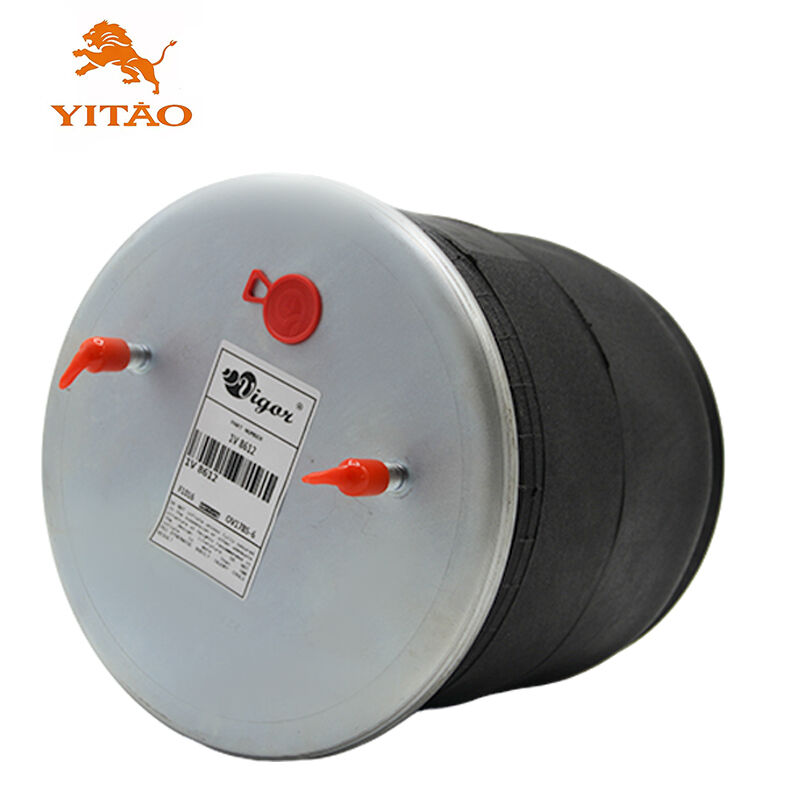

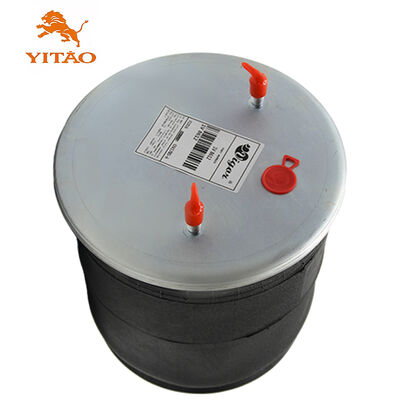

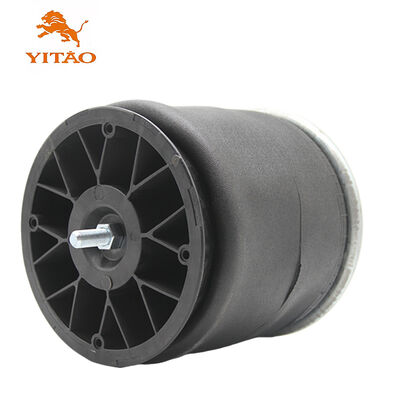

4022NP05 FR D11B41 Product Images
1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 1 1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 2 1V8612 Truck Air Spring Suitable for Contitech 4022NP05/Dunlop FR D11B41 3
Images shown are for reference only. Actual product may vary slightly.
