1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30

Certification
china Yitao Air Spring Group certification
china Yitao Air Spring Group certification
I'm Online Chat Now

1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30

1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30
1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30

Large Image :  1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8619
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30

Description
OE Number: W01-M58-8619,8668/8,C01-M58-1267,1T17D-8.3,941MB,BPW30,1R11-701,D11B30,9518117620, OE NO2: 05.429.40.28.1,05.429.43.20.0,BPW30,S2290941200,MLF7046
OE NO3: 3941K,1DK21,KR730-01,1TC300-36,15918,130222 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Minimum Order Quantity: 50 Pieces
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Firestone C01-M58-1267

,

Truck Air Spring for Contitech BPW30

,

Truck Air Spring with warranty

1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30
Product Overview

Manufactured to specifications matching Firestone C01-M58-1267/Contitech BPW30, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.


Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8619/8668/8 / C01-M58-1267 / 1T17D-8.3 W01 M58 8619/W01M588619/W01M58-8619/W01-M588619/W01-M58-8619/:8668/:8 / C01 M58 1267/C01M581267/C01M58-1267/C01-M581267/C01-M58-1267 / 1T17D 8.3/1T17D8.3/1T17D-8.3
Contitech 941MB/BPW30 :941MB/:BPW30
Goodyear 1R11-701 1R11 701/1R11701/1R11-701
Dunlop FR D11B30 :D11B30
WABCO 9518117620 :9518117620
BPW 05.429.40.28.1 / 05.429.43.20.0 05.429.40.28.1 / 05.429.43.20.0
BPW Type BPW30 :BPW30
SAF S2290941200 :S2290941200
Meritor MLF7046 :MLF7046
Pirelli 1TC300-36 1TC300 36/1TC30036/1TC300-36
Granning 15918 :15918
Airtech 130222 / 3941K :130222 / :3941K
Phoenix 1DK21 :1DK21
Taurus KR730-01 KR730 01/KR73001/KR730-01
CF Gomma 1TC300-36 1TC300 36/1TC30036/1TC300-36
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 11.016 kg
Package Dimensions 27*27*36cm
Natural height 713mm
Maximum height 693mm
Minimum height 263mm
Extended Height 720mm
Compressed Height 264mm
Top Plate Width 269mm
Piston Width 201mm

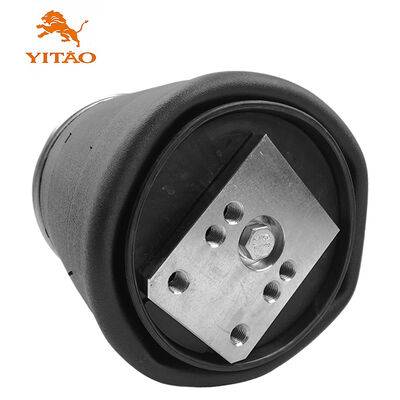

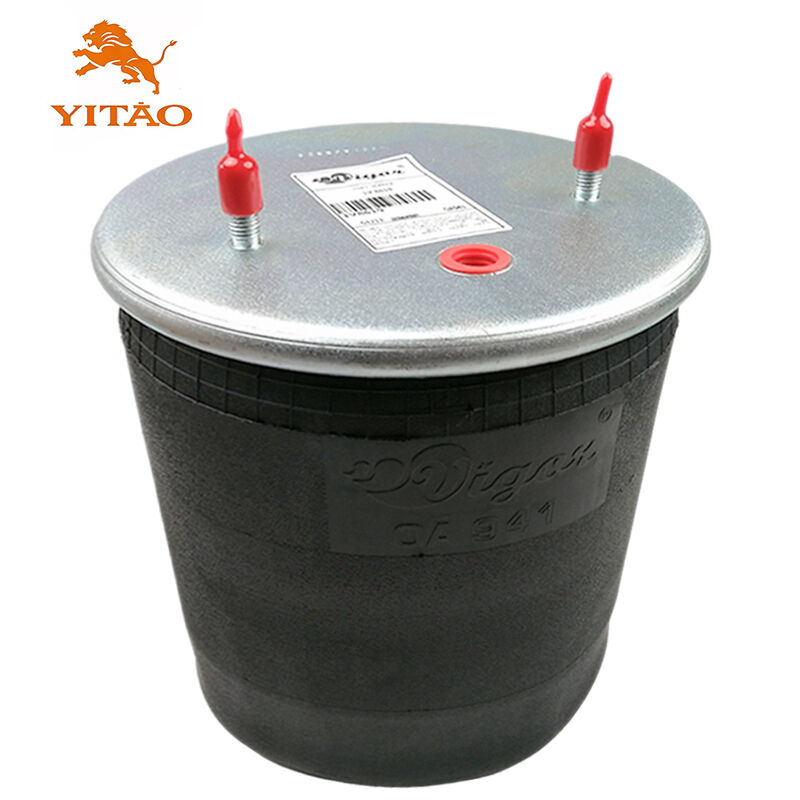

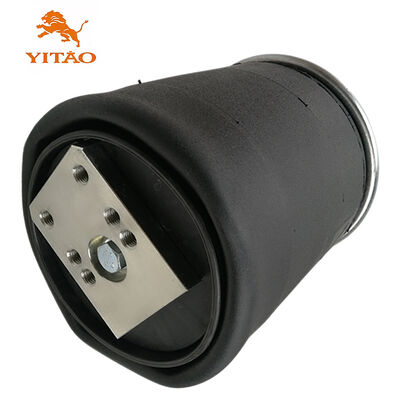

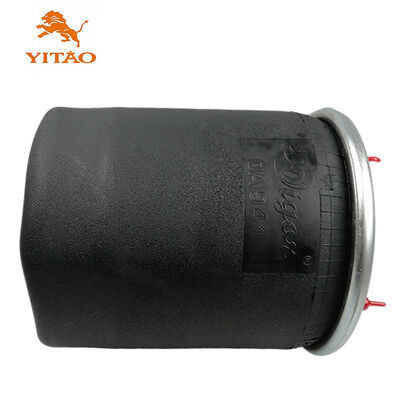

Product Drawings & Images
1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 0 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 1 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 2 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 3
Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 4 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 5 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 6 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 7 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 8 1V8619 Truck Air Spring Suitable for Firestone C01-M58-1267/Contitech BPW30 9

Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
