1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176

Certification
china Yitao Air Spring Group certification
china Yitao Air Spring Group certification
I'm Online Chat Now

1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176

1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176
1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176

Large Image :  1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8713
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176

Description
OE Number: W01-358-8708,1T17CA-6.5,1R13-177,566263078,1010-16 P 526,1R13-250,S-21966 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Minimum Order Quantity: 50 Pieces
Typical Shipping Time: 3-10 Days Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Firestone 1T17CA-6.5

,

Truck Air Spring for Goodyear 1R13-176

,

Truck Air Spring with warranty

1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176
Product Overview

Manufactured to specifications matching Firestone 1T17CA-6.5/Goodyear 1R13-176, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8713 / 1T17CA-6.5 W01 358 8713/W013588713/W01358-8713/W01-3588713/W01-358-8713 / 1T17CA 6.5/1T17CA6.5/1T17CA-6.5
Contitech 1010-17.5S533 1010 17.5S533/101017.5S533/1010-17.5S533
Goodyear 1R13-140 / 1R13-176 1R13 140/1R13140/1R13-140 / 1R13 176/1R13176/1R13-176
Airtech 137082 / 38713K :137082 / :38713K
Triangle 8533 / 6382 :8533 / :6382
Hendrickson HKA-180 / S22948 HKA 180/HKA180/HKA-180 / :S22948
Technical Specifications
Specifications Parameters
Outer diameter φ270
Weight 8.038 kg
Package Dimensions 28*28*37.5cm
Natural height 552mm
Maximum height 532mm
Minimum height 173mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 262mm
Piston Width 234mm
Product Documentation
1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 0

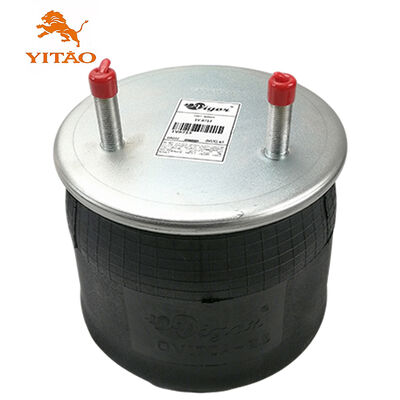

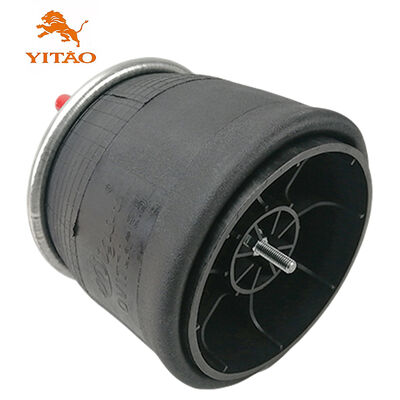

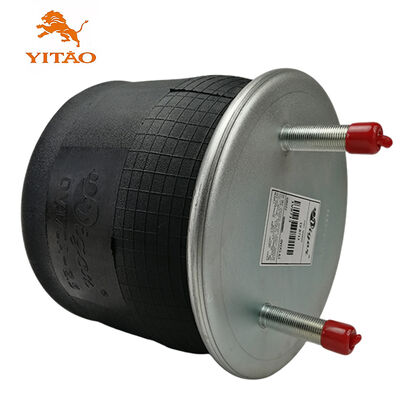

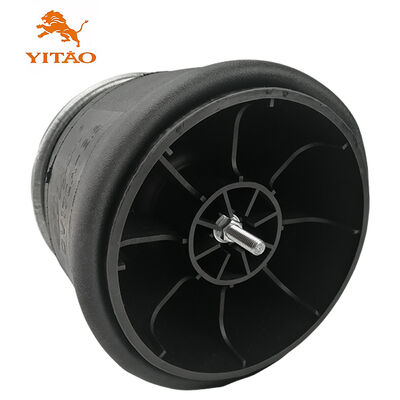

1T17CA-6.5;1R13-176 Product Images
1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 1 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 2 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 4 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 5 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 6 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 7 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 8 1V8713 Truck Air Spring Suitable for Firestone 1T17CA-6.5/Goodyear 1R13-176 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
