1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088

1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088
1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088

Large Image :  1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8468
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088

Description
OE Number: 1R12-654,1R12-1049,W01-M58-8468,21132005,04,21244322,21669088 Type: Truck Air Spring
Application: For Truck Air Suspension Condition: Brand New
Warranty: 12 Months Minimum Order Quantity: 50 Pieces
Typical Shipping Time: 3-10 Days Sealing Configuration: Press-fit Cover Plate + Flange
Material: Natural Rubber Piston Material: Plastic
Packing: Neutral Packing Or Customized Packing
Highlight:

Truck Air Spring for Goodyear 1R12-1049

,

Voivo 21669088 Air Spring

,

Truck Air Spring with warranty

1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088
1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088
Product Overview
Manufactured to specifications matching Goodyear 1R12-1049/AB Voivo 21669088, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Goodyear 1R12-654 / 1R12-1049 1R12 654/1R12654/1R12-654 / 1R12 1049/1R121049/1R12-1049
Firestone W01-M58-8468 W01 M58 8468/W01M588468/W01M58-8468/W01-M588468/W01-M58-8468
Voivo 21132005/04 / 21244322/21669088 :21132005/:04 / :21244322/:21669088
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 6.102 kg
Package Dimensions 27.5*27.5*37cm
Natural height 578mm
Maximum height 528mm
Minimum height 165mm
Extended Height 528mm
Compressed Height 165mm
Top Plate Width 231mm
Piston Width 256mm
1V8468 Truck Air Spring Drawing
1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 0

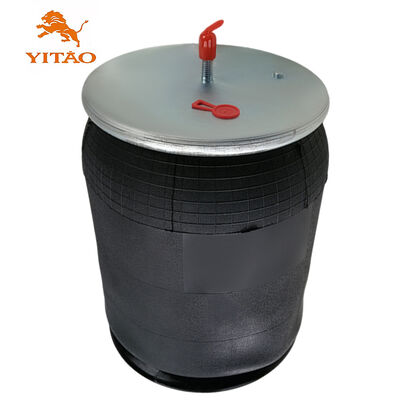

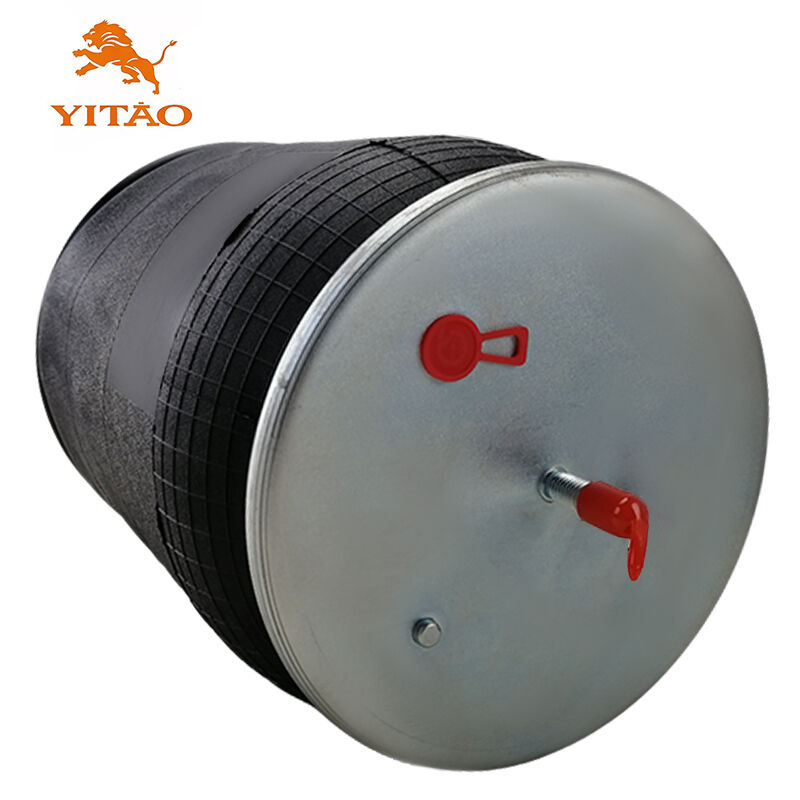

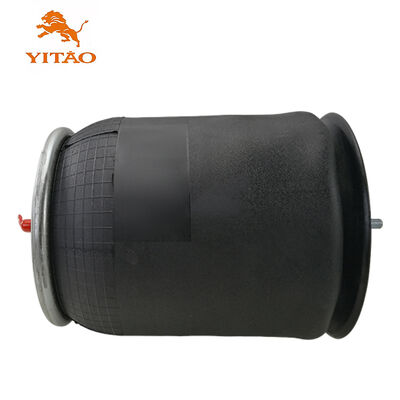

1R12-1049 21669088 Product Images
1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 1
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 2 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 3 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 4 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 5 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 6 1V8468 Truck Air Spring Suitable for Goodyear 1R12-1049/AB Voivo 21669088 7
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
  • IS THE SAMPLE AVAILABLE?
    Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
  • WHAT IS YOUR WARRANTY TERM?
    Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
  • CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
    Yes, OEM is welcomed.
  • I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
    Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
