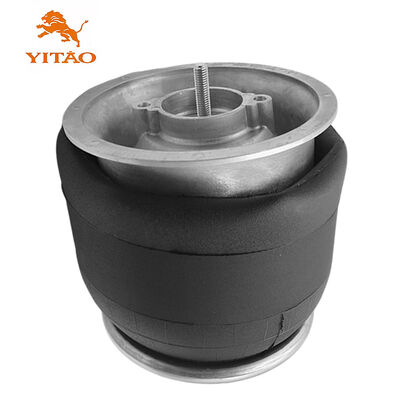

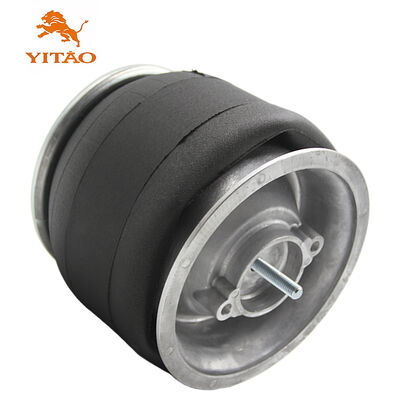

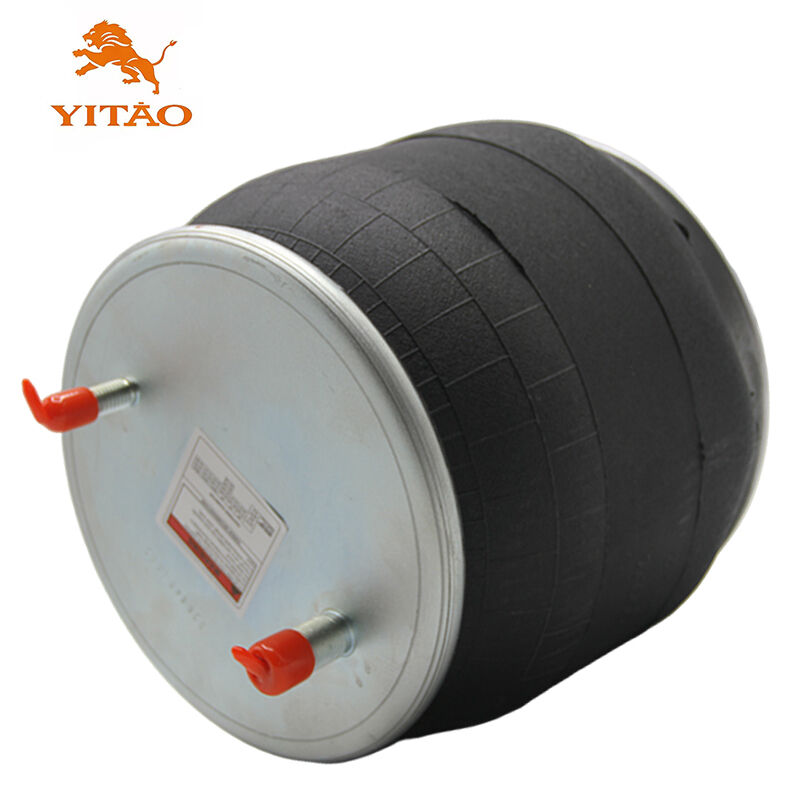

1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522

1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522
1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522

Large Image :  1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8204
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522

Description
OE Number: W01-358-8204,1T15M-2,910-12P484,1R12-508,1R12-522,566243067 OE NO2: XB-SPN-053-37,XB-SPN-053-60,8484,6361,90557210
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Aluminum
Highlight:

Truck Air Spring for Firestone 1T15M-2

,

Truck Air Spring for Goodyear 1R12-522

,

Heavy Duty Truck Air Spring

1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522
1V8204 Truck Air Spring Manufactured to specifications matching Firestone 1T15M-2/Goodyear 1R12-522, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Product Overview

Manufactured to specifications matching Firestone 1T15M-2/Goodyear 1R12-522, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8204 / 1T15M-2 W01 358 8204/W013588204/W01358-8204/W01-3588204/W01-358-8204 / 1T15M 2/1T15M2/1T15M-2
Contitech 910-12P484 910 12P484/91012P484/910-12P484
Goodyear 1R12-508 / 1R12-522 / 566243067 1R12 508/1R12508/1R12-508 / 1R12 522/1R12522/1R12-522 / :566243067
Neway 90557210 :90557210
Binkley XB-SPN-053-37 / XB-SPN-053-60 XB SPN 053 37/XBSPN05337/XBSPN-053-37/XB-SPN053-37/XB-SPN-053-37 / XB SPN 053 60/XBSPN05360/XBSPN-053-60/XB-SPN053-60/XB-SPN-053-60
Triangle 8484/6361 :8484/:6361
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 7.171 kg
Package Dimensions 28*28*31.5cm
Natural height 362mm
Maximum height 342mm
Minimum height 109mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 231mm
Piston Width 242mm
1V8185 Truck Air Spring Drawing

1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 0

Product Images
1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 1 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 2 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 3
Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 4 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 5 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 6 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 7 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 8 1V8204 Truck Air Spring Suitable for Firestone 1T15M-2/Goodyear 1R12-522 9

Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
