1V8104 Truck Air Spring Suitable for Firestone 1T19LB-12/TI9L SERIES/C01-968-1163

Large Image : 1V8104 Truck Air Spring Suitable for Firestone 1T19LB-12/TI9L SERIES/C01-968-1163

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V8104

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	1 ~ 30 days
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V8104 Truck Air Spring Suitable for Firestone 1T19LB-12/TI9L SERIES/C01-968-1163

Description

OE Number:	W01-M58-8104,1T9L-11,1T19LB-12,TI9L	OE NO2:	SERIES C01-968-1163,TI9L SERIES C01-M58-1163
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Iron
Highlight:	Firestone truck air spring , Truck air spring replacement , 1T19LB-12 air spring

1V8104 Truck Air Spring Suitable for Firestone 1T19LB-12/TI9L SERIES/C01-968-1163

1V8104 Truck Air Spring Manufactured to specifications matching Firestone 1T19LB-12/TI9L SERIES/C01-968-1163, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8104	W01 M58 8104/W01M588104/W01M58-8104/W01-M588104/W01-M58-8104
Firestone	1T9L-11 / 1T19LB-12	1T9L 11 1T19LB 12/1T9L111T19LB12/1T9L-11/1T19LB-12
Firestone	T19L SERIES C01-968-1163	T19L SERIES C01 968 1163/T19LSERIESC019681163/T19L SERIES C01-968-1163
Firestone	T19L SERIES C01-M58-1163	T19L SERIES C01 M58 1163/T19LSERIESC01M581163/T19L SERIES C01-M58-1163

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	17.176 kg
Package Dimensions	303043.5cm
Natural height	735mm
Maximum height	715mm
Minimum height	259mm
Extended Height	710mm
Compressed Height	260mm
Top Plate Width	289mm
Piston Width	261mm

1V8104 Truck Air Spring Drawing

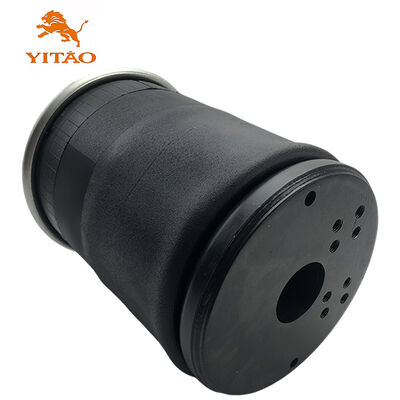

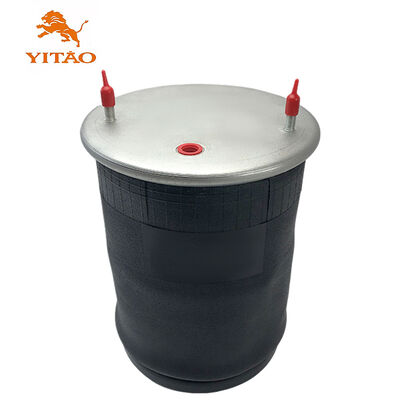

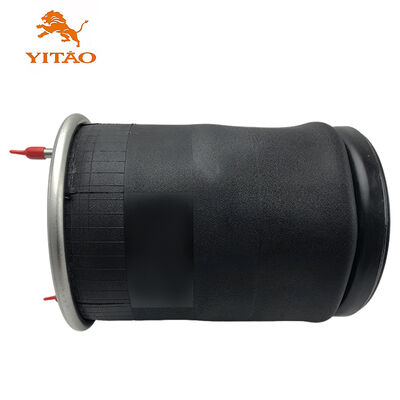

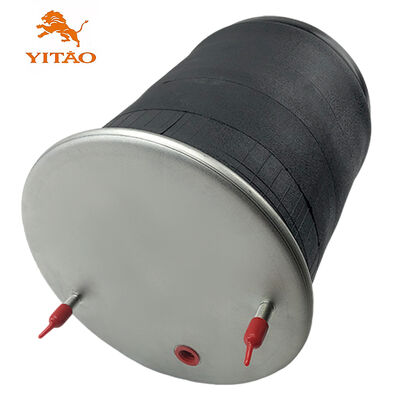

1T19LB-12 W01-M58-8104 Product Images

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase

Delivery Information

Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

Frequently Asked Questions

1. IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

2. WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
