1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176

1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176
1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176

Large Image :  1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 7402
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176

Description
OE Number: 1V 7402 Truck Air Spring Suitable For Firestone 1T17GKA-55/Contitech 1010B-16/P162/Goodyear 1R13-176 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone 1T17GKA-55

,

Truck Air Spring for Goodyear 1R13-176

,

Firestone Goodyear compatible air spring

1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176
1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176
Product Overview

1V7402 Truck Air Spring manufactured to specifications matching Firestone 1T17GKA-55/Goodyear 1R13-176. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-7402 / W01-358-8713 W01 358 7402 W01 358 8713/W013587402W013588713/W01-358-7402/W01-358-8713
Firestone 1T17GKA-55 1T17GKA 55/1T17GKA55/1T17GKA-55
Contitech 1010B-16 P 162 1010B 16 P 162/1010B16P162/1010B-16 P 162
Contitech 11 10.5A-16 11 10.5A 16/1110.5A16/11 10.5A-16
Holland(Neway) 90557402 :90557402
Holland(Neway) 95.4016 95.4016
Goodyear 1R13-176 1R13 176/1R13176/1R13-176
Technical Specifications
Specifications Parameters
Outer diameter φ270
Weight 7.629 kg
Package Dimensions 28*28*31.5cm
Natural height 519mm
Maximum height 499mm
Minimum height 263mm
Extended Height 510mm
Compressed Height 165mm
Top Plate Width 262mm
Piston Width 265mm
1V7402 Truck Air Spring Drawing
1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 0

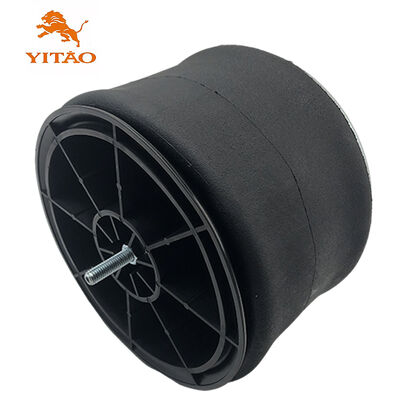

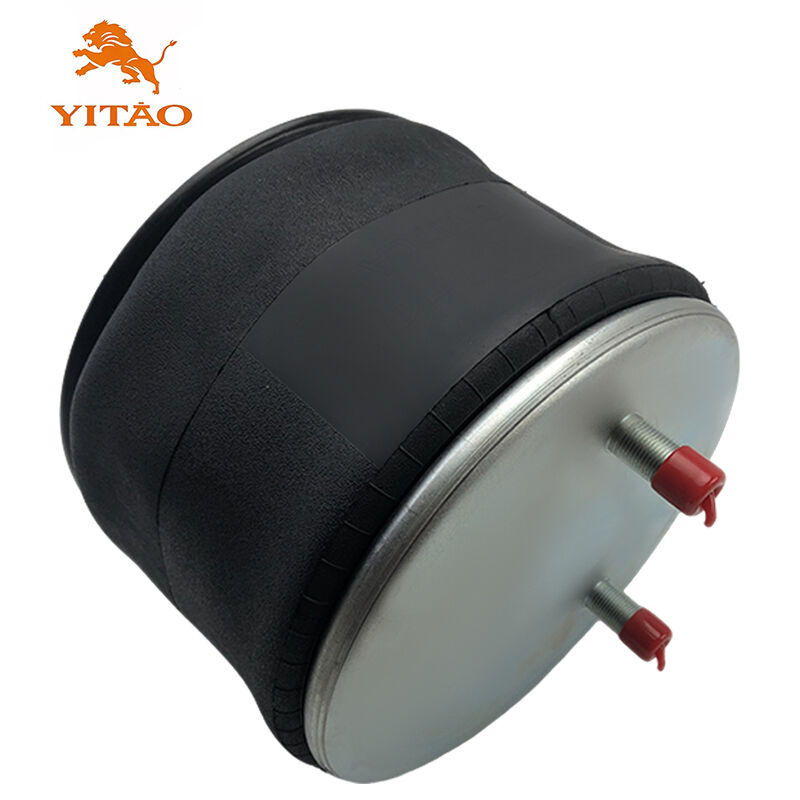

1T17GKA-55 1R13-176 Product Images
1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 1 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 2 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 3
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 4 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 5 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 6 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 7 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 8 1V7402 Truck Air Spring Suitable for Firestone 1T17GKA-55/Goodyear 1R13-176 9
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
Frequently Asked Questions
1. IS THE SAMPLE AVAILABLE?
Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
2. WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM is welcomed.
4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
