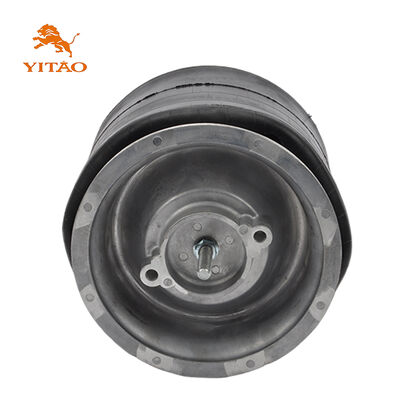

1V9335 Truck Air Spring Suitable for Goodyear 1R12-620/Hendrickson 569172

Large Image : 1V9335 Truck Air Spring Suitable for Goodyear 1R12-620/Hendrickson 569172

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V9335

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	1 ~ 30 days
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V9335 Truck Air Spring Suitable for Goodyear 1R12-620/Hendrickson 569172

Description

OE Number:	W01-358-9335,910-14P465,1R12-620,566-24-3-076,566-24-3-104,Ford F3HS5580AA,Bracket 6042,8465,6362,569172,569171	Type:	Truck Air Spring
Application:	For Truck Air Suspension	Packing:	Neutral Packing Or Customized Packing
Condition:	New	Warranty:	1 Year
Minimum Order Quantity:	50 Pieces	Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate
Material:	Rubber	Piston Material:	Aluminum
Highlight:	Truck Air Spring for Goodyear 1R12-620 , Truck Air Spring for Hendrickson 569172 , Heavy-duty Truck Air Spring with warranty

1V9335 Truck Air Spring Suitable for Goodyear 1R12-620/Hendrickson 569172

1V9335 Truck Air Spring Manufactured to specifications matching Goodyear 1R12-620/Hendrickson 569172, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9335	W01 358 9335/W013589335/W01358-9335/W01-3589335/W01-358-9335
Contitech	910-14P465	910 14P465/91014P465/910-14P465
Goodyear	1R12-620/566-24-3-076	1R12 620 566 24 3 076/1R12620566243076/1R12-620/566-24-3-076
Goodyear	566-24-3-104	566 24 3 104/566243104/566-24-3-104
Ford	F3HS5580AA	F3HS5580AA
Note	Bracket 6042	Bracket 6042
Triangle	8465/6362	8465 6362/84656362/8465/6362
Hendrickson	569172/569171	569172 569171/569172569171/569172/569171

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	7.78 kg
Package Dimensions	272745cm
Natural height	434mm
Maximum height	414mm
Minimum height	99mm
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	231mm
Piston Width	242mm

1V9335 Truck Air Spring Drawing

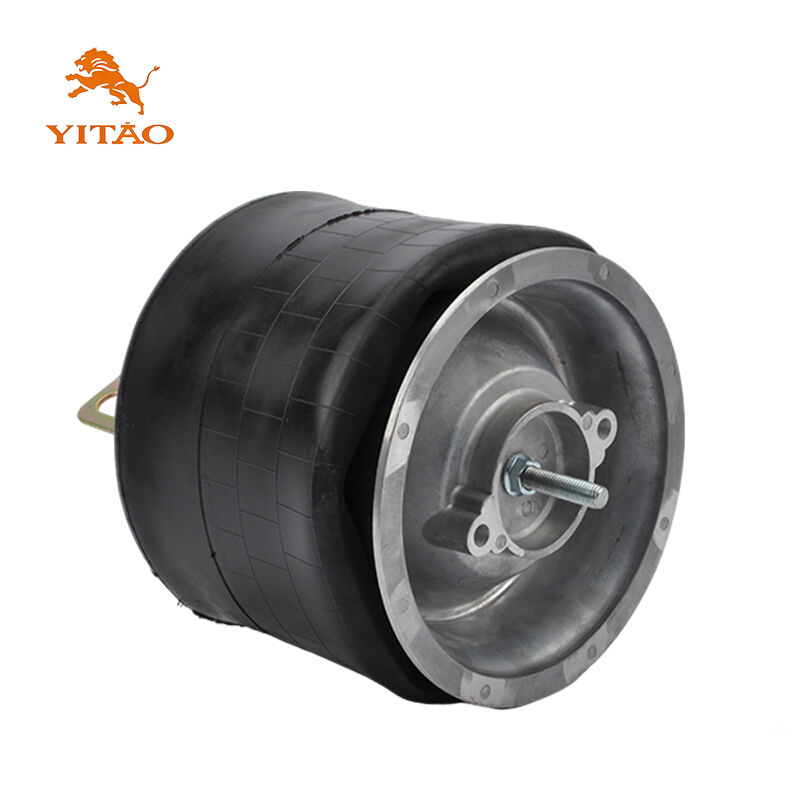

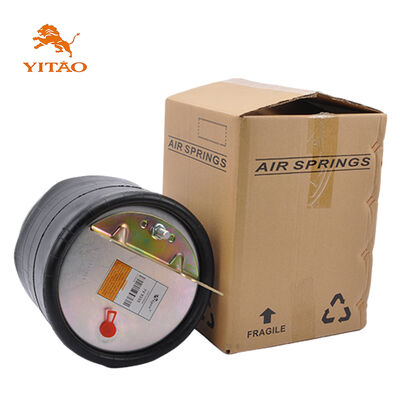

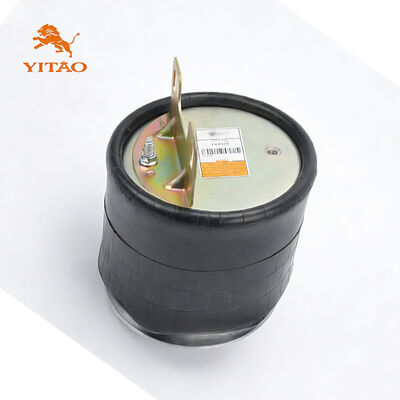

1R12-620 569172 Product Images

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase

Delivery Information

Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

Frequently Asked Questions

1. IS THE SAMPLE AVAILABLE?

Yes, usually we send the samples by TNT, DHL, FEDEX or UPS. It will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

2. WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.

3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM is welcomed.

4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
