0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37

0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37
0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37

Large Image :  0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 0V 6367
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37

Description
OE Number: W01-M58-6367,4022NP03,1R11-714,1DK22E-9 OE NO2: 3.229.0029.00,3.229.2129.00,3.229.2229.00,3.229.2429.00,2618V
OE NO3: 9518117100,9518117140,9518117510,KR725-28,D12B14,1T300-37 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Plastic
Highlight:

Truck Air Spring for Phoenix 1DK22E-9

,

Truck Air Spring with warranty

,

Taurus KR725-28 Air Spring

0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37
0V 6367 Truck Air Spring Manufactured to specifications matching Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-6367 W01 M58 6367 / W01M586367 / W01M58-6367 / W01-M586367 / W01-M58-6367
Contitech 4022NP03 :4022NP03
Goodyear 1R11-714 1R11 714 / 1R11714 / 1R11-714
Phoenix 1DK22E-9 1DK22E 9 / 1DK22E9 / 1DK22E-9
Taurus KR725-28 KR725 28 / KR72528 / KR725-28
Dunlop FR D12B14 :D12B14
CF Gomma 1T300-37 1T300 37 / 1T30037 / 1T300-37
WABCO 9518117100/9518117140/9518117510 9518117100 9518117140 9518117510 / 951811710095181171409518117510 / 9518117100/9518117140/9518117510
SAF 3.229.0029.00/3.229.2129.00 3 229 0029 00 3 229 2129 00 / 32290029003229212900 / 3.229.0029.00/3.229.2129.00
SAF 3.229.2229.00/3.229.2429.00 3 229 2229 00 3 229 2429 00 / 32292229003229242900 / 3.229.2229.00/3.229.2429.00
SAF Type 2618V :2618V
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 7.912 kg
Package Dimensions 28*28*37.5cm
Natural height 539mm
Maximum height 519mm
Minimum height 184mm
Extended Height 540mm
Compressed Height 185mm
Top Plate Width 262mm
Piston Width 240mm
0V 6367 Truck Air Spring Drawing
0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 0

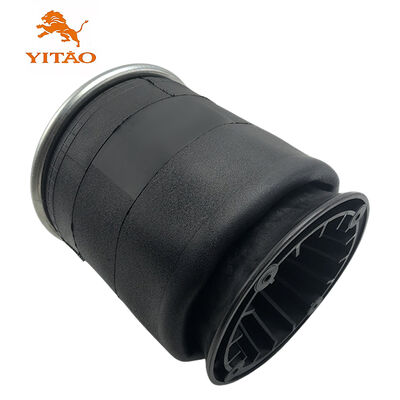

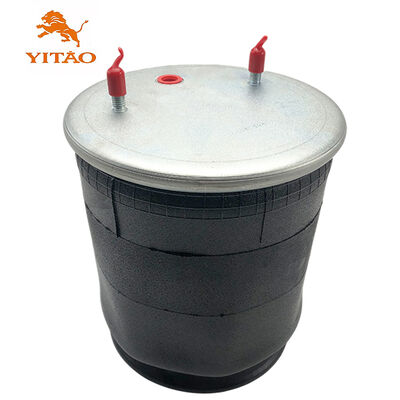

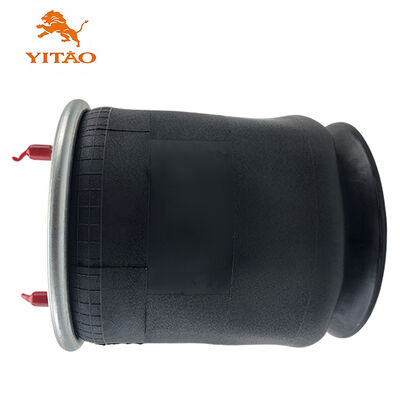

Product Images
0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 1 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 2 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 3 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 4 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 5 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 6 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 7 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 8 0V 6367 Truck Air Spring Suitable for Phoenix 1DK22E-9/Taurus KR725-28/CF Gomma 1T300-37 9
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1 to 30 business days.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
FAQ
1. IS THE SAMPLE AVAILABLE?
YES, Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
2. WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the date of shipment. For product failures within the warranty period, the customer is responsible for replacement part costs.
3. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
YES, OEM is welcomed.
4. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
YES. One of our service term is sourcing the products that our customers need, So please tell us the details information of the item.
