1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05

1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05
1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05

Large Image :  1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 6338
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05

Description
OE Number: W01-M58-6338,1T19L-7,4810NP05,61162,1R14-730,16092,133422 OE NO2: 1T19E-1,205456,KR621-18,1D28A10,133422,32918K,9518147300,MLF7025
OE NO3: 3.229.2127.00,3.229.2427.00,D13B25，32918K,3.229.0027.00,2918V Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Iron
Highlight:

Truck Air Spring for Firestone W01-M58-6338

,

Truck Air Spring for Contitech 4810NP05

,

Truck Air Spring with warranty

1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05
Product Overview

Manufactured to specifications matching Firestone W01-M58-6338/Contitech 4810NP05, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-6338 / 1T19L-7 W01 M58 6338/W01M586338/W01M58-6338/W01-M586338/W01-M58-6338 / 1T19L 7/1T19L7/1T19L-7
Contitech 4810NP05/61162 :4810NP05/:61162
Goodyear 1R14-730 1R14 730/1R14730/1R14-730
Granning 16092/133422 / 32918K :16092/:133422 / :32918K
SAF 3.229.0027.00 / 2918V / 3.229.2127.00 / 3.229.2427.00 3.229.0027.00 / :2918V / 3.229.2127.00 / 3.229.2427.00
Dunlop FR D13B25 / 1T19E-1 / 205456 :D13B25 / 1T19E 1/1T19E1/1T19E-1 / :205456
Taurus KR621-18 KR621 18/KR62118/KR621-18
Phoenix 1D28A10 :1D28A10
Airtech 133422 / 32918K :133422 / :32918K
WABCO 9518147300 :9518147300
Meritor MLF7025 :MLF7025
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 12.358kg
Package Dimensions 30*30*39.5cm
Natural height 563mm
Maximum height 538mm
Minimum height 197mm
Extended Height 557mm
Compressed Height 185mm
Top Plate Width 289mm
Piston Width 260mm
Product Drawing
1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 0

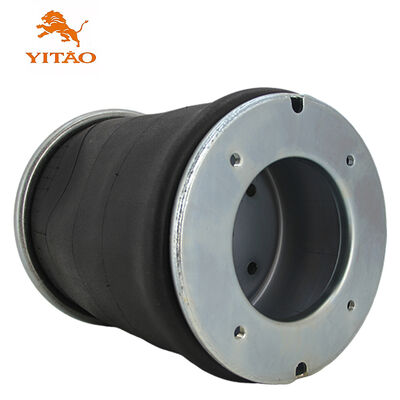

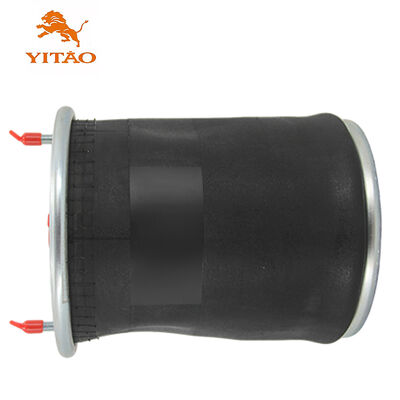

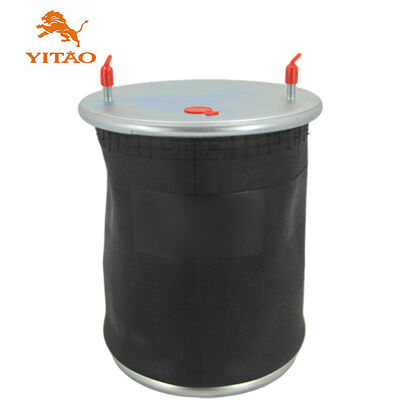

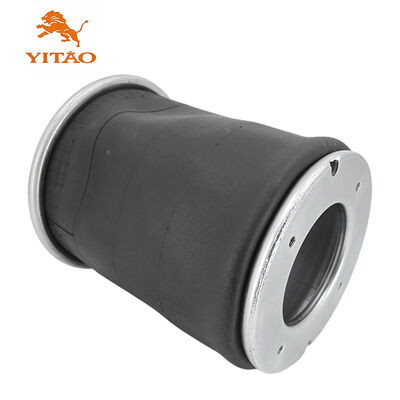

Product Images
1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 1 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 2 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 3 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 4 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 5 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 6 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 7 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 8 1V 6338 Truck Air Spring Suitable for Firestone W01-M58-6338/Contitech 4810NP05 9
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
