0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683

Large Image : 0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	0A887

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683

Description

OE Number:	W01-M58-8683,1T15LNR3,887MK1,60211	OE NO2:	16224F,MLF7053,0392022,134782,38683K
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Press-fit Cover Plate + Flange	Material:	Rubber
Piston Material:	Iron
Highlight:	Truck Air Spring Granning 16224F , Truck Air Spring Firestone W01-M58-8683 , Truck Air Spring with warranty

0A 887 Truck Air Spring Suitable for Granning 16224F/Firestone W01-M58-8683

0A887 Truck Air Spring manufactured to specifications matching Granning 16224F/Firestone W01-M58-8683. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Reference Numbers

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8683 / 1T15LNR3	W01 M58 8683/W01M588683/W01M58-8683/W01-M588683/W01-M58-8683 / :1T15LNR3
Contitech	887MK1 / 60211	:887MK1 / :60211
Airtech	134782 / 38683K	:134782 / :38683K
Granning	16224F	:16224F
Meritor	MLF7053	:MLF7053
VDL/DAF	0392022	:0392022
DAF	0392022	:0392022

Technical Specifications

Specifications	Parameters
Outer diameter	φ205
Weight	8.672 kg
Package Dimensions	282846.5cm
Natural height	623mm
Maximum height	580mm
Minimum height	198mm
Extended Height	475mm
Compressed Height	190mm
Top Plate Width	231mm
Piston Width	167mm

Product Drawing

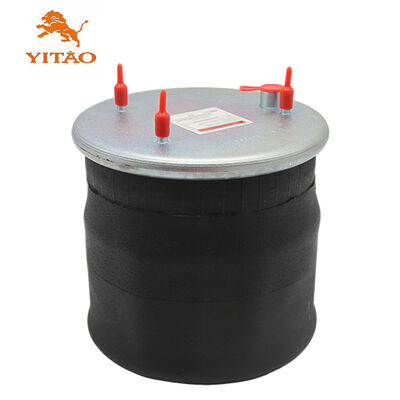

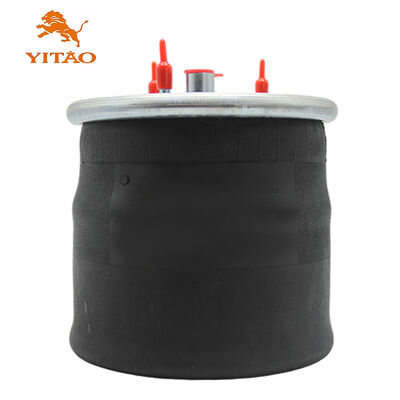

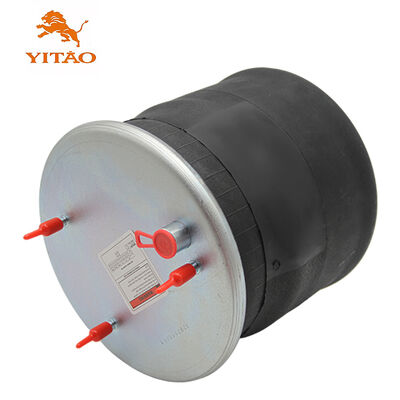

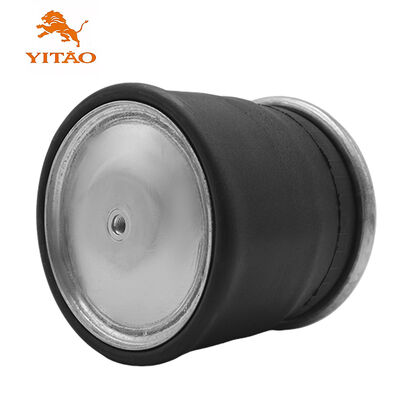

Product Images

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.
