6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063

6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063
6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063

Large Image :  6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 6146 1V
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063

Description
OE Number: W01-M58-8786,1T19L-14,4912NP07,60880,1R13-711,5.0.10.294.307B,1DK28F4,B13B40 OE No. 2: AS-16046,9518137110,5.010.294.307.C,MLF7063,131202,34912K
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Warranty: 1 Year
Condition: New Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Iron
Highlight:

Truck Air Spring for Phoenix 1DK28F4

,

Granning 16046 Air Spring replacement

,

Meritor MLF7063 Truck Air Spring

6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063
Product Overview

YITAO 6146 1V6 truck air spring is manufactured with reference to the specifications of Phoenix 1DK28F4/Granning 16046/Meritor MLF7063. This air spring can completely replace the original component, providing a comfortable and stable driving environment for your truck.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8786 / 1T19L-14 W01M588786 / 1T19L14 / :W01M588786 / :1T19L14
Contitech 4912NP07/60880 4912NP07 / 60880 / :4912NP07 / :60880
Goodyear 1R13-711 1R13711 / :1R13711
RVI 5.0.10.294.307B 5010294307B / :5010294307B
Phoenix 1DK28F4 :1DK28F4
Dunlop FR B13B40 :B13B40
Airtech 131202/34912K 131202 / 34912K / :131202 / :34912K
Granning 16046 :16046
WABCO 9518137110 :9518137110
Renault 5.010.294.307.C 5010294307C / :5010294307C
Meritor MLF7063 :MLF7063
Technical Specifications
Specifications Parameters
Natural height 792mm
Maximum height 775mm
Minimum height 267mm
Extended Height 790mm
Compressed Height 267MM
Top Plate Width 289mm
Piston Width 228mm
Outer diameter φ265
Weight To be dated
Package Dimensions To be dated
Product Drawing
6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 0
Delivery Information
Delivery Time Orders are typically shipped within 30 business days after payment is received
Packing Brown carton packing; we can also pack according to your requirements
Marks Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Method Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

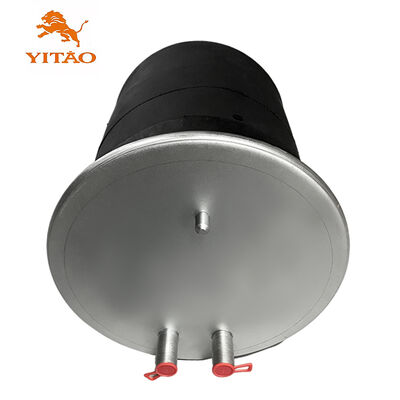

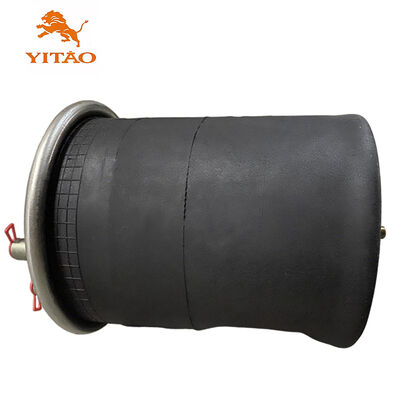

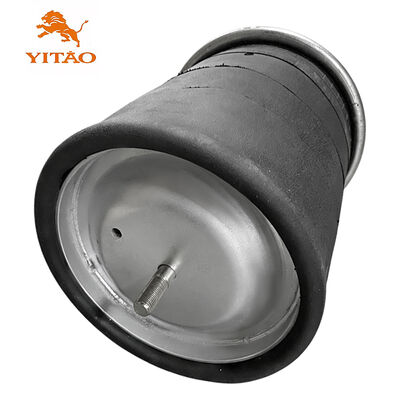

Product Images
6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 1 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 2 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 3 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 4 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 5 6146 1V Truck Air Spring Suitable for Phoenix 1DK28F4/Granning 16046/Meritor MLF7063 6
Images shown are for reference only. Actual product may vary slightly.
