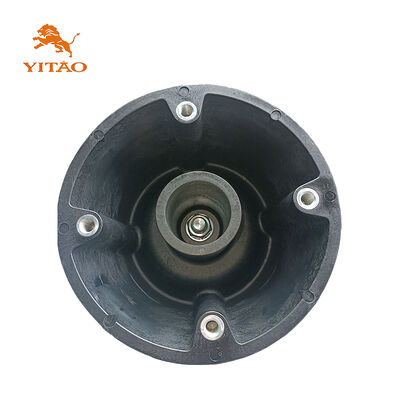

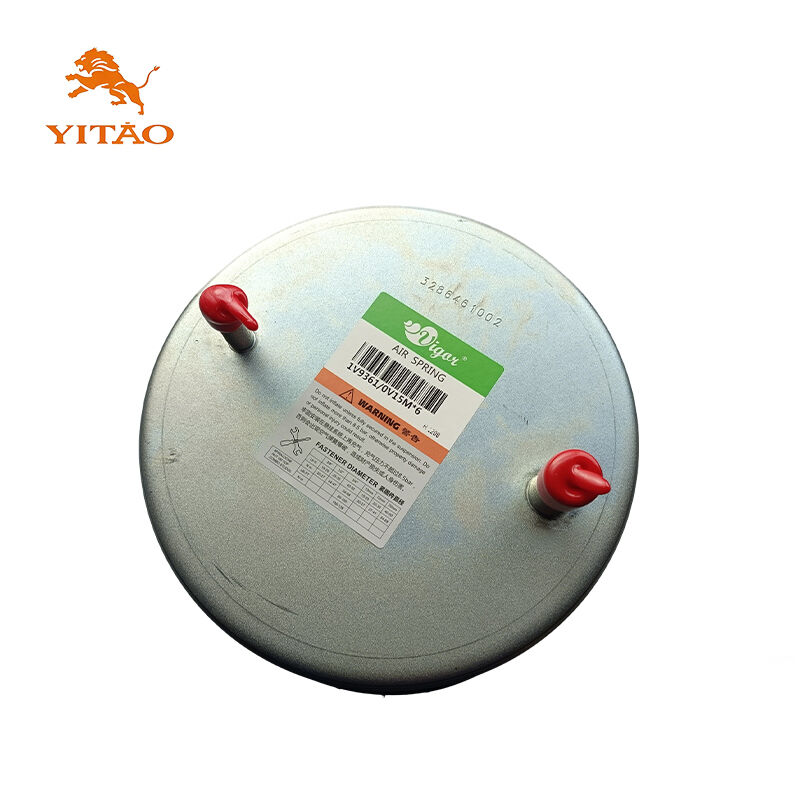

1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06

1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06
1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06 1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06

Large Image :  1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06

Product Details:
Place of Origin: China
Brand Name: YITAO / YICONTON / Vigor
Certification: IATF16949
Model Number: 1V 9361
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06

Description
OE Number: Neway 90557075 Aftermarket Cross References: Firestone W01-358-9361; Taurus KR-506-28; Phoenix 1DK21A-2; Goodyear 1R12-716; 566-24-3-502; Dunlop FR D12B16; ContiTech 4156NP06; Weweler US35864F; Airtech 130382; 34156KPP; Granning 15633; WABCO 9518127190
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 14 Months From Bill Of Lading (B/L) Date Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

1V 9361 truck air spring with warranty

,

Firestone 1T15M-6 compatible air spring

,

Contitech 4156NP06 replacement truck air spring

1V 9361 Truck Air Spring Suitable for Firestone 1T15M-6/Contitech 4156NP06
Product Overview

1V 9361 Truck Air Spring manufactured to specifications matching Firestone 1T15M-6/Contitech 4156NP06. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross Reference Numbers
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9361 W01 358 9361/W013589361/W01358-9361/W01-3589361/W01-358-9361
Firestone 1T15M-6 1T15M 6/1T15M6/1T15M-6
Goodyear 1R12-716 1R12 716/1R12716/1R12-716
Goodyear 566-24-3-502 566 24 3 502/566243502/566-24-3-502
Contitech 4156NP06 :4156NP06
Airtech 130382 / 34156KPP 130382 34156KPP/13038234156KPP/130382/34156KPP
Meritor(ROR) 21215761 / 21245762 / 21216135 / 21226046 :21215761 / :21245762 /: 21216135 / :21226046
Taurus KR-506-28 KR 506 28/KR50628/KR-506-28
Phoenix 1DK21A-2 1DK21A 2/1DK21A2/1DK21A-2
Dunlop FR D12B16 :D12B16
Neway 90557075 :90557075
Weweler US35864F :US35864F
Granning 15633 :15633
Pirelli 1T323-33 1T323 33/1T32333/1T323-33
WABCO 9518127190 :9518127190
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight To be updated
Package Dimensions 27*27*36cm
Natural height 565mm
Maximum height 545mm
Minimum height 198mm
Extended Height 625mm
Compressed Height 217mm
Top Plate Width 231mm
Piston Width 258mm
Product Documentation
1V 9361 Truck Air Spring technical drawing and specifications
Product Images
W01-358-9361 1R12-716 Truck Air Spring product photo Close-up view of truck air spring mounting points and connections Detailed shot of air spring rubber bellows and metal components Manufacturing quality inspection of truck air spring Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
