1V 9003 Truck Air Spring Suitable for Vibracoustic V1DK28F-3/Contitech 1D28F-3

Large Image : 1V 9003 Truck Air Spring Suitable for Vibracoustic V1DK28F-3/Contitech 1D28F-3

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9003

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 9003 Truck Air Spring Suitable for Vibracoustic V1DK28F-3/Contitech 1D28F-3

Description

OE Number:	W01-M58-8859,4159NP06,1R12-702,1DK21B-6,UJA0894-001	OE NO2:	21215762,21215891,21226039,UJB0203-001,MOO1782
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Iron

1V 9003 Truck Air Spring Suitable for Vibracoustic V1DK28F-3/Contitech 1D28F-3

1V 9003 Truck Air Spring Manufactured to specifications matching Vibracoustic V1DK28F-3/Contitech 1D28F-3, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Fiestone	W01-M58-6223	W01 M58 6223/W01M586223/W01M58-6223/W01-M586223/W01-M58-6223
Goodyear	1R14-823	1R14 823/1R14823/1R14-823
Vibracoustic	V1DK28F-3	V1DK28F 3/V1DK28F3/V1DK28F-3
Contitech	1D28F-3	1D28F 3/1D28F3/1D28F-3
BENZ	A9463281501	:A9463281501

Technical Specifications

Specifications	Parameters
Outer diameter	φ275
Weight	To be updated
Package Dimensions	To be updated
Natural height	696mm
Maximum height	680mm
Minimum height	225mm
Extended Height	688mm
Compressed Height	226mm
Top Plate Width	289mm
Piston Width	260mm

1V 9003 Truck Air Spring Drawing

1V 9003 Truck Air Spring Suitable for Vibracoustic V1DK28F-3/Contitech 1D28F-3 0

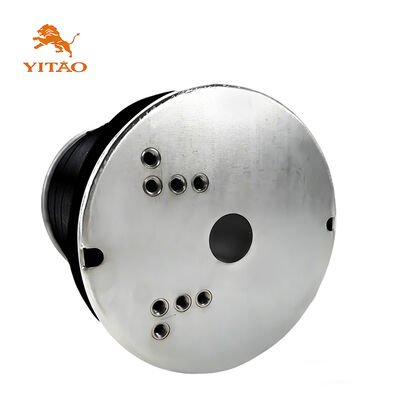

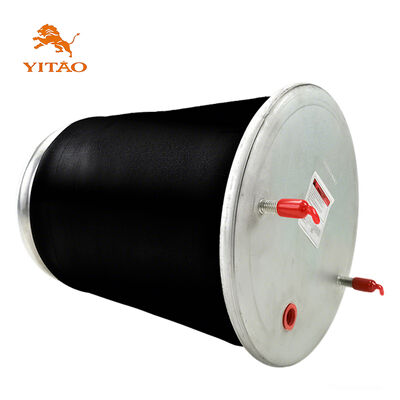

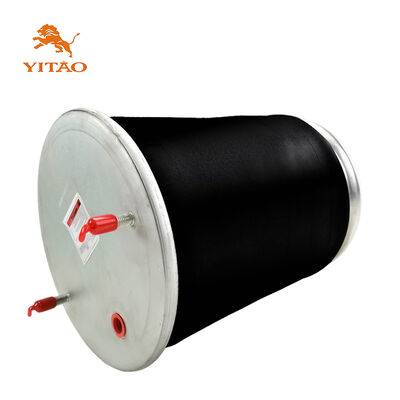

W01-M58-6223 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
