1V 8859 Truck Air Spring Suitable for Firestone W01-M58-8859/Phoenix 1DK21B-6

Large Image : 1V 8859 Truck Air Spring Suitable for Firestone W01-M58-8859/Phoenix 1DK21B-6

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8859

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8859 Truck Air Spring Suitable for Firestone W01-M58-8859/Phoenix 1DK21B-6

Description

OE Number:	W01-M58-8966,1T66F-10.8,881MB,BPW36,1R14-703,130522,3881-01K,05.429.40.08.1	OE NO2:	05.429.40.61.1,05.429.41.36.1,KR836-05,D14B36,14DK2-1,315917,1TC360-45,MLF7065,9518147120
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Aluminum

1V 8859 Truck Air Spring Suitable for Firestone W01-M58-8859/Phoenix 1DK21B-6

1V 8859 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8859/Phoenix 1DK21B-6, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8859	W01 M58 8859/W01M588859/W01M58-8859/W01-M588859/W01-M58-8859
Contitech	4159NP06	:4159NP06
Goodyear	1R12-702	1R12 702/1R12702/1R12-702
Phoenix	1DK21B-6	1DK21B 6/1DK21B6/1DK21B-6
Fruehauf	UJA0894-001	UJA0894 001/UJA0894001/UJA0894-001
SMB	UJB0203-001 / MOO1782	UJB0203 001 MOO1782/UJB0203001MOO1782/UJB0203-001/MOO1782
Meritor	21215762 / 21215891 / 21226039	21215762 21215891 21226039/212157622121589121226039/21215762/21215891/21226039

Technical Specifications

Specifications	Parameters
Outer diameter	φ255
Weight	9.426 kg
Package Dimensions	282837.5cm
Natural height	645mm
Maximum height	525mm
Minimum height	230mm
Extended Height	650mm
Compressed Height	234mm
Top Plate Width	231mm
Piston Width	260mm

1V 8859 Truck Air Spring Drawing

1V 8859 Truck Air Spring Suitable for Firestone W01-M58-8859/Phoenix 1DK21B-6 0

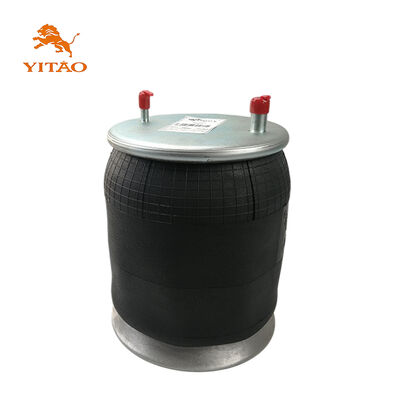

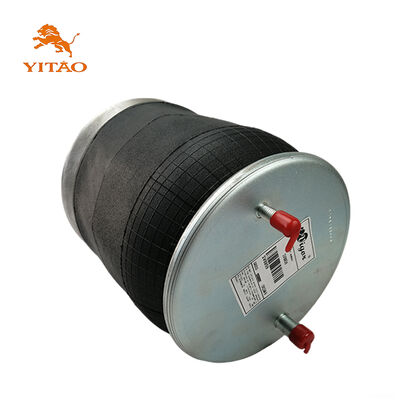

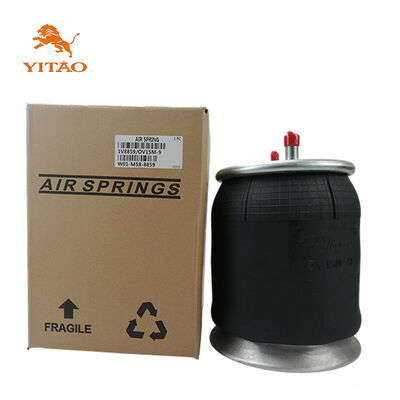

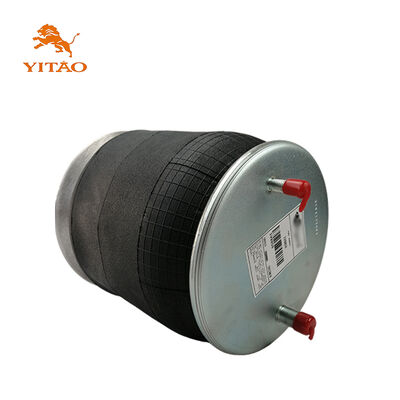

W01-M58-8859 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
