1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K

1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K
1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K

Large Image :  1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8966
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K

Description
OE Number: W01-M58-8859,4159NP06,1R12-702,1DK21B-6,UJA0894-001 OE NO2: 21215762,21215891,21226039,UJB0203-001,MOO1782
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Iron

1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K


1V 8966 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8966/Airtech 3881-01K, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8966 W01 M58 8966/W01M588966/W01M58-8966/W01-M588966/W01-M58-8966
Firestone 1T66F-10.8 1T66F 10.8/1T66F10.8/1T66F-10.8
Contitech 881MB/BPW36 881MB BPW36/881MBBPW36/881MB/BPW36
Goodyear 1R14-703 1R14 703/1R14703/1R14-703
Airtech 130522 / 3881-01K 130522 3881 01K/130522388101K/130522/3881-01K
BPW 05.429.40.08.1 / 05.429.40.61.1 / 05.429.41.36.1 05.429.40.08.1 / 05.429.40.61.1 / 05.429.41.36.1
Taurus KR836-05 KR836 05/KR83605/KR836-05
Dunlop FR D14B36 :D14B36
Phoenix 14DK32-1 14DK32 1/14DK321/14DK32-1
Granning 15917 :15917
Pirelli 1TC360-45 1TC360 45/1TC36045/1TC360-45
Meritor MLF7065 :MLF7065
WABCO 9518147120 :9518147120
Technical Specifications
Specifications Parameters
Outer diameter φ300
Weight 20.535 kg
Package Dimensions 33.5*33.5*35.5cm
Natural height 720mm
Maximum height 700mm
Minimum height 280mm
Extended Height 710mm
Compressed Height 250mm
Top Plate Width 315mm
Piston Width 250mm
1V 8966 Truck Air Spring Drawing

1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 0

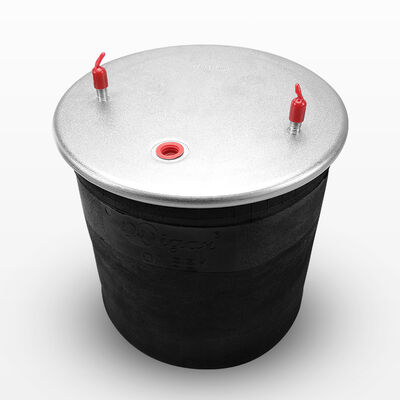

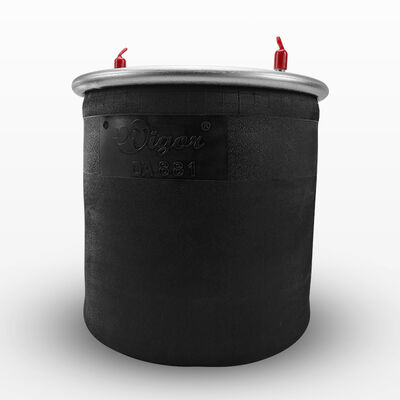

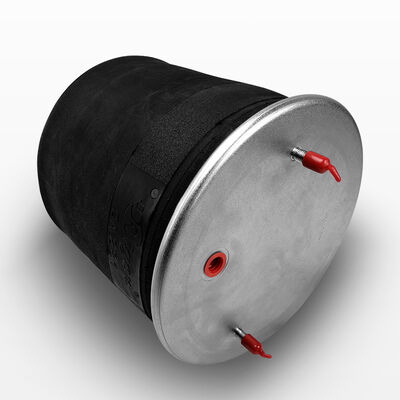

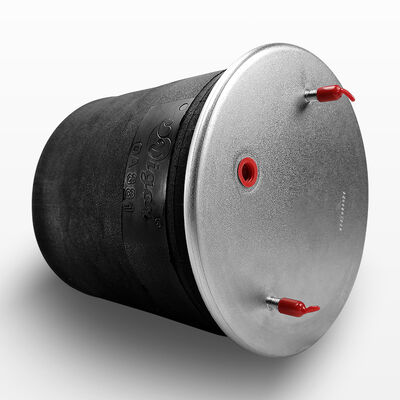

1R14-703   Truck Air Spring Real Pictures
1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 1
1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 2 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 3 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 4 1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K 5
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
