1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887

Large Image : 1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8852

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887

Description

OE Number:	W01-358-8852,1T15M-9,910-19P472,1R12-568,03-07887,137192,38852CPP,8472,6364	Type:	Truck Air Spring
Application:	For Truck Air Suspension	Packing:	Neutral Packing Or Customized Packing
Condition:	New	Warranty:	1 Year
Minimum Order Quantity:	50 Pieces	Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate
Material:	Rubber	Piston Material:	Plastic

1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887

1V 8852 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8852/Peterbilt 03-07887, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-8852	W01 358 8852/W013588852/W01358-8852/W01-3588852/W01-358-8852
Firestone	1T15M-9	1T15M 9/1T15M9/1T15M-9
Contitech	910-19P472	910 19P472/91019P472/910-19P472
Goodyear	1R12-568	1R12 568/1R12568/1R12-568
Peterbilt	03-07887	03 07887/0307887/03-07887
Airtech	137192 / 38852CPP	137192 38852CPP/13719238852CPP/137192/38852CPP
Triangle	8472 / 6364	8472 6364/84726364/8472/6364

Technical Specifications

Specifications	Parameters
Outer diameter	φ255
Weight	7.87 kg
Package Dimensions	282837.5cm
Natural height	603mm
Maximum height	583mm
Minimum height	170mm
Extended Height	597mm
Compressed Height	170mm
Top Plate Width	231mm
Piston Width	260mm

1V 8852 Truck Air Spring Drawing

1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887 0

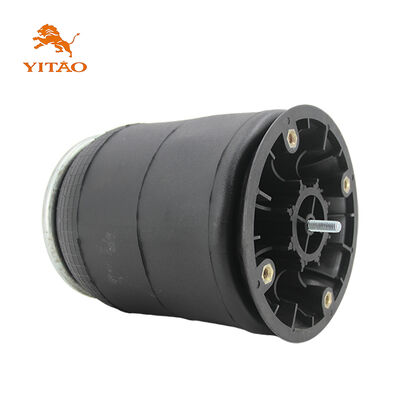

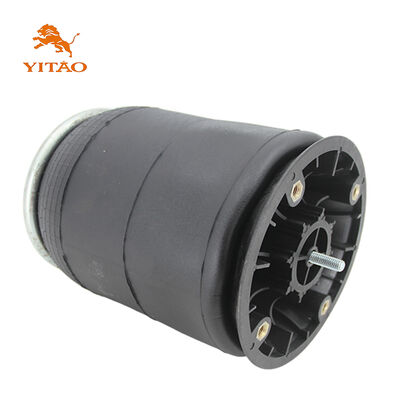

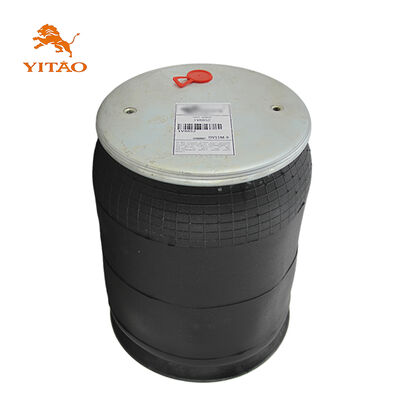

W01-358-8852 1R12-568 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
