1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045

1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045
1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045

Large Image :  1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8792
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045

Description
OE Number: W01-358-8792,1T19L-11,813MB,1R14-045,13-038,13-048,14-060 OE NO2: S3467,B-12514-008,B-12514-010,12883-02,P50-732,5006003,132112,39122C,90557020
OE NO3: 90557071,90557076,90557077,1003589122C,AS-0023,B3830 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Iron

1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045
1V 8792 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8792/Goodyear 1R14-045, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8792 W01 358 8792/W013588792/W01358-8792/W01-3588792/W01-358-8792
Firestone 1T19L-11 1T19L 11/1T19L11/1T19L-11
Contitech 813MB :813MB
Goodyear 1R14-045/13-038 1R14 045 13 038/1R1404513038/1R14-045/13-038
Goodyear 13-048/14-060 13 048 14 060/1304814060/13-048/14-060
Triangle 1003589122C :1003589122C
Watson&Chalin AS-0023 AS 0023/AS0023/AS-0023
Hendrickson B3830/S3467 / B-12514-008 / B-12514-010 B3830 S3467 B 12514 008 B 12514 010/B3830S3467B12514008B12514010/B3830/S3467/B-12514-008/B-12514-010
Reyco 12883-02 12883 02/1288302/12883-02
Sauer P50-732 P50 732/P50732/P50-732
Tec 5006003 :5006003
Airtech 132112 / 39122C 132112 39122C/13211239122C/132112/39122C
Neway 90557020 / 90557071 / 90557076 / 90557077 90557020 90557071 90557076 90557077/90557020905570719055707690557077/90557020/90557071/90557076/90557077
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 13.355 kg
Package Dimensions 29*29*42
Natural height 696mm
Maximum height 680mm
Minimum height 226mm
Extended Height 680mm
Compressed Height 220mm
Top Plate Width 289mm
Piston Width 260mm
1V 8792 Truck Air Spring Drawing

1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 0

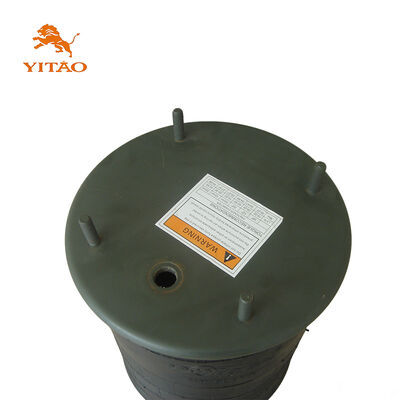

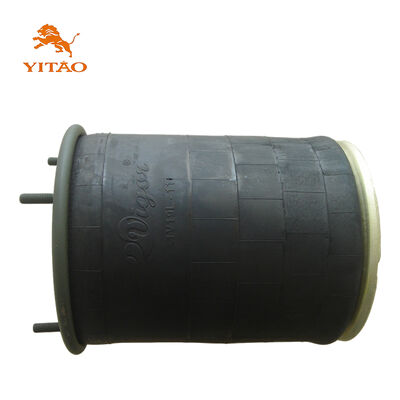

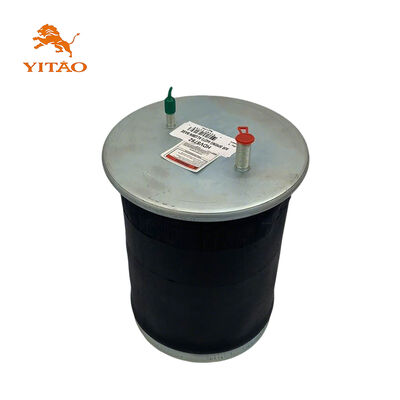

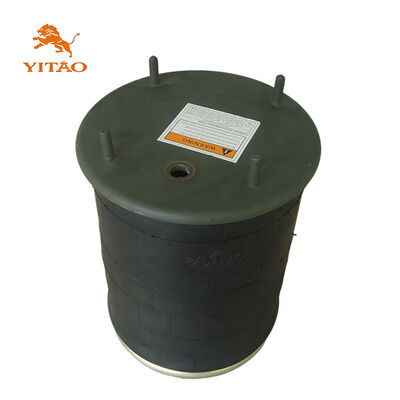

1R14-045 B-12514-008  Truck Air Spring Real Pictures
1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 1
1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 2 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 3 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 4 1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045 5
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
