1V 8787SA Truck Air Spring Suitable for Firestone W01-M58-5520/Phoenix 1DK28F-6

Large Image : 1V 8787SA Truck Air Spring Suitable for Firestone W01-M58-5520/Phoenix 1DK28F-6

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8787SA

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8787SA Truck Air Spring Suitable for Firestone W01-M58-5520/Phoenix 1DK28F-6

Description

OE Number:	4912NP13,W01-M58-5520,1T19LL-14,21978504,20726768	OE NO2:	6.13013,1DK28F-6,39907,084.118-73A,25372795,5010600328
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	To Be Updated

1V 8787SA Truck Air Spring Suitable for Firestone W01-M58-5520/Phoenix 1DK28F-6

1V 8787SA Truck Air Spring Manufactured to specifications matching Firestone W01-M58-5520/Phoenix 1DK28F-6, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Contitech	4912NP13	:4912NP13
FIRESTONE	W01-M58-5520	W01 M58 5520/W01M585520/W01M58-5520/W01-M585520/W01-M58-5520
FIRESTONE	1T19LL-14	1T19LL 14/1T19LL14/1T19LL-14
VOIVO	21978504 / 20726768	21978504 20726768/2197850420726768/21978504/20726768
VOIVO	25372795	:25372795
AIRTECH	50 10 600 328	5010600328/50 10 600 328
DT	6.13013	6.13013
Phoenix	1DK28F-6	1DK28F 6/1DK28F6/1DK28F-6
FEBI BILSTEIN	39907	:39907
PETERS ENNEPETAL	084.118-73A	084.118 73A/084.11873A/084.118-73A

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	To be updated
Package Dimensions	To be updated
Natural height	607.5mm
Maximum height	To be updated
Minimum height	To be updated
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	289mm
Piston Width	To be updated

1V 8787SA Truck Air Spring Drawing

1V 8787SA Truck Air Spring Suitable for Firestone W01-M58-5520/Phoenix 1DK28F-6 0

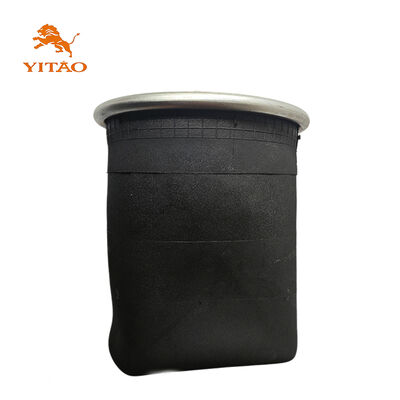

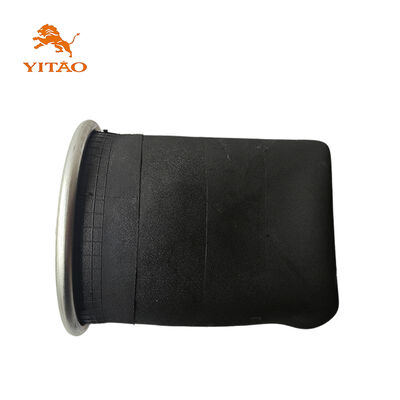

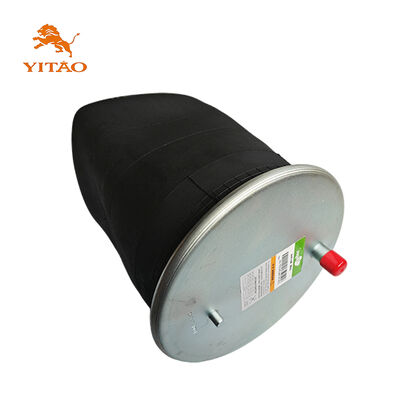

W01-M58-5520 21978504 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
