1V 9122 Truck Air Spring Suitable for Contitech 4811N03/Goodyear 1R13-038/Firestone W01-358-9122

Large Image : 1V 9122 Truck Air Spring Suitable for Contitech 4811N03/Goodyear 1R13-038/Firestone W01-358-9122

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9122

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 9122 Truck Air Spring Suitable for Contitech 4811N03/Goodyear 1R13-038/Firestone W01-358-9122

Description

OE Number:	W01-358-9122,4811N03,1R13-038,90557020,90557071,90557076,90557077	OE NO2:	12883-02,5006003,P50-732,1003589122C,AS-0023,B3830,S3467,B-12514-008,B-12514-010
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Plastic
Highlight:	1V 9122 truck air spring , truck air spring with warranty , Contitech 4811N03 compatible air spring

1V 9122 Truck Air Spring

Suitable for Contitech 4811N03/Goodyear 1R13-038/Firestone W01-358-9122

Product Overview

Manufactured to specifications matching Contitech 4811N03/Goodyear 1R13-038/Firestone W01-358-9122, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9122	W01 358 9122/W013589122/W01358-9122/W01-3589122/W01-358-9122
Contitech	4811N03	:4811N03
Goodyear	1R13-038	1R13 038/1R13038/1R13-038
Neway	90557020/90557071/90557076/90557077	90557020 90557071 90557076 90557077/90557020905570719055707690557077/90557020/90557071/90557076/90557077
Reyco	12883-02	12883 02/1288302/12883-02
Tec	5006003	:5006003
Sauer	P50-732	P50 732/P50732/P50-732
Triangle	1003589122C	:1003589122C
Watson&Chalin	AS-0023	AS 0023/AS0023/AS-0023
Hendrickson	B3830/S3467/B-12514-008/B-12514-010	B3830 S3467 B 12514 008 B 12514 010/B3830S3467B12514008B12514010/B3830/S3467/B-12514-008/B-12514-010

Technical Specifications

Specifications	Parameters
Outer diameter	φ275
Weight	5 kg
Package Dimensions	303043.5 cm
Natural height	696mm
Maximum height	680mm
Minimum height	227mm
Extended Height	660mm
Compressed Height	240mm
Top Plate Width	289mm
Piston Width	263mm

Product Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.

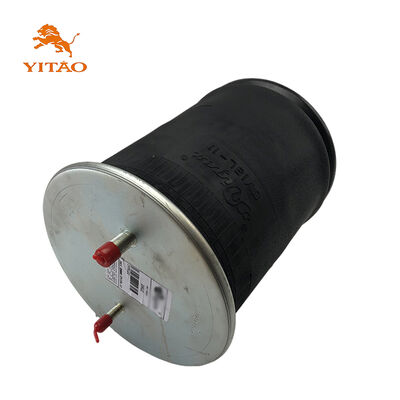

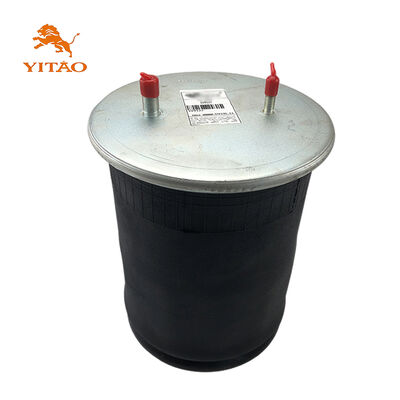

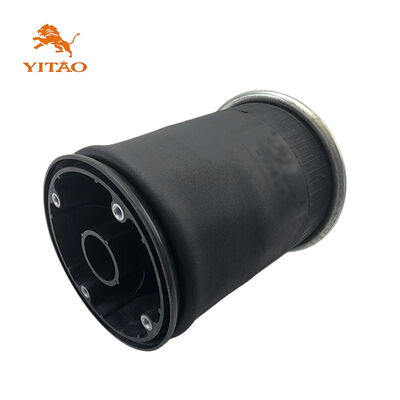

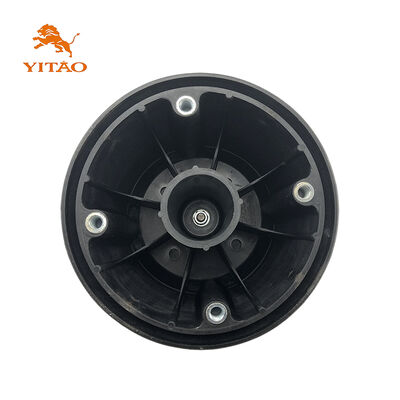

Product Images

Images shown are for reference only. Actual product may vary slightly.
