1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250

1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250
1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250

Large Image :  1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9101
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250

Description
OE Number: W01-358-9101,1R12-717,4159NP12,AS-504-9101,139275-4 OE NO2: TRL-250,63.647,8315,AS-0040,B3842,90557082
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Aluminum
Highlight:

1V 9101 truck air spring

,

Goodyear 1R12-717 air spring

,

Toyo TRL-250 truck suspension

1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250
1V 9101 Truck Air Spring manufactured to specifications matching Goodyear 1R12-717/Toyo TRL-250. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9101 W01 358 9101/W013589101/W01358-9101/W01-3589101/W01-358-9101
Goodyear 1R12-717 1R12 717/1R12717/1R12-717
Contitech 4159NP12 :4159NP12
Taurus AS-504-9101 AS 504 9101/AS5049101/AS-504-9101
E.R.F 139275-4 139275 4/1392754/139275-4
Neway 90557082 :90557082
Toyo TRL-250 TRL 250/TRL250/TRL-250
Truckstell 63.647 63.647
Triangle 8315 :8315
Watson&Chalin AS-0040 AS 0040/AS0040/AS-0040
Hendrickson B3842 :B3842
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 9.265 kg
Package Dimensions 28*28*37.5 cm
Natural height 645mm
Maximum height 625mm
Minimum height 248mm
Extended Height 400mm
Compressed Height 188mm
Top Plate Width 231mm
Piston Width 260mm
1V 9101 Truck Air Spring Drawing
1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

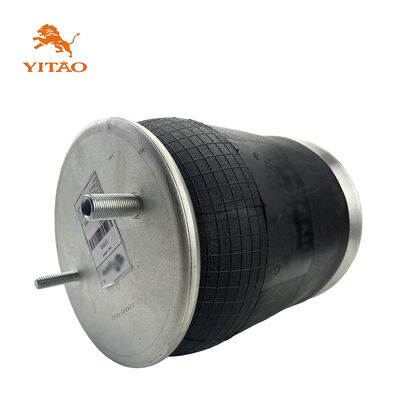

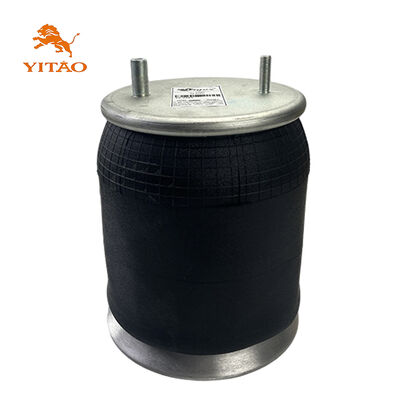

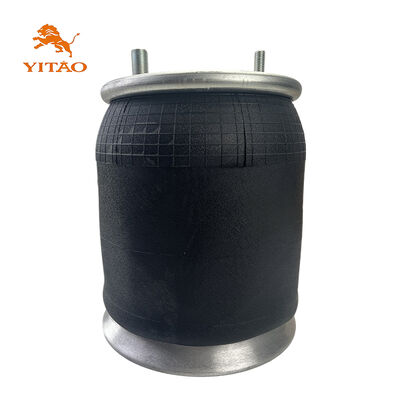

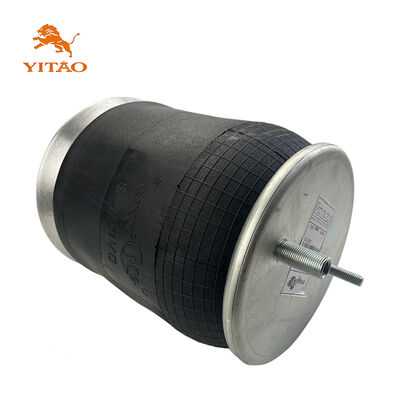

W01-358-9101 Truck Air Spring Real Pictures
1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 1 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 2 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 3 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 4 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 5 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 6 1V 9101 Truck Air Spring Suitable for Goodyear 1R12-717/Toyo TRL-250 7
Images shown are for reference only. Actual product may vary slightly.
